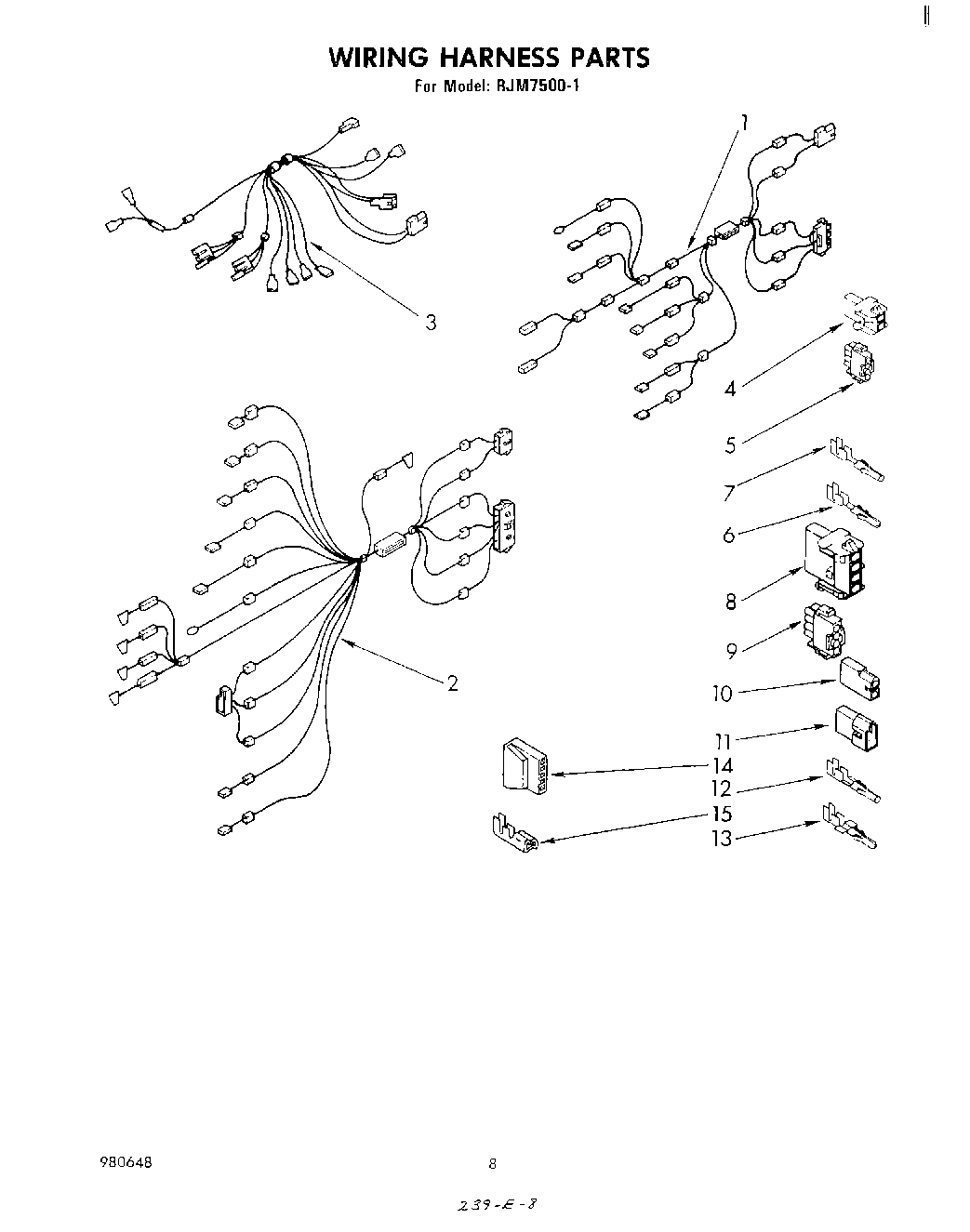

RJM75001 06 – WIRING HARNESSadmin2025-04-26T12:08:06+00:00RJM75001 06 – WIRING HARNESS
Products
| Position | Product |
|---|
| 1 | harness, main |
| 2 | Harness, Control |
| 3 | Harness, Interlock |
| 4 | cap, terminal (uses 310222 or 310223 pin terminal) |
| 5 | plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal) |
| 6 | Harness, Wiring (Connector (11)) |
| 7 | Harness, Wiring (Connector (6)) |
| 8 | Disconnect Block, Female |
| 9 | Disconnect Block (4 Terminal) |
| 10 | Receptacle, Latching (2-Way) (Uses Terminal 94614) |
| 11 | WP717253 Whirlpool Dishwasher Connector |
| 12 | WP94614 Whirlpool Terminal |
| 13 | WP596797 Whirlpool Terminal |
| 14 | Block, Terminal |
| 15 | Receptacle |
