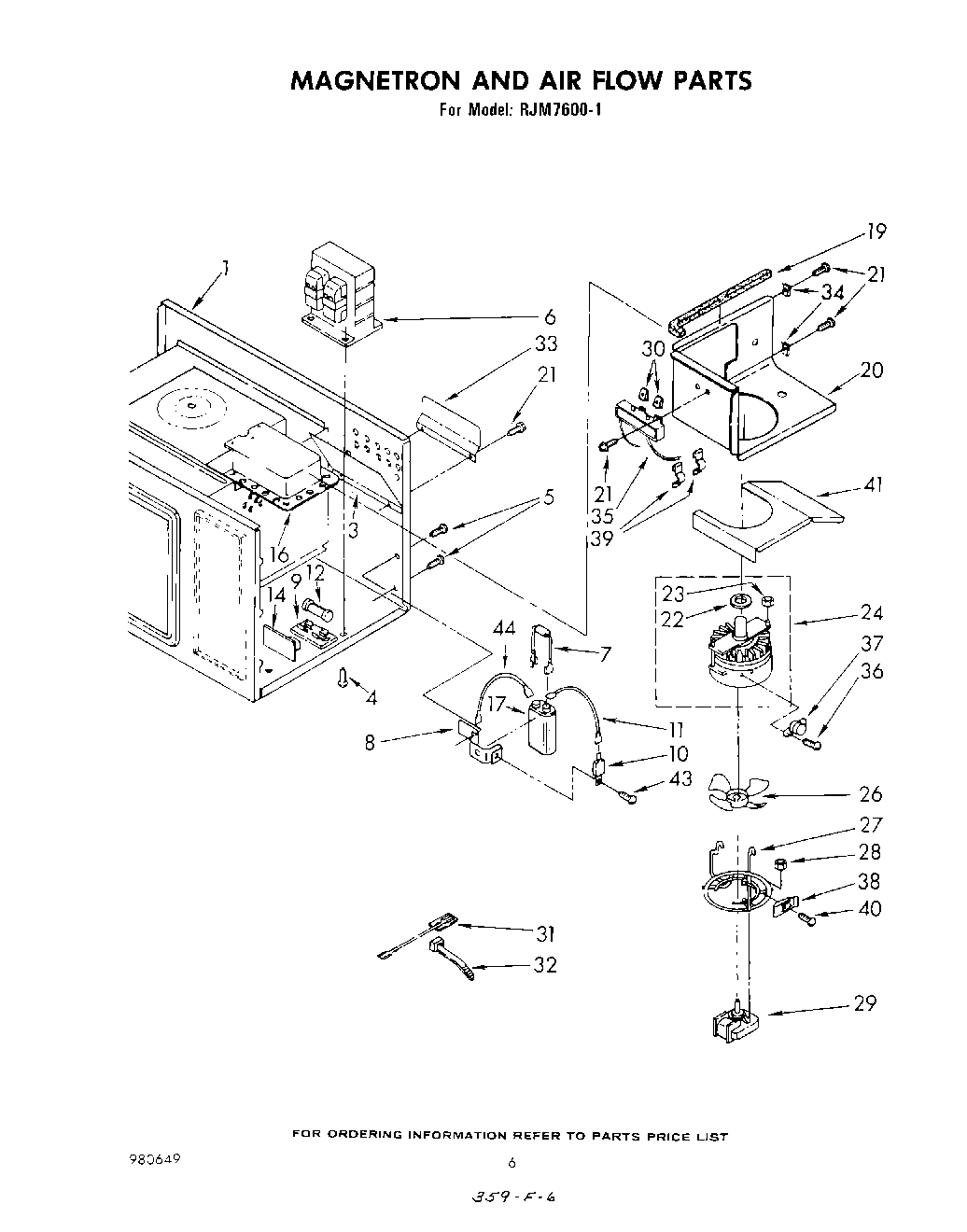

RJM76001 04 – MAGNETRON AND AIRFLOW

RJM76001 04 – MAGNETRON AND AIRFLOW

Written by

in

RJM76001 04 – MAGNETRON AND AIRFLOW

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
3Deflector, Air
4Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5Main Chassis (Screw, 10-32 x 1/2)
6Transformer
7resistor (2 watt 10m ohm)
8Bracket, Capacitor
9Block, Fuse
10Rectifier, High Voltage
11WPL 311466
12WPW10017410 Whirlpool Fuse
14Shield, Fuse
16Guide, Wave (Riveted At Assembly, Not Serviceable)
17Cabinet Side (Left)
17Cabinet Side (Right)
19WP854334 Whirlpool Air Conditioner Sealing Strip
20Duct, Cooling Air
21WP965173 Whirlpool Dishwasher Screw
22gasket, magnetron
23Flange Nut (4)
24magnetron (alternate)
24Magnetron (Alternate)
26Blade, Fan
27mount, fan motor
28Nut
29Motor Fan (Alternate)
29Motor, Fan (Alternate)
30Clip (4)
31Wire, High Voltage (Capacitor)
32WPW10339879 Whirlpool Wire Tie
33Deflector, Exhaust
34Clip (2)
35Reed Relay (Alternate)
35Relay, Reed
37Thermostat
38fastener, speed nut
398528351 Whirlpool Clip
40SCREW
41Spacer (2 Req)
43WPL 310629
44WPL 311467
