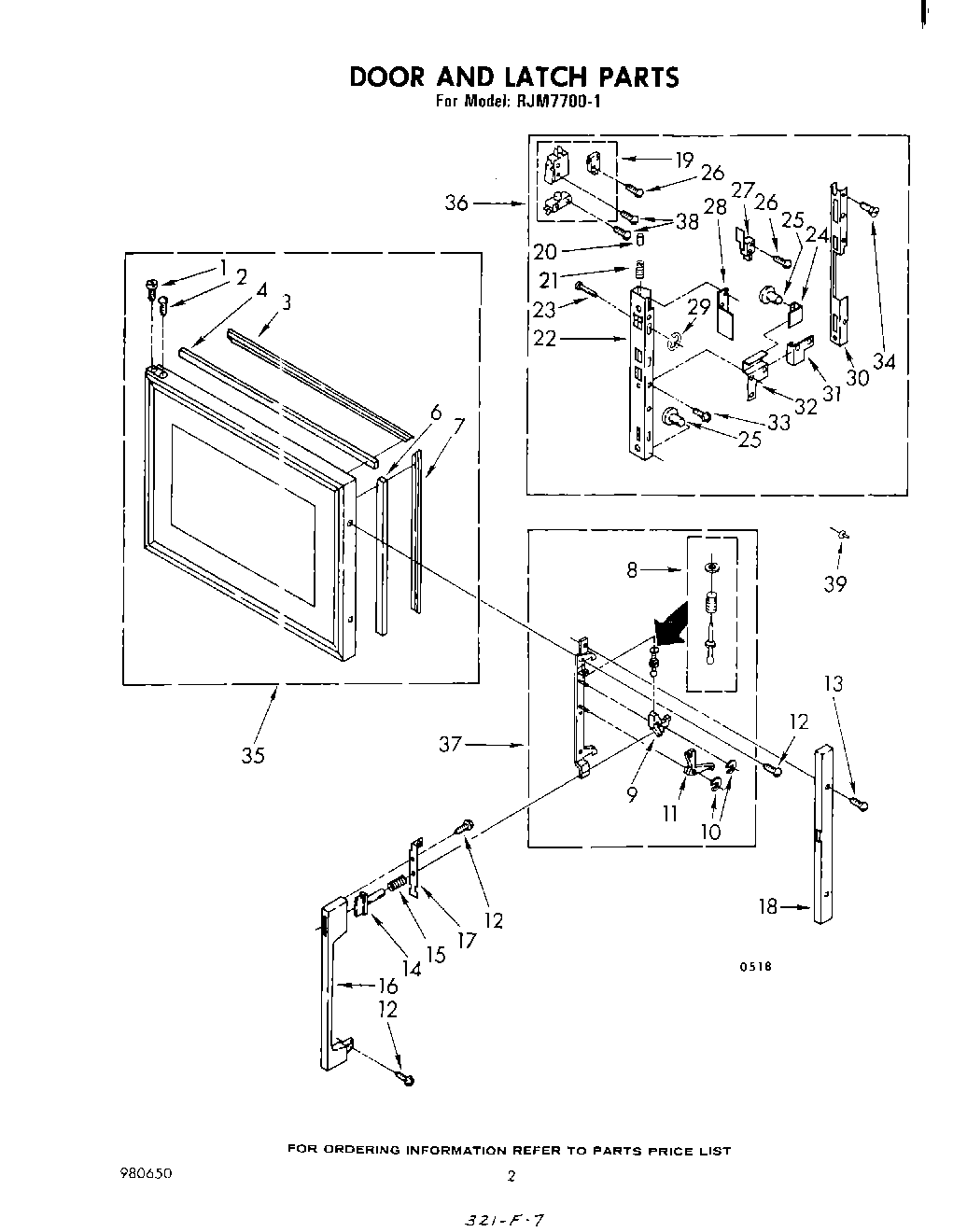

RJM77001 02 – DOOR AND LATCH

Products

Position	Product
1	WPW10068250 Whirlpool Dishwasher Screw
3	Retainer, Top & Bottom Seals (2)
4	Seal, Top & Bottom (2) (Alternate)
4	Seal, Top & Bottom (2) (Alternate)
6	Seal, Sides (Alternate)
6	Seal, Sides (Alternate)
7	Retain, Side Seal (2)
8	plunger, latch
9	Cam
10	WPL 310386
11	WPL 310120
12	WP489128 Whirlpool Refrigerator Screw
13	Screw, 8-32 x 5/16 (2)
14	Button, Door Handle
15	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
16	Handle, Door
17	Bracket, Door Handle
18	End Cap, Door
19	switch kit, door (kit contains primary, monitor & secondary switches. All 3 switchs must be replace
20	WPL 310124
21	Rear Top Burner-Rt. or Lt. (Inc`s. 32 & 33)
22	Guide, Interlock (Not a Serviceable Part)
23	Pin, Roller (2)
24	Foam Strip 14“ x 3/8“ x 1/2“xxx
25	WPL 310951
26	Screw, 4-40 x 10 (2)
27	Switch, Light
28	WPL 310154
29	Ring, Retaining (2)
30	Slide, Interlock (Not a Serviceable Part)
31	Insulator, Switch (Top)
32	Bracket, Primary Switch
33	WPL 310629
34	WPL 309080
35	door, complete
36	WPL 328655
37	Latch, Door
38	Screw
39	Rivet, Pop (3)
