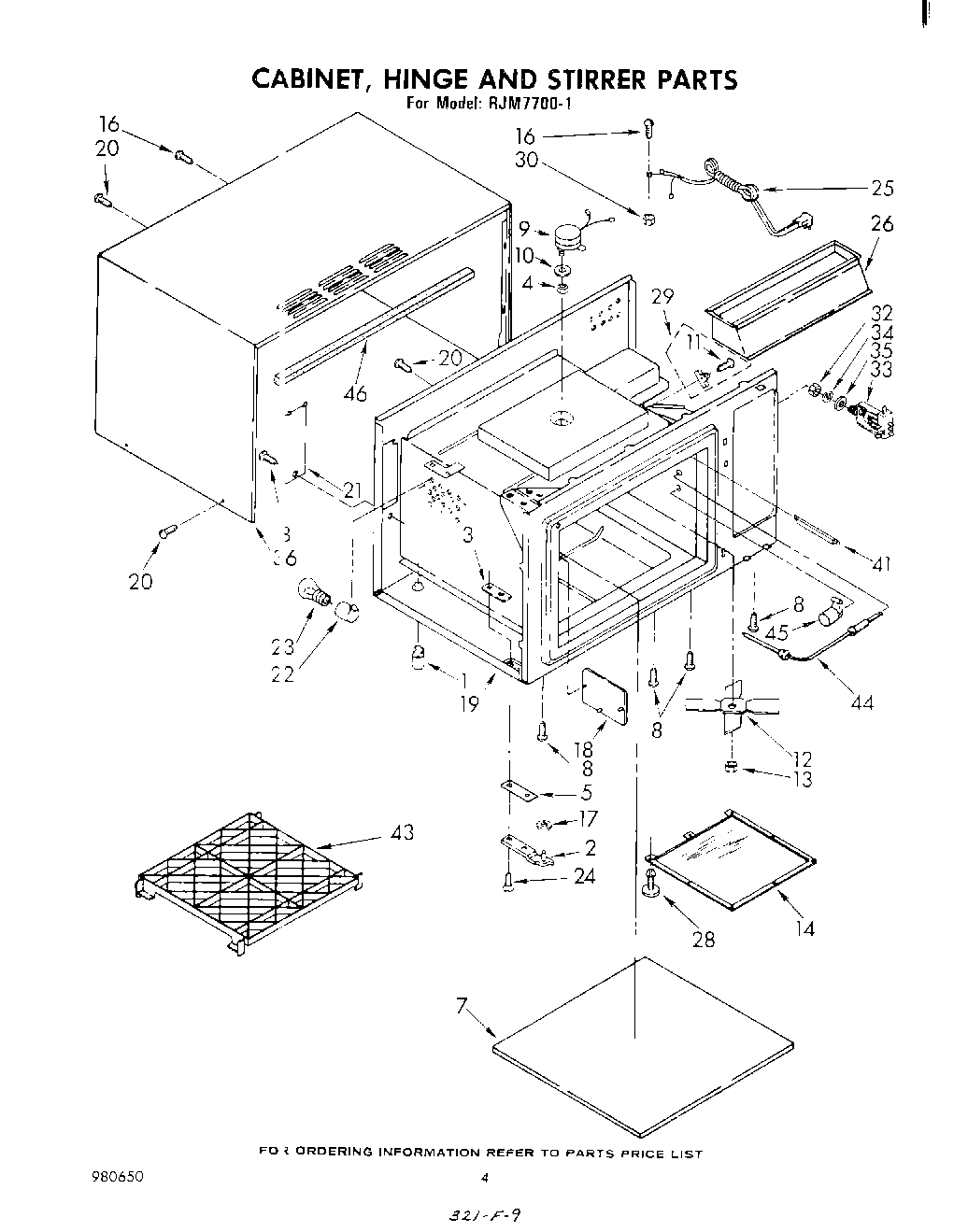

RJM77001 03 – CABINET, HINGE, AND STIRRER , LITERATURE

RJM77001 03 – CABINET, HINGE, AND STIRRER , LITERATURE

Written by

in

RJM77001 03 – CABINET, HINGE, AND STIRRER , LITERATURE

Products

PositionProduct
1Foot, Mounting
2hinge door (bottom)
2hinge door (top)
3Plate, Hinge (2) (Top & Bottom)
4Nut
5Hinge, Shim Locking (2)
7Shelf, Microwave (Alt.)
7Base, Ceramic (Install W/Silastic No. 482338)
8panel, top (screw, 10a x 3/8 (3))
9Motor, Stirrer (Alternate)
9motor, stirrer (alternate)
11Screw
12Stirrer Blade
13Nut, Hex (1/4-20)
14Cover, Stirrer
16Main Chassis (Screw, 10-32 x 1/2)
17Washer
18Shield, Exhaust Probe
19Base & Cavity Assembly (Not Serviceable)
20Screw, 10A x 1/2 (2) (Black)
21Cover, Lamp
22Socket, Snap-In
23RANGE ONLY 40W 120V APPL BULB
24screw, oval head (4)
25Cord, Power (Alternate)
25cord, power (alternate)
26Baffle, Air Exhaust
28Fastener (2)
29Fuse, Thermal
30Hex Nut, 10-32 (2)
32Nut, Probe Flange
33Jack, Probe
34Washer, Internal Lock
35Washer
36Wrapper, Cabinet
41Cover, Rivet
43rack, oven
44temperature probe (alternate)
44temperature probe (alternate)
45Support, Shelf (4)
46242831 Whirlpool Oven Wire
46WP261869 Whirlpool Microwave Paint
46WPL 311596
46Wire (14 Ga. 150 c Green)
46WPL 308295
46Wire (14 Ga. 150 c Blue)
46WP482338 Whirlpool Refrigerator Adhesive
46Wire, 25“ Roll (White 14 GA.)
46Pilot Cup (3 Req)
46Wire, 25` Roll (Red 14 Ga.)
46WPL 311489
46WPL 980650
46Wire, 25` Roll (Black 14 Ga.)
46Wire (14 Ga. 150 c Orange)
46Wire (14 Ga. 150 c Yellow)
46WPL 832763
46WPL 307843
46WPL 261940
46WPL 308294
46WPL 328022
46261900 Whirlpool Microwave Spray
46WPL 832765
46Wire (14 Ga. 150 c Brown)
46WPL 832769
46WPL 310848
46WPL 591014
46WPL 832790
461
46WPL 832810
46Wire (14 Ga. 200 c Brown)
4618 Ga. 80~c Rating (Red)
46Wire (12 Ga. 150 c Black)
46Spacer-Oven Door Glass (Lt. or Rt.)
