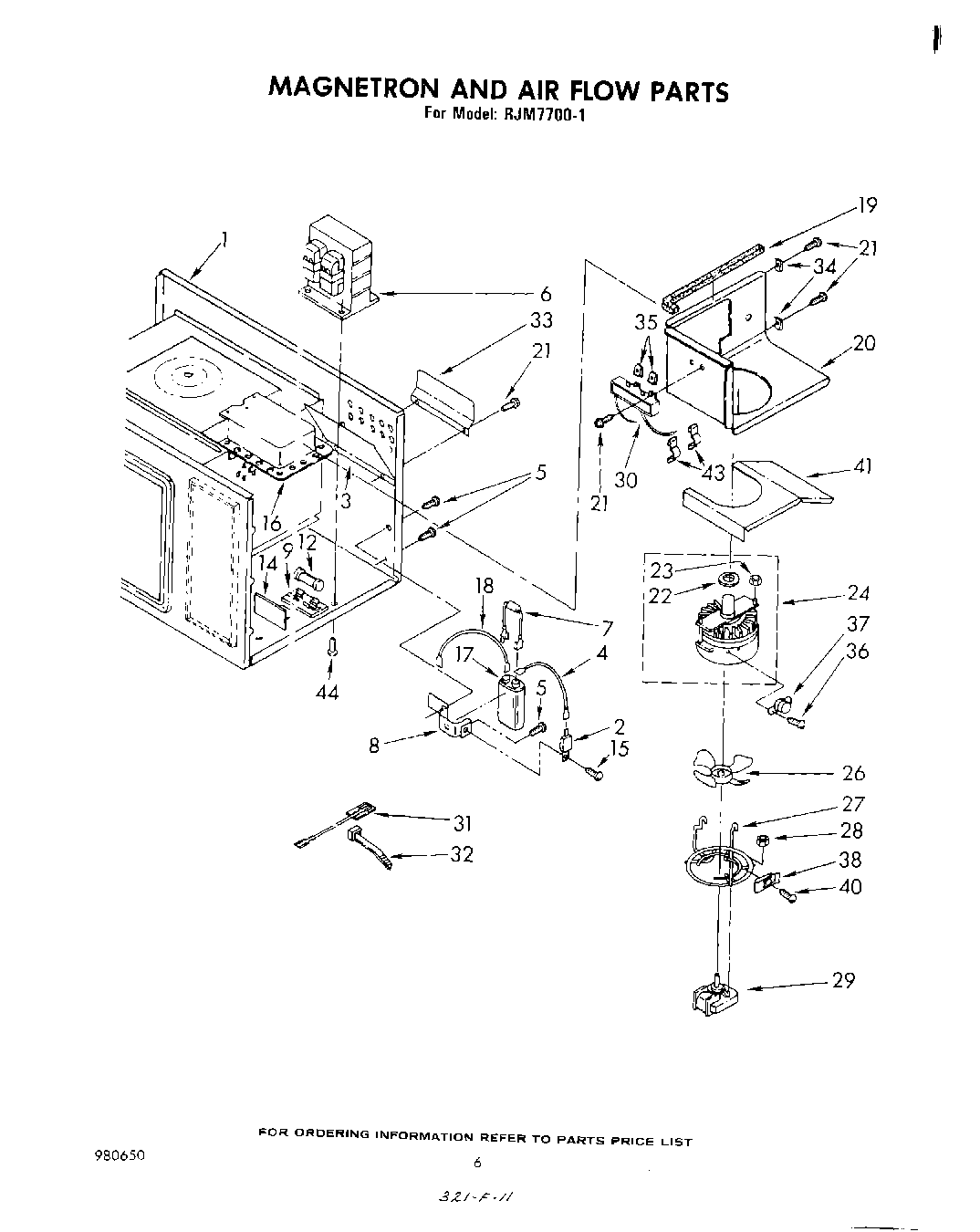

RJM77001 04 – MAGNETRON AND AIR FLOW

RJM77001 04 – MAGNETRON AND AIR FLOW

Written by

in

RJM77001 04 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Rectifier, High Voltage
3Deflector, Air
4WPL 311466
5Main Chassis (Screw, 10-32 x 1/2)
6Transformer
7resistor (2 watt 10m ohm)
8Bracket, Capacitor
9Block, Fuse
12WPW10017410 Whirlpool Fuse
14Shield, Fuse
15WPL 310629
16Guide, Wave (Riveted At Assembly, Not Serviceable)
17Cabinet Side (Left)
17Cabinet Side (Right)
18WPL 311467
19WP854334 Whirlpool Air Conditioner Sealing Strip
20Duct, Cooling Air
21WP965173 Whirlpool Dishwasher Screw
22gasket, magnetron
23Flange Nut (4)
24Magnetron (Alternate)
24magnetron (alternate)
26Blade, Fan
27mount, fan motor
28Nut
29Motor Fan (Alternate)
29Motor, Fan (Alternate)
30Reed Relay (Alternate)
30Relay, Reed
31Wire, High Voltage (Capacitor)
32WPW10339879 Whirlpool Wire Tie
33Deflector, Exhaust
34Clip (2)
35Clip (4)
36Screw
37Thermostat
38fastener, speed nut
40SCREW
41Spacer (2 Req)
438528351 Whirlpool Clip
44Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
