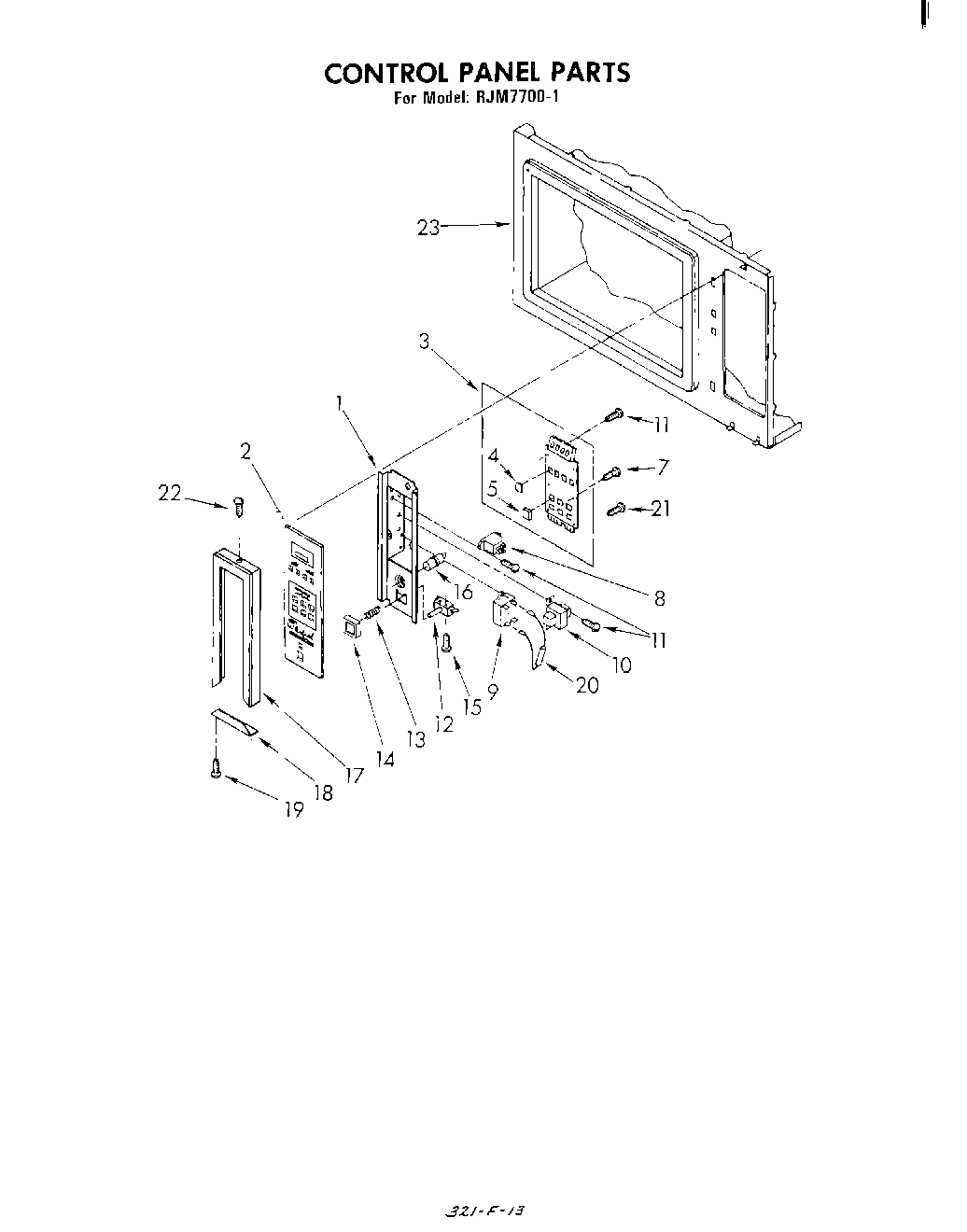

RJM77001 05 – CONTROL PANEL

Products

Position	Product
1	Bracket, Control
2	Panel, Control
3	Microcomputer
4	Button, Small
5	Button, Large
7	Screw, 6-18 x 3/8 (6)
8	relay power (12 v.d.c.) (alternate)
8	relay power (12 v.d.c.) (alternate)
9	Relay, Latching
10	Transformer, Control
11	WP486754 Whirlpool Compactor Screw
12	Switch, Push-To-Start
13	Spring, Compression
14	Button, Push To Start
15	Screw
16	Light, Indicator (On)
17	Frame, Control Panel
18	End Cap, Control Panel
19	Screw, 8-18BT x .88 (2)
20	resistor, power (3 ohm)
21	Screw, 80 x 5/16
22	WP488627 Whirlpool Refrigerator Screw
