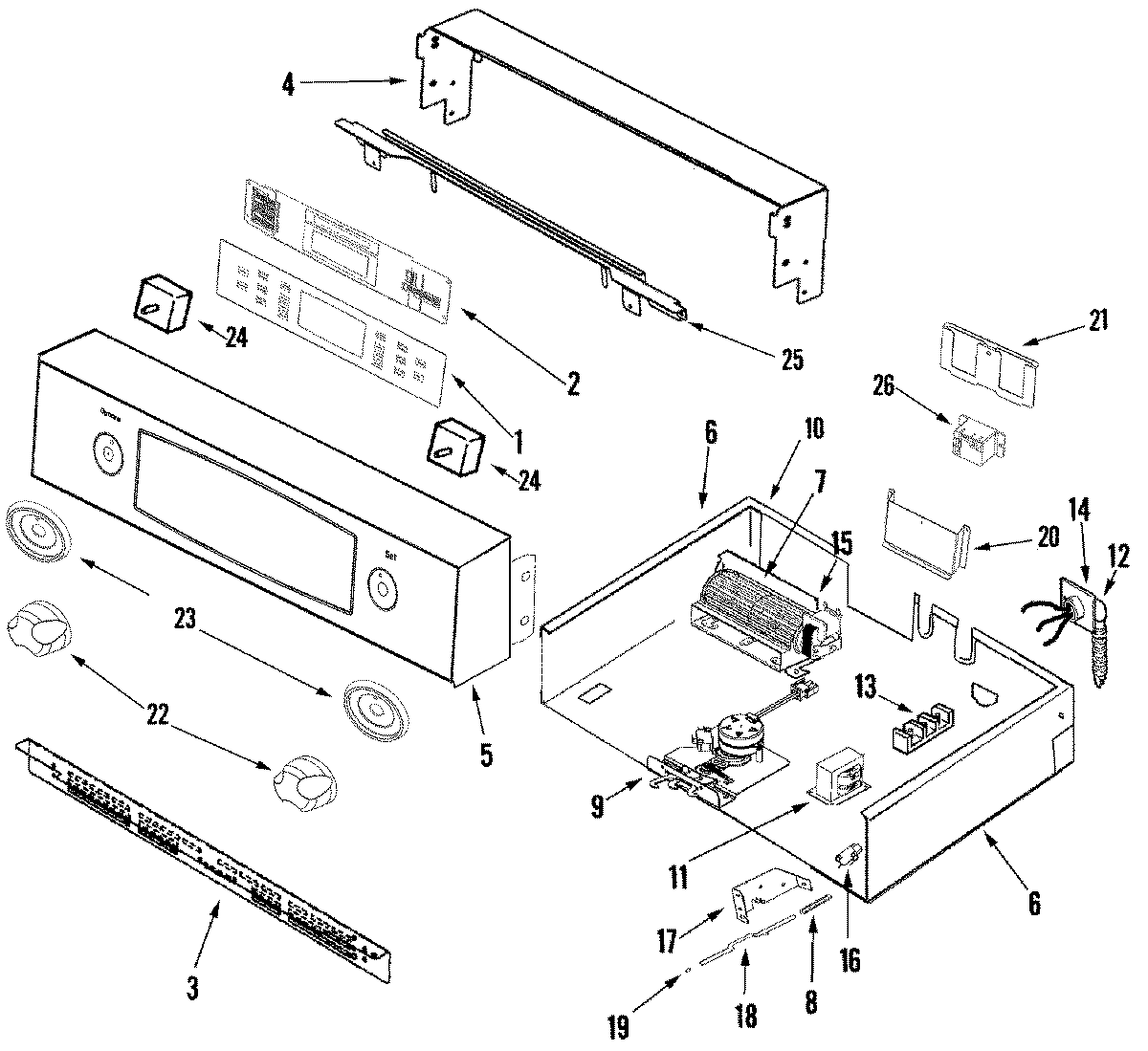

RJSO2701A 02 – CONTROL PANEL/INTERNAL CONTROLS

RJSO2701A 02 – CONTROL PANEL/INTERNAL CONTROLS

Written by

in

RJSO2701A 02 – CONTROL PANEL/INTERNAL CONTROLS

Products

PositionProduct
1MAY 74010539
2MAY 74010509
3MAY 74008509
4MAY 74010408
5MAY 74010533
6MAY 74008360
6MAY 74008359
7WP74008383 Whirlpool Tangential Fan
9WPW10186996 Whirlpool Door Latch
9WPY706189 Whirlpool Stove Screw
10MAY 74010407
11MAY 74005456
12MAY 74004735
12WP71001171 Whirlpool Screw
13KIT, HARDWARE ADAPTER
13WP7103P027-60 Whirlpool Nut
13WPW10245259 Whirlpool Terminal Block
14MAY 74010514
15MAY 74008343
16MAY 7101P330-60
16WP74008263 Whirlpool Door Switch
16MAY 74008264
17BRACKET, SWITCH ACTUATOR
18ROD, DOOR LIGHT SWITCH
19MAY 74011317
20MAY 74010510
21WP90767 Whirlpool Screw
21SCREW
21MAY 74010511
22MAY 74010491
23MAY 74010492
24MAY 74008488
24MAY Y704977
25MAY 74010500
26MAY 74010517
