RK524GP1

RK524GP1

Written by

in

RK524GP1

Products

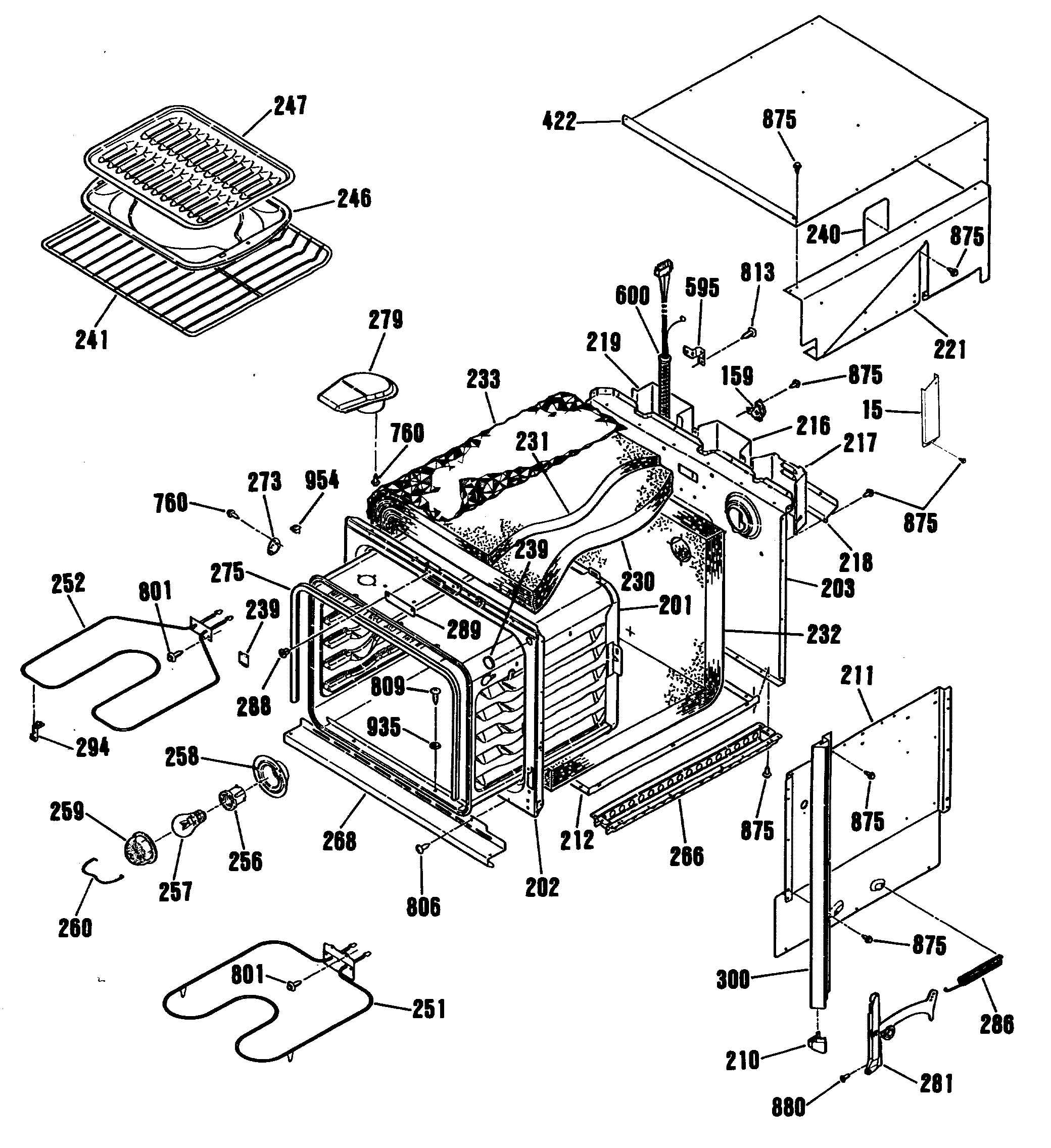

Position	Product
1	GEN WB36K5106
2	GEN WB36K5102
2	GEN WB36K5101
5	THERMOSTAT
15	WIRE COVER-MEAT PROBE
16	CLOCK DCO
18	GEN WB57K5045
21	WB24K5035 GE Oven Rocker Switch
30	WB3X5699 GE Oven Timer Knob Kit
33	WB25T10039 GE Oven Light Indicator
34	LENS
35	GEN WB22X5134
36	GEN WB07K5038
36	GEN WB07K5037
40	KNOB SEL SWITCH
49	GEN WB11X0008
83	GEN WB09K5008
88	THMST KNOB-BLK
102	WB35K5054 GE Oven Door Insulation
111	GEN WB55K5016
113	GEN WB02K5127
121	GEN WB57K5087
124	OVEN DOOR GLASS
126	GEN WB03K5042
136	GEN WB15K5017
140	OV DR FRAME-BLK-LOWER
147	FIBER WASHER
159	GEN WB24K5029
201	GEN WB63K5086
202	GEN WB63K5084
203	GEN WB63K5078
210	UNKNOWN
210	UNKNOWN
211	GEN WB63K5085
212	GEN WB63K5080
216	GEN WB34K5069
217	GEN WB34K5070
218	GEN WB34K5067
219	WB34K5082 GE Oven Wire Cover Conduit
221	SIDE EXTENSTION-RT-UPPER
221	SIDE EXTENSION-LT-UPPER
230	WB35K5041 GE Inner Wrap Insulation
231	INSULATION-OUTER-LOWER
232	INSULATION BACK/BTM-LOW
233	GEN WB34K5080
239	WB2X9189 GE Oven Plug – REC
239	PLUG ROUND
240	GEN WB34K5072
241	WB48T10093 GE Oven Range Rack
246	WB48X10056 GE Broil Pan Set, Large Porcelain
251	WB44K5013 GE Oven Bake Element Range
252	WB44K5009 GE Oven Broil Element
256	WB8K5029 GE Oven Lamp Holder
257	GEN BUY-LOCAL
258	GEN WB02X7693
259	WB36X192 GE Oven Light Cover
260	GEN WB02X7694
262	VENT TRIM-BLK
263	WB7K5378 GE Oven Brow Trim
264	CONT PNL TOP TRIM-BLK
266	WB63K5079 GE Rail Base
268	GEN WB07K5182
273	GEN WB02X3230
275	GEN WB32K5019
279	VENT BOX ASM-BLACK
281	GEN WB14K5006
281	GEN WB14K5007
286	GEN WB09K5018
288	GEN WB03K5043
289	WB34K5068 GE Latch Opening Cover
294	WB2X9719 GE Oven Support Bracket Clip
300	UNKNOWN
300	UNKNOWN
422	GEN WB63K5081
595	WB2K5126 GE Oven Condenser Clamp
600	GEN WB18K5202
760	WB1X536 GE Oven Screw
761	WB1K5029 GE Oven Screw
801	WB1M1 GE Oven Screw
803	WB1X1149 GE Oven Screw
806	SCREW-BRT. NI.
809	WB1X1137 GE Oven Screw
813	WB1X1261 GE Oven Screw
815	SCREW
818	GEN WB01X1250
854	GEN WB01X1328
855	GEN WB01X1295
875	GEN WB01K5057
880	WB1K5191 GE Oven Zinc FL Screw
904	GEN WB01X5550
935	GEN WB01X1201
954	THERMOSTAT BULB RET CLIP
999	GEN 31-0958
999	GEN 31-13049
999	GEN WB18K5103
999	GEN WB18K5203
999	MANUAL USE & CARE
