Aparts

RK524GP2BG

RK524GP2BG

Written by

in

RK524GP2BG

Products

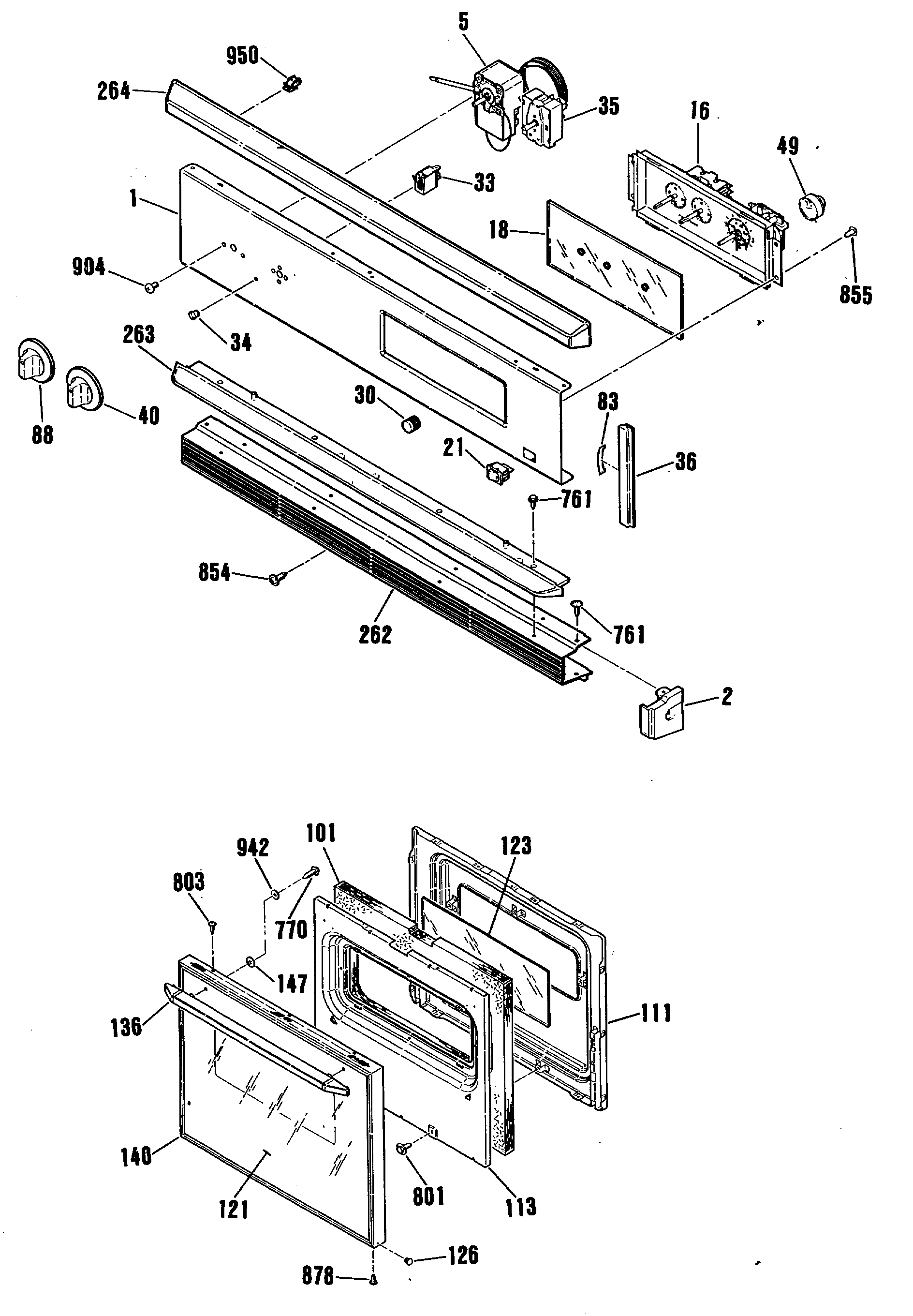

PositionProduct
1GEN WB36K5150
2GEN WB36K5102
2GEN WB36K5101
5THERMOSTAT
15WIRE COVER-MEAT PROBE
16CLOCK DCO
18GEN WB57K5045
21WB24K5035 GE Oven Rocker Switch
30WB3X5699 GE Oven Timer Knob Kit
33WB25T10039 GE Oven Light Indicator
34LENS
35SWITCH, SELECTOR
36GEN WB07K5184
36GEN WB07K5185
40KNOB SEL SWITCH
49GEN WB11X0008
83GEN WB09K5008
88THMST KNOB-BLK
101WB35K5054 GE Oven Door Insulation
111GEN WB55K5016
113GEN WB02K5127
121GEN WB57K5052
123OVEN DOOR GLASS
126GEN WB03K5077
136GEN WB15K5017
140OV DR FRAME-BLK-LOWER
147UNKNOWN
158GEN WB24K5029
201GEN WB63K5086
202GEN WB63K5084
203GEN WB63K5078
210GEN WB07K5159
210GEN WB07K5158
211GEN WB63K5085
212GEN WB63K5080
216GEN WB34K5069
217GEN WB34K5070
218GEN WB34K5067
219WB34K5082 GE Oven Wire Cover Conduit
221SIDE EXTENSION-LT-UPPER
221SIDE EXTENSTION-RT-UPPER
230WB35K5041 GE Inner Wrap Insulation
231INSULATION-OUTER-LOWER
232INSULATION BACK/BTM-LOW
233GEN WB34K5080
239WB2X9189 GE Oven Plug – REC
239PLUG ROUND
240GEN WB34K5072
241WB48T10093 GE Oven Range Rack
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5013 GE Oven Bake Element Range
252WB44K5009 GE Oven Broil Element
256WB8K5029 GE Oven Lamp Holder
257GEN BUY-LOCAL
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
262GEN WB07K5197
262VENT TRIM-BLK
262GEN WB07K5198
263WB7K5378 GE Oven Brow Trim
264GEN WB07K5196
266WB63K5079 GE Rail Base
268GEN WB07K5182
273GEN WB02X3230
276GEN WB32K5019
279VENT BOX ASM-BLACK
281GEN WB14K5006
281GEN WB14K5007
286GEN WB09K5018
288GEN WB03K5043
289WB34K5068 GE Latch Opening Cover
294WB2X9719 GE Oven Support Bracket Clip
432GEN WB63K5081
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K5364
760WB1X536 GE Oven Screw
761WB1K5029 GE Oven Screw
770WB1K5072 GE Oven Screw
801WB1M1 GE Oven Screw
803SCREW
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
812WB1K5191 GE Oven Zinc FL Screw
813WB1X1261 GE Oven Screw
854GEN WB01X1328
855GEN WB01X1295
875WH2X930 GE Screw
878SCREW
904GEN WB01X5550
926GROUND WASHER
935GEN WB01X1201
942GEN WB01X1140
950CABLE CLIP
954THERMOSTAT BULB RET CLIP
999GEN WB18K5103
999GEN 31-13049
999GEN 31-10080
999MANUAL USE & CARE
999GEN WB18K5203
