RK737WS1WG

RK737WS1WG

Written by

in

RK737WS1WG

Products

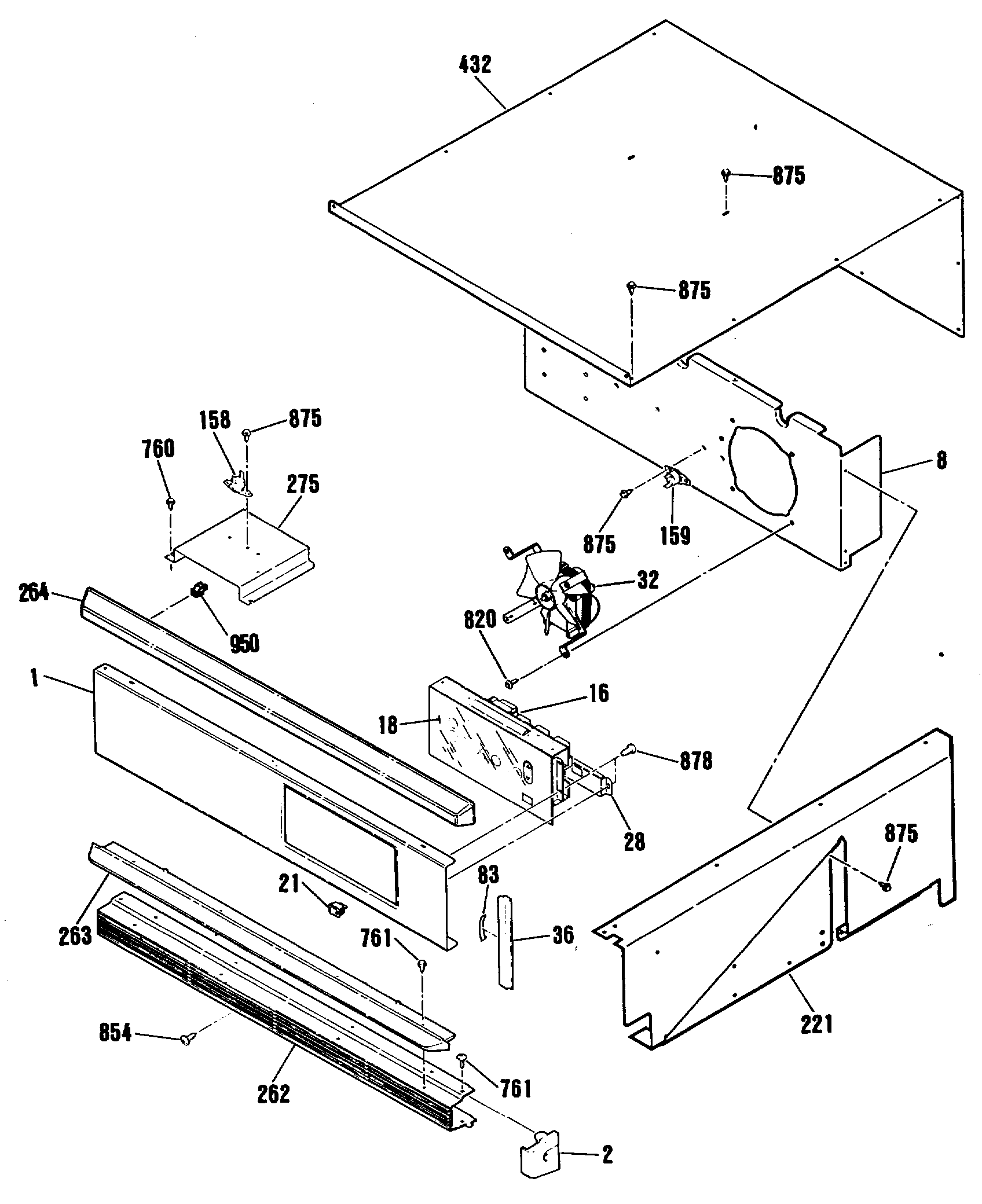

PositionProduct
1GEN WB36K5334
2GEN WB36K5108
2GEN WB36K5107
8GEN WB02K5257
16ERC II
18GEN WB27K5126
21GEN WB24K5036
28GEN WB02K5156
32GEN WB26K5045
36GEN WB07K5056
36GEN WB07K5055
79WB34K5077 GE Oven Door Baffle
83GEN WB09K5008
101WB35K5054 GE Oven Door Insulation
102DOOR PLUG INSULATION
111OV DR LINING PLUG-UPPER
112GEN WB55K5017
113GEN WB02K5127
114GEN WB02M0001
117GEN WB02K5131
118GEN WB02K5215
121GEN WB57K5196
122GEN WB57K5102
123OVEN DOOR GLASS
124GEN WB57K5063
125GEN WB34K5091
126GEN WB03K5077
131WB2X9168 GE Oven Seal
132WB32K5038 GE Oven Door Gasket
136GEN WB15K5061
140GEN WB56K5099
143GEN WB01X1140
146UNKNOWN
147UNKNOWN
151WB49T10020 GE Stove Range Oven Lock Motor Latch Assembly
158WB24K5033 GE Oven Limit Switch
159WB24K5085 GE Oven Limit Switch
184WB34K5228 GE Oven Door Lock Plate
185WB15K5016 GE Oven Lock Lever Assembly
201GEN WB63K5086
202GEN WB63K5084
203GEN WB63K5078
205WB6K5026 GE Oven Smoke El Screw
210GEN WB07K5161
210GEN WB07K5160
211GEN WB63K5085
212GEN WB63K5080
216GEN WB34K5069
217GEN WB34K5070
218GEN WB34K5067
219WB34K5082 GE Oven Wire Cover Conduit
221SIDE EXTENSION-LT-UPPER
221SIDE EXTENSTION-RT-UPPER
230WB35K5048 GE Inner Wrapper Insulation
231WB35K5068 GE Insulation Wrapper
233GEN WB34K5080
241WB48T10093 GE Oven Range Rack
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5013 GE Oven Bake Element Range
252WB44K5009 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8K5029 GE Oven Lamp Holder
257GEN BUY-LOCAL
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261GEN WB24K5061
262GEN WB07K5200
262GEN WB07K5241
262GEN WB07K5201
263TRIM-I BROW GRAY-UP
264GEN WB07K5199
266WB63K5079 GE Rail Base
268GEN WB07K5183
273GEN WB02X3230
275WB34K5078 GE Oven Vent Box Cover
279VENT BOX ASM-BLACK
281GEN WB14K5006
281GEN WB14K5007
286OV DR SPRING-UPPER
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
432GEN WB63K5081
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K5364
752GEN WB00X6542
755WZ4X44D GE Screw Package
760WB1X536 GE Oven Screw
761WB1K5062 GE Oven Screw
761WB1K5029 GE Oven Screw
770WB1K5072 GE Oven Screw
796WB1K5116 GE Oven Screw
801WB1M1 GE Oven Screw
803SCREW
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
812WB1K5191 GE Oven Zinc FL Screw
813WB1X1261 GE Oven Screw
820WB1X1424D GE Oven Screw Package
854SCREW-BRT. NI.
875GEN WB01K5057
878SCREW
926GROUND WASHER
927WB1X119D GE Oven Range Washer
935GEN WB01X1201
950CABLE CLIP
999GEN WB18K5210
999GEN WB18K5450
999GEN 31-13128
999GEN 31-10080
999GEN 39-4688
