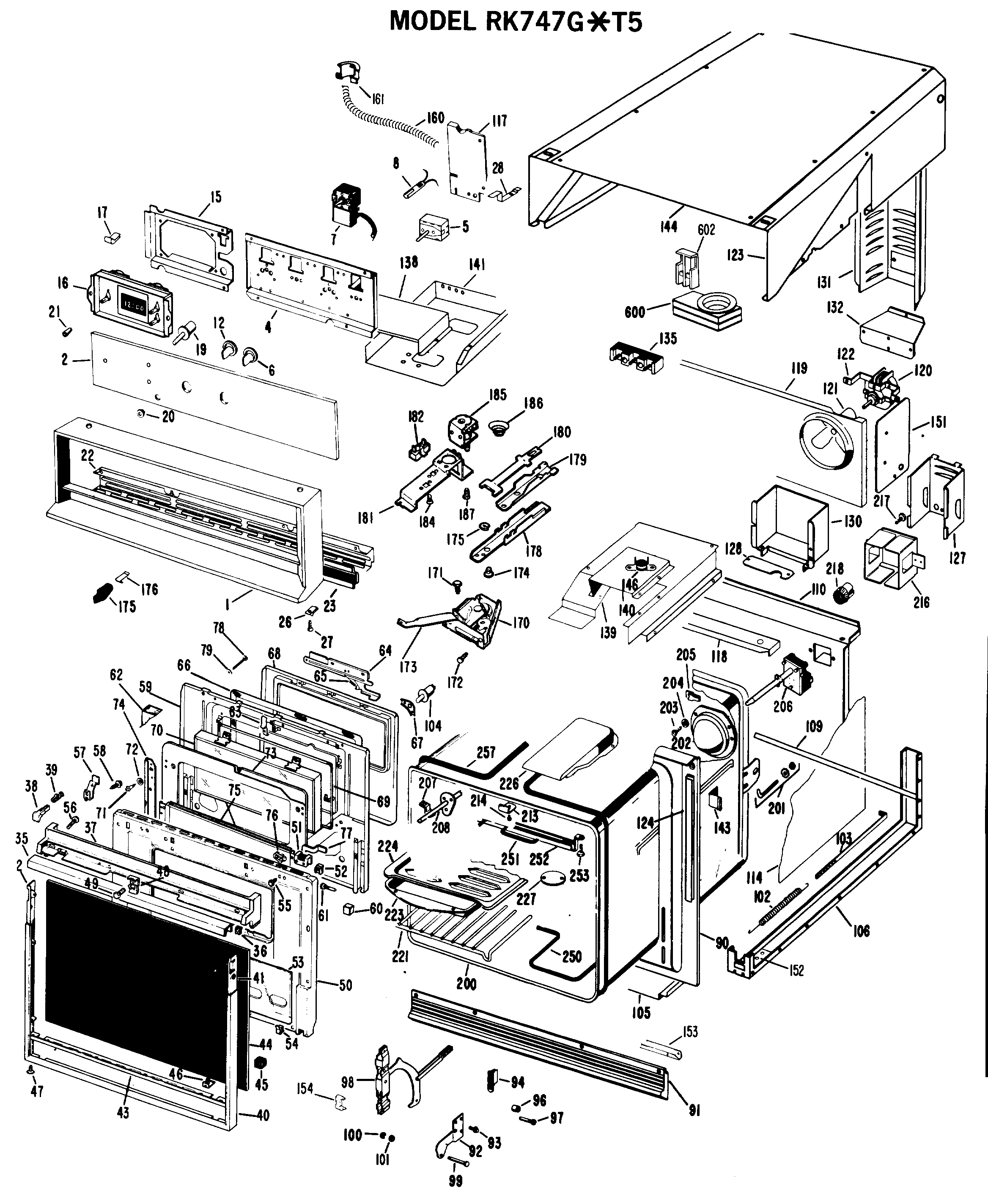

RK747G*T5

RK747G*T5

Written by

in

RK747G*T5

Products

Position	Product
1	GEN WB07X1123
1	SPACER, NOSE
1	SCREW, MTG. NOSE
1	GEN WB07X1122
2	GEN WB36X0558
4	GEN WB02X3453
5	GEN WB22X5085
6	GEN WB03X0407
7	GEN WB24X0176
7	GEN WB02X6937
7	GEN WB02X1949
7	SCR 8-32 M PHR 3/16 S
7	GEN WB02X5545
8	NEON LAMP 118V
8	GEN WB02X3468
12	GEN WB03X0405
15	NUT, HEX
15	GEN WB02X3405
16	NUT
16	WB19X10006 GE Oven Clock
17	GEN WB02X2006
19	SWITCH, LATCH RELEASE
20	TRIM SWITCH
21	GEN WB03X0218
22	GEN WB02X1973
23	GEN WB07X0933
23	GEN WZ05X0132
26	SPEEDNUT – MTG. TRIM TO
27	SCREW – MT. TRIM
28	GEN WB02X3291
28	GEN WZ04X0369
28	GEN WZ04X0372
35	GEN WB15X0154
36	SPEEDNUT – GRIP (4)
37	GEN WB07X1151
38	GEN WB02X3337
39	GEN WB09X0157
40	GEN WB07X1150
41	GEN WB02X3334
42	GEN WB02X3335
43	GEN WB02X3336
44	GEN WB36X0557
46	GEN WB02X3333
48	GEN WB02X3331
50	GEN WB55X0419
51	GEN WB02X3310
52	GEN WB01X0439
53	GEN WB36X0540
54	GEN WB02X3332
56	SCREW MT. GRIP (4)
57	GEN WB09X0153
59	GEN WB55X0406
60	GEN WB02X3285
61	WB1X558D GE Oven Screw Package
62	GEN WB02X3312
62	GEN WB02X3314
63	GEN WB09X0154
64	COVER & GUARD ASM.
64	WB1X500D GE Oven Screw Package
65	GEN WB09X0128
66	WB2X3138 GE Oven Self-Clean Door Gasket
67	GEN WB02X3316
68	GEN WB02X2276
68	GEN WB55X0407
68	GEN WB02X3313
69	GASKET WINDOW
70	GEN WB36X0448
71	GEN WB01X0547
72	GEN WB01X0548
73	WB1X5364 GE Oven Mounting Screw
73	GEN WB49X0354
74	WZ4X345D GE Screw Package 12 C92
74	GEN WB02X3318
74	GEN WB02X3317
75	GEN WB55X0408
76	GEN WB02X3040
76	GEN WZ04X0238
76	WZ5X158D GE Screw Package of 12
77	GEN WB02X3320
77	GEN WB02X3319
78	GEN WZ04X0386
79	WB1X119D GE Oven Range Washer
90	GEN WB56X1327
91	GEN WB07X0934
91	GEN WZ04X0349
92	GEN WE10X0155
92	GEN WB10X0154
93	GEN WZ06X0086
94	GEN WB02X3303
96	GEN WB02X3304
96	GEN WB02X3305
97	GEN WB01X0524
98	GEN WB10
98	UNKNOWN
