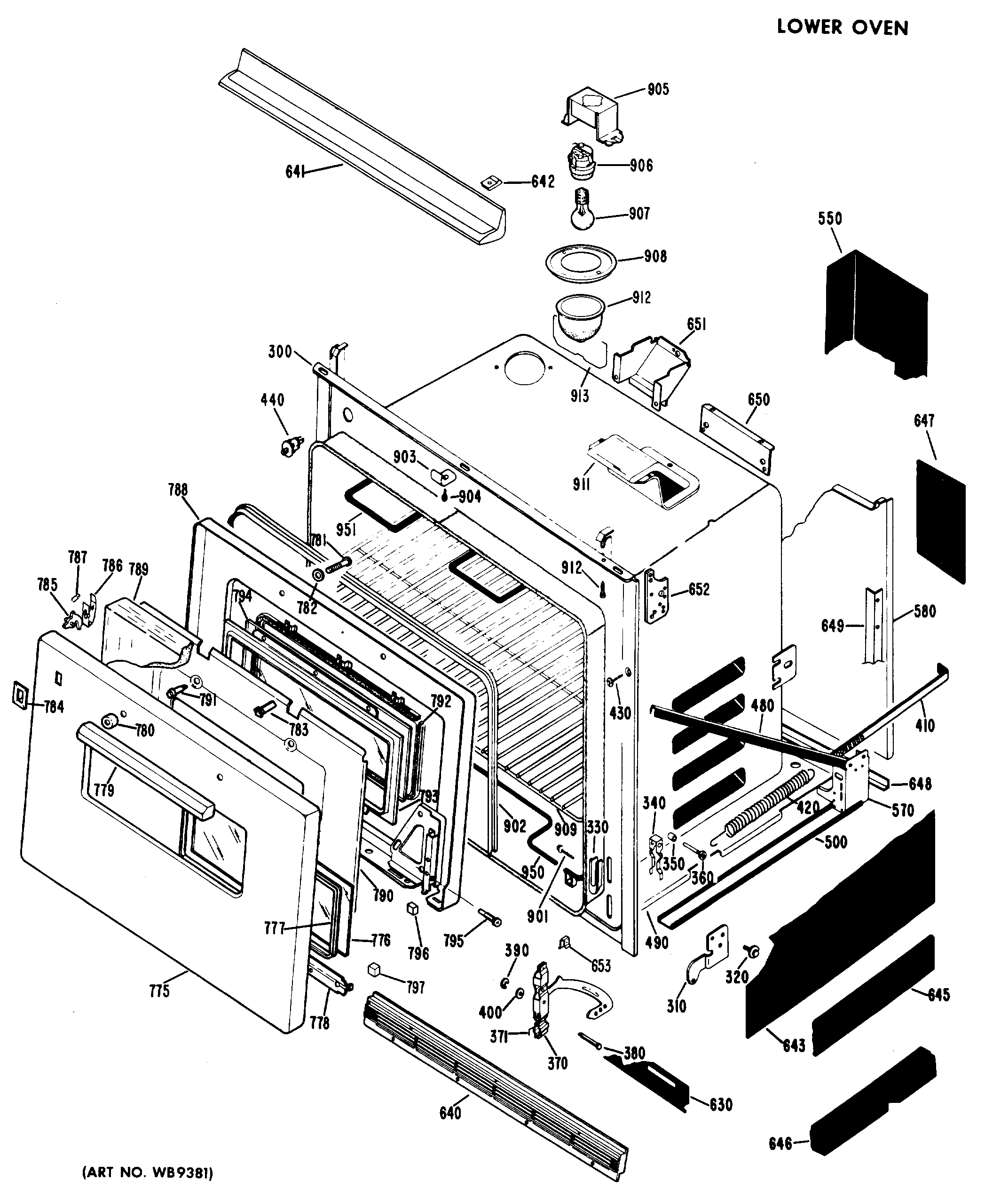

RK767*T5 LOWER OVEN

RK767*T5 LOWER OVEN

Written by

in

RK767*T5 LOWER OVEN

Products

PositionProduct
300GEN WB56X1326
310GEN WB10X0154
310GEN WB10X0155
320GEN WZ06X0086
330GEN WB02X1460
340SPRING HINGE LEVER
350GEN WB02X1462
360SCREW
370GEN WB10X0151
371GEN WB09X0150
380GEN WB02X6195
390RING RETAINING
400GEN WZ10X0017
410GEN WB02X3289
420GEN WB09X0151
430GEN WB01X0295
430GEN WB01X0292
440SWITCH, OVEN LIGHT
480WB1X536 GE Oven Screw
480GEN WB02X2401
490GUARD BOTTOM
500CHANNEL BOTTOM
500WZ4X345D GE Screw Package 12 C92
550GUARD TERMINAL
570GEN WB59X0108
580GUARD
630SUPPORT TRIM
640GRILL
640GEN WZ04X0349
641GEN WB07X1124
642SPEEDNUT
642WB1X537 GE Oven Screw
643GUARD SIDE
645GEN WB59X0106
646SPACER BOTTOM
647GEN WB59X0137
648ANGLE REAR
649ANGLE REAR
650SPACER BACK
651GUARD WIRE
652SUPPORT DOUBLE OVEN
653SHIM
775GEN WB56X1359
775GEN WB56X1360
775GEN WB56X1356
775GEN WB56X1357
775GEN WB56X1358
776GEN WB36X0430
777GEN WB07X1031
778GEN WB02X3282
779GEN WB15X0133
780GROMMET HANDLE
781HANDLE SCREW
782WB1X119D GE Oven Range Washer
783SPACER PANEL
784GEN WB07X5486
785GEN WB02X5410
786GEN WB09X5083
787CAM LINK
788DOOR LINER
789GEN WB02X3283
790GEN WB55X0403
791GEN WB01X0547
792GASKET WINDOW
793GEN WB02X3284
794GEN WB36X0526
795WB1X558D GE Oven Screw Package
796GEN WB02X3285
902WB2X2058 GE Oven Gasket
903GEN WB02X3393
905BRACKET SUPPORT
906GEN WB08X0191
908GEN WB02X3448
909RACK OVEN
911GASKET VENT
911VENT ASM
911GEN WB01X0556
912WB36X192 GE Oven Light Cover
913GEN WB02X2885
950BAKE ELEMENT SELF CLEAN
951WB44X134 GE Oven Broil Element
951SUPPORT BROIL
951GEN WB02X0599
951GASKET BROIL UNIT
951SCREW MTG. SUPPORT
