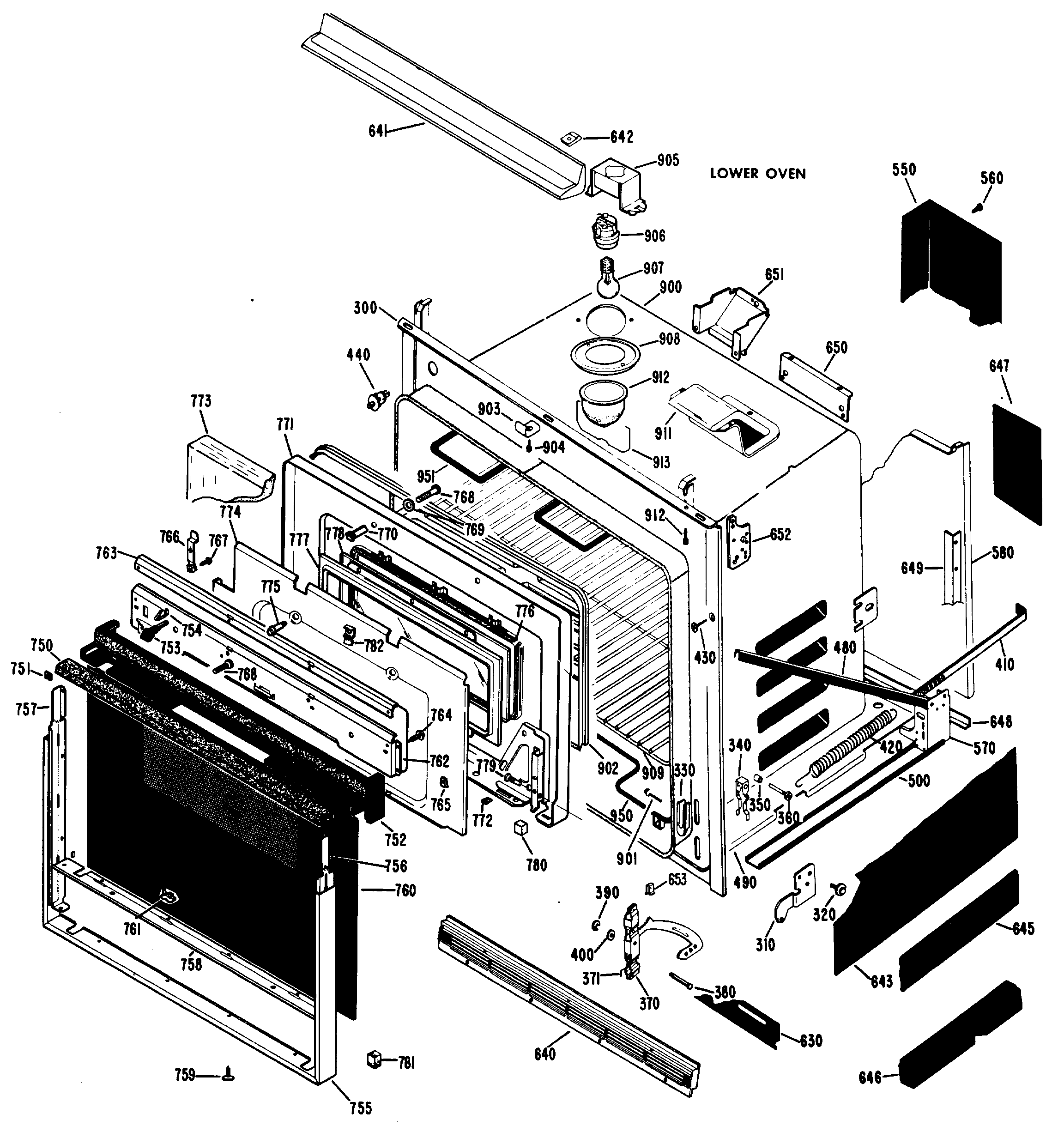

RK767G*T5 LOWER OVEN

RK767G*T5 LOWER OVEN

Written by

in

RK767G*T5 LOWER OVEN

Products

PositionProduct
300GEN WB56X1326
310GEN WB10X0155
310GEN WB10X0154
320GEN WZ06X0086
330GEN WB02X1460
340SPRING HINGE LEVER
350GEN WB02X1462
360SCREW
370GEN WB10X0151
371GEN WB09X0150
380GEN WB02X6195
390RING RETAINING
400GEN WZ10X0017
410GEN WB02X3289
420GEN WB09X0151
430GEN WB01X0292
430GEN WB01X0295
440SWITCH, OVEN LIGHT
480GEN WB02X2401
480WB1X536 GE Oven Screw
490GUARD BOTTOM
500WZ4X345D GE Screw Package 12 C92
500CHANNEL BOTTOM
550GUARD TERMINAL
570GEN WB59X0108
580GUARD
630SUPPORT TRIM
640GRILL
640GEN WZ04X0349
641GEN WB07X1124
642WB1X537 GE Oven Screw
642SPEEDNUT
643GUARD SIDE
645GEN WB59X0106
646SPACER BOTTOM
647GEN WB59X0137
648ANGLE REAR
649ANGLE REAR
650SPACER BACK
651GUARD WIRE
652SUPPORT DOUBLE OVEN
653SHIM
750GEN WB15X0154
751SPEEDNUT – GRIP (4)
752GEN WB07X1151
753GEN WB02K3337
754GEN WB09X0157
755GEN WB07X1153
756GEN WB02X3338
757GEN WB02X3339
758GEN WB02X3340
759WB1X5364 GE Oven Mounting Screw
760GEN WB36X0556
761GEN WB02X3341
762GEN WB02X3342
763GEN WB07X1154
765GEN WB01X0585
766GEN WB09X0153
767WB1X500D GE Oven Screw Package
768SCREW MT. GRIP (4)
769WB1X119D GE Oven Range Washer
770GEN WB02X3025
771DOOR LINER
772GEN WB01X0580
773GEN WB02X3283
774GEN WB55X0403
775GEN WB01X0547
776GASKET WINDOW
778GEN WB36X0526
779WB1X558D GE Oven Screw Package
780GEN WB02X3285
781GEN WB02X3191
782WZ5X158D GE Screw Package of 12
782GEN WB02X3331
900OVEN LINER INSULATION PKG.
900GEN WB53X0242
902WB2X2058 GE Oven Gasket
903GEN WB02X3393
905BRACKET SUPPORT
906GEN WB08X0191
908GEN WB02X3448
909RACK OVEN
911GASKET VENT
911VENT ASM
911GEN WB01X0556
912WB36X192 GE Oven Light Cover
913GEN WB02X2885
950BAKE ELEMENT SELF CLEAN
951WB44X134 GE Oven Broil Element
951SUPPORT BROIL
951GEN WB02X0599
951GASKET BROIL UNIT
951SCREW MTG. SUPPORT
