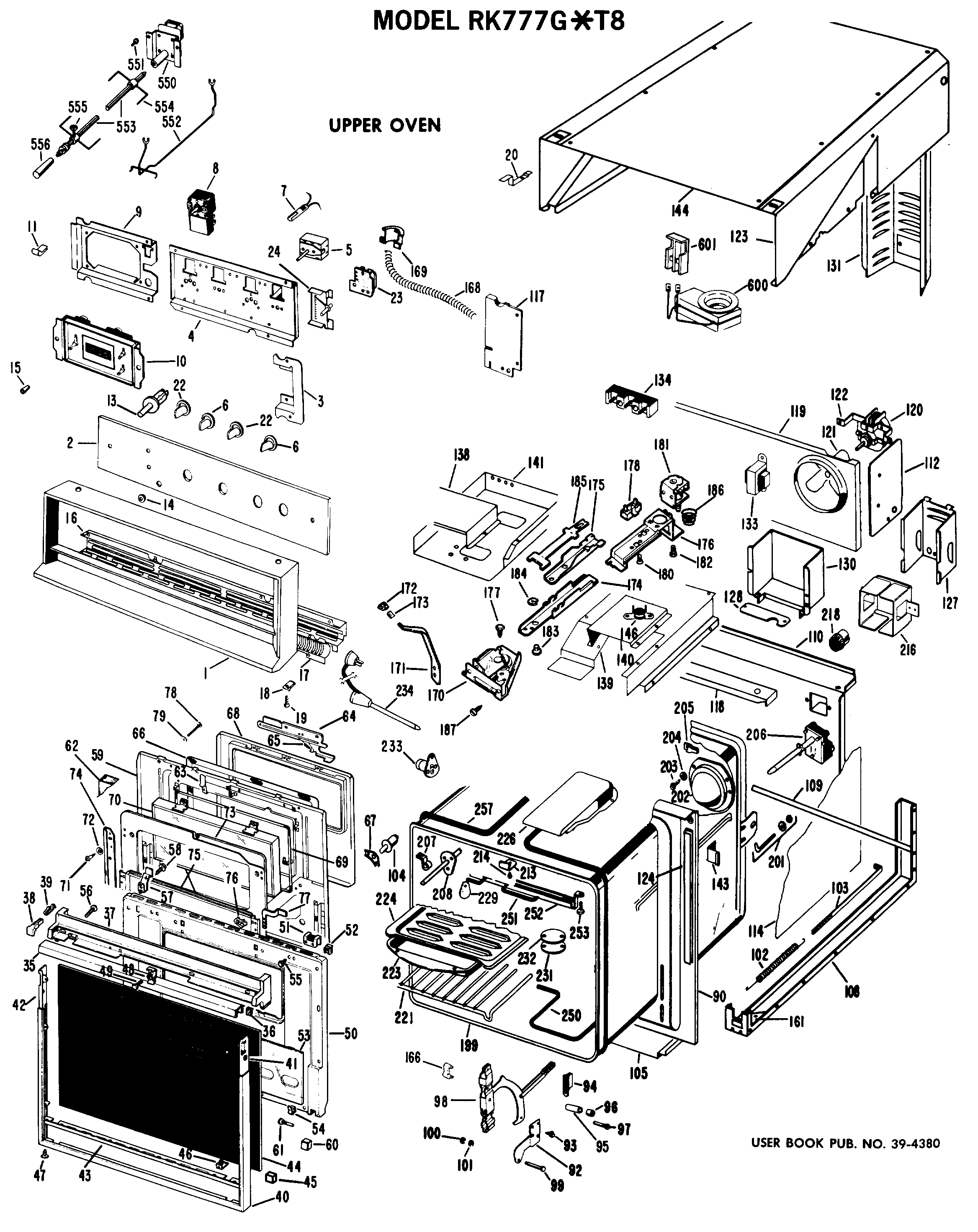

RK777G*T8 UPPER OVEN

RK777G*T8 UPPER OVEN

Written by

in

RK777G*T8 UPPER OVEN

Products

Position	Product
1	GEN WB07X1123
1	GEN WB07X1122
1	SCREW, MTG. NOSE
1	SPACER, NOSE
2	GEN WB36X0529
3	GEN WB02X2407
4	GEN WB02X3453
5	GEN WZ02X0538
5	GEN WB22X5084
5	GEN WB22X5085
6	GEN WB03X0410
6	GEN WB03X0407
7	NEON LAMP 118V
7	GEN WB02X3468
8	GEN WB02X6937
8	GEN WB02X1949
8	SCR 8-32 M PHR 3/16 S
8	GEN WB24X0184
8	GEN WB24X0176
8	SLEEVE (LONG)
8	GEN WB02X3178
9	GEN WB02X3405
9	NUT, HEX
10	WB19X10006 GE Oven Clock
10	NUT
11	GEN WB02X2006
13	GEN WB24X0210
14	TRIM SWITCH
15	GEN WB03X0218
16	GEN WB02X1973
17	GEN WZ05X0132
17	GEN WB07X0933
18	SPEEDNUT – MTG. TRIM TO
19	SCREW – MT. TRIM
20	GEN WZ04X0369
20	GEN WB02X3291
20	GEN WZ04X0372
22	GEN WB03X0409
22	GEN WB03X0405
23	GEN WB01X0284
23	CIRCUIT BOARD ASM THERMO
24	GEN WB07X5527
35	GEN WB15X0154
36	SPEEDNUT – GRIP (4)
37	GEN WB07X1151
38	GEN WB02X3337
39	GEN WB09X0157
40	GEN WB07X1150
40	GEN WB07X1152
41	GEN WB02X3334
42	GEN WB02X3335
43	GEN WB02X3336
44	GEN WB36X0557
44	GEN WB36X0541
46	GEN WB02X3333
48	GEN WB02X3331
50	GEN WB55X0419
51	GEN WB02X3310
52	GEN WB01X0439
53	GEN WB36X0540
54	GEN WB02X3332
56	SCREW MT. GRIP (4)
57	GEN WB09X0153
59	GEN WB55X0406
60	GEN WB02X3285
61	WB1X558D GE Oven Screw Package
62	GEN WB02X3312
62	GEN WB02X3314
63	GEN WB09X0154
64	WB1X500D GE Oven Screw Package
64	COVER & GUARD ASM.
65	GEN WB09X0128
66	WB2X3138 GE Oven Self-Clean Door Gasket
67	GEN WB02X3316
68	GEN WB02X2276
68	GEN WB02X3313
68	GEN WB55X0407
69	GASKET WINDOW
70	WZ4X345D GE Screw Package 12 C92
70	GEN WB36X0448
71	GEN WB01X0547
72	GEN WB01X0548
73	GEN WB49X0354
73	WB1X5364 GE Oven Mounting Screw
74	GEN WB02X3317
74	GEN WB02X3318
75	GEN WB55X0408
76	GEN WZ04X0238
76	GEN WB02X3040
76	WZ5X158D GE Screw Package of 12
77	GEN WB02X3319
77	GEN WB02X3320
78	GEN WZ04X0386
79	WB1X119D GE Oven Range Washer
90	GEN WB56X1327
92	GEN WB10
