RK964GP3BG

Products

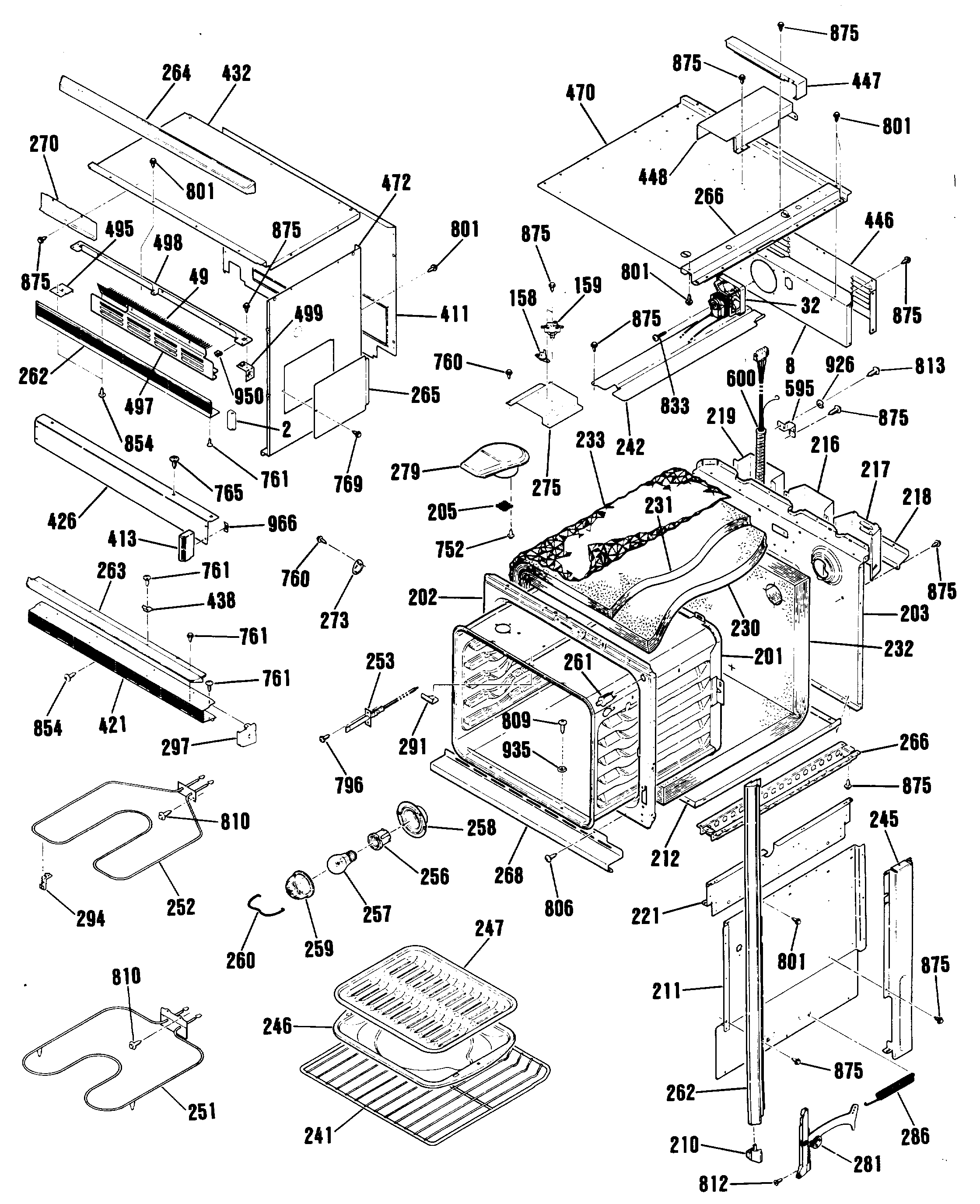

PositionProduct
2GEN WB36K5165
2GEN WB36K5164
8FAN SUPPORT-LOWER
9GEN WB57K5078
10GEN WB57K5081
16GEN WB27K5066
20FAN MOTOR BRACKET
20GEN WB02K5192
20GEN WB02K5193
20GEN WB02K5189
20HV CAPACITOR BRACKET
25GEN WB34K5110
28WB12K5005 GE Oven Electric Control
32FAN ASM-LOWER
42FUSE INSULATOR
43SPACER-M/W
44GEN WB02X7722
47GEN WB02X7724
48GEN WB02X7635
49MICROWAVE SCREEN
79WB34K5077 GE Oven Door Baffle
95REAR STOP BRACKET
99SPACER
101WB35K5054 GE Oven Door Insulation
102DOOR PLUG INSULATION
105DOOR HANDLE M/W
107GEN WB02X7559
109GEN WB15K5037
109GEN WB15K5038
111OV DR LINING PLUG-UPPER
112GEN WB55K5028
112GEN WB55K5017
113GEN WB02K5127
114GEN WB02M0001
115LINER & CHOKE ASM.
117GEN WB02K5131
118GEN WB02K5215
121DOOR SCREEN-M/W
121GEN WB57K5058
122GEN WB57K5102
123OVEN DOOR GLASS-CENTER
123GEN WB55K5030
124GEN WB57K5063
124GEN WB07X6925
125GEN WB34K5091
126GEN WB03K5077
131WB2X9168 GE Oven Seal
132WB32K5038 GE Oven Door Gasket
136GEN WB15K5017
140GEN WB55X5326
140GEN WB56K5039
141DOOR SASH RUBBER
142GEN WB07X6900
143DOOR SASH LEFT M/W
147UNKNOWN
149GEN WB02X7642
150GEN WB02X7643
151WB49T10020 GE Stove Range Oven Lock Motor Latch Assembly
158WB24K5033 GE Oven Limit Switch
159WB24K5049 GE Oven Limit Switch
184WB34K5228 GE Oven Door Lock Plate
185WB15K5016 GE Oven Lock Lever Assembly
201GEN WB63K5086
202GEN WB63K5084
203GEN WB63K5078
205WB6K5026 GE Oven Smoke El Screw
210GEN WB07K5158
210GEN WB07K5159
211GEN WB63K5085
212GEN WB63K5080
216GEN WB34K5069
217GEN WB34K5070
218GEN WB34K5067
219WB34K5082 GE Oven Wire Cover Conduit
221CAB SIDE EXTENSION-LOW
230WB35K5048 GE Inner Wrapper Insulation
231WB35K5068 GE Insulation Wrapper
233GEN WB34K5080
241WB48T10093 GE Oven Range Rack
242WB38K5041 GE Vent Box
245GEN WB02K5139
246CERAMIC TRAY
246WB48X10056 GE Broil Pan Set, Large Porcelain
249MICROWAVE SUPPORT
251WB44K5013 GE Oven Bake Element Range
252WB44K5009 GE Oven Broil Element
253SENSOR ASM
256WB8K5029 GE Oven Lamp Holder
257GEN WB08K5032
257RANGE ONLY 40W 120V APPL BULB
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261GEN WB24K5061
262GEN WB07K5219
262GEN WB07K5220
262GEN WB07K5103
263WB7K5378 GE Oven Brow Trim
264GEN WB07K5196
265ACCESS COVER
266WB63K5079 GE Rail Base
266BASE RAIL MICROWAVE
268GEN WB07K5182
270LIGHT COVER
273GEN WB02X3230
275WB34K5078 GE Oven Vent Box Cover
279VENT BOX ASM-BLACK
280WB20T10024 GE Oven Thermistor Probe
280PROBE-M/W
281GEN WB14K5007
281GEN WB14K5006
286OV DR SPRING-UPPER
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
297GEN WB36K5101
297GEN WB36K5102
300SPACER-HINGE-M/W
300GEN WB02K5190
339GEN WB02X7728
401BOTTOM WINDOW-M/W
407DOOR HOOK LOWER-M/W
407DOOR HOOK UPPER-M/W
411CABINET BACK
413END CAP-CENTER-RT-BLK
413CTR TRIM END CAP-LT-BLK
413GEN WB63K5124
416SENSOR JACK
416HOLDER PROBE-M/W
421ANTENNA-M/W
421VENT TRIM-BLK
426TRIM-LOWER-M/W
427MOTOR, STIRRER-M/W
428SUPPORT-OVEN RACK
431GEN WB48K5008
432CABINET TOP
435THERMAL CUTOUT-M/W
437GEN WB38K5038
438BOTTOM WINDOW-M/W
438LO TRIM SPRING CLIP
439FUSE HOLDER
443THERMAL SWITCH
444GEN WB07K5141
446WB34K5089 GE Wire Center Cover
447WIRE COVER-MICRO SIDE
448WIRE COVER-MICRO CENTER
452GEN WB24K5056
453CONTROL PANEL HINGE
461CAVITY
462GEN WB02X7625
463GEN WB27X5371
466GEN WB10X5179
466GEN WB10X5184
468ANTENNA SUPPORT
470COMPARTMENT BOTTOM
472CABINET SIDE-LT
472CABINET SIDE-RT
476SERVICE CAUTION LABEL
487NAME PLATE
489GEN WB15K5039
489GEN WB10X5186
494GEN WB06K5021
495VENT TRIM BRACKET
496GEN WB09K5015
496GEN WB06K5019
497VENT BARRIER TRIM
497GEN WB02X7628
498CABINET BRACE
499CABINET BRACE BRACKET
511FAN MOTOR
512GEN WB02X4114
522CUSHION 15T 10W 450L
531CUSHION 5T 10W 450L
531CUSHION 5T 10W 550L
533AIR SEPARATION
562FUSE #SS6-15A
576GEN WB24X0352
577GEN WB24X0353
578WB27X10073 GE Oven Capacitor
579WB27X10249 GE Oven Magnetron
582GEN WB27X5447
583GEN WB20K5017
595WB2K5126 GE Oven Condenser Clamp
597HV DIODE
598GEN WB18K5297
599GEN WB18K5299
600GEN WB18K5215
752WZ4X345D GE Screw Package 12 C92
753GEN WB01K5086
760WB1X536 GE Oven Screw
761WB1K5029 GE Oven Screw
762GEN WB01K5110
765GEN WB01X5716
769WB1X500D GE Oven Screw Package
770WB1K5072 GE Oven Screw
773SCREW
774GEN WB01K5089
776GEN WB01K5091
779WB1M14 GE Oven Screw
780SCREW
781GEN WB01K5095
782GEN WB01K5096
783SCREW
784GEN WB01K5098
786SCREW
788SCREW
790SCREW
791SCREW
792GEN WB01K5104
793GEN WB01K5105
796WB1K5116 GE Oven Screw
801WB1M1 GE Oven Screw
806SCREW-BRT. NI.
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
812WB1K5191 GE Oven Zinc FL Screw
813WB1X1261 GE Oven Screw
815SCREW
833WB1X1131 GE Screw 6-32
854GEN WB01X1328
875GEN WB01K5057
916PLASTIC RIVET
927WB1X119D GE Oven Range Washer
935GEN WB01X
942GEN WB01X1140
959LOWER TRIM CLIP
989NUT
999LEAD WIRE
999MAIN WIRE HARNESS
999HV LEAD WIRE
999GEN 39-4690
999GEN WB18K5217
999MW-MINI MAN/WIRE DIAGRAM
999MAIN WIRE HARNESS M/W
999GEN 31-10090
999GEN 31-13111
999GEN WB06K5022
