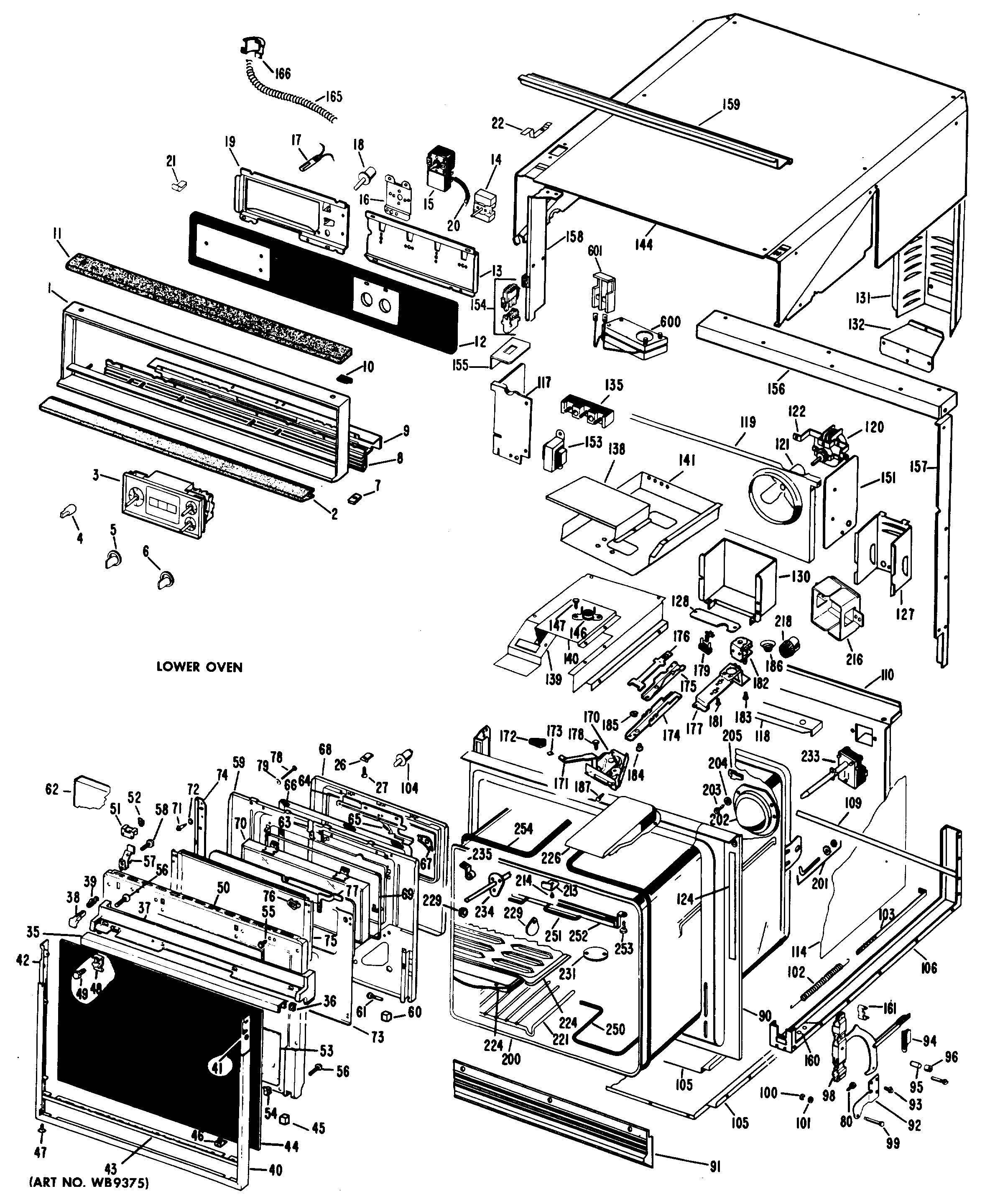

RK966G*09 LOWER OVEN

RK966G*09 LOWER OVEN

Written by

in

RK966G*09 LOWER OVEN

Products

PositionProduct
1GEN WB07X1122
2SCREW, MTG. NOSE
2SPACER, NOSE
2GEN WB07X1123
3WB19X10006 GE Oven Clock
3NUT
4GEN WB03X0218
5GEN WB03X0463
6GEN WB03X0462
7SPEEDNUT – MTG. TRIM TO
7SCREW – MT. TRIM
8GEN WB07X0635
9GEN WZ05X0132
9GEN WB02X1973
10GEN WB02X6671
11GEN WB02X6668
12GEN WB36X5347
13GEN WB22X5085
13GEN WB02X6494
13SCR 8-32 M PHR 3/16 S
13GEN WB02X3453
15GEN WB24X0176
17NEON LAMP 118V
17SCREW & WASHER ASM
17NEON LAMP – 240V
18SWITCH, LATCH RELEASE
18TRIM SWITCH
19NUT, HEX
19GEN WB02X3405
20GEN WB02X6274
21GEN WB02X2006
22GEN WZ04X0372
22GEN WZ04X0369
22GEN WB02X3291
35GEN WB15X0153
36SPEEDNUT – GRIP (4)
37GEN WB07X0151
38GEN WB02X3459
39GEN WB09X0157
40GEN WB07X1150
41GEN WB02X3334
42GEN WB02X3335
43GEN WB02X3336
44GEN WB36X0557
46GEN WB02X3333
48GEN WB02X3331
50GEN WB55X0419
51GEN WB02X3310
52GEN WB01X0439
53GEN WB02X3332
56SCREW MT. GRIP (4)
57GEN WB09X0153
59GEN WB55X0406
60GEN WB02X3285
61WB1X558D GE Oven Screw Package
62GEN WB02X3314
62GEN WB02X3312
63GEN WB09X0154
64WB1X500D GE Oven Screw Package
64COVER & GUARD ASM.
65GEN WB09X0128
66WB2X3138 GE Oven Self-Clean Door Gasket
67GEN WB02X3316
68GEN WB02X3313
68GEN WB02X2276
68GEN WB55X0407
69GASKET WINDOW
70GEN WB36X0448
71GEN WB01X0547
72GEN WB01X0548
73WB1X5364 GE Oven Mounting Screw
73GEN WB49X0354
74GEN WB02X3317
74GEN WB02X3318
74WZ4X345D GE Screw Package 12 C92
75GEN WB55X0408
76WZ5X158D GE Screw Package of 12
76GEN WZ04X0238
76GEN WB02X3040
77GEN WB02X3319
77GEN WB02X3320
78GEN WZ04X0386
79WB1X119D GE Oven Range Washer
90GEN WB56X1327
91GRILL
91GEN WZ04X0237
91GEN WB07X0934
92GEN WB10X0154
92GEN WB10X0155
93GEN WZ06X0086
94GEN WB02
