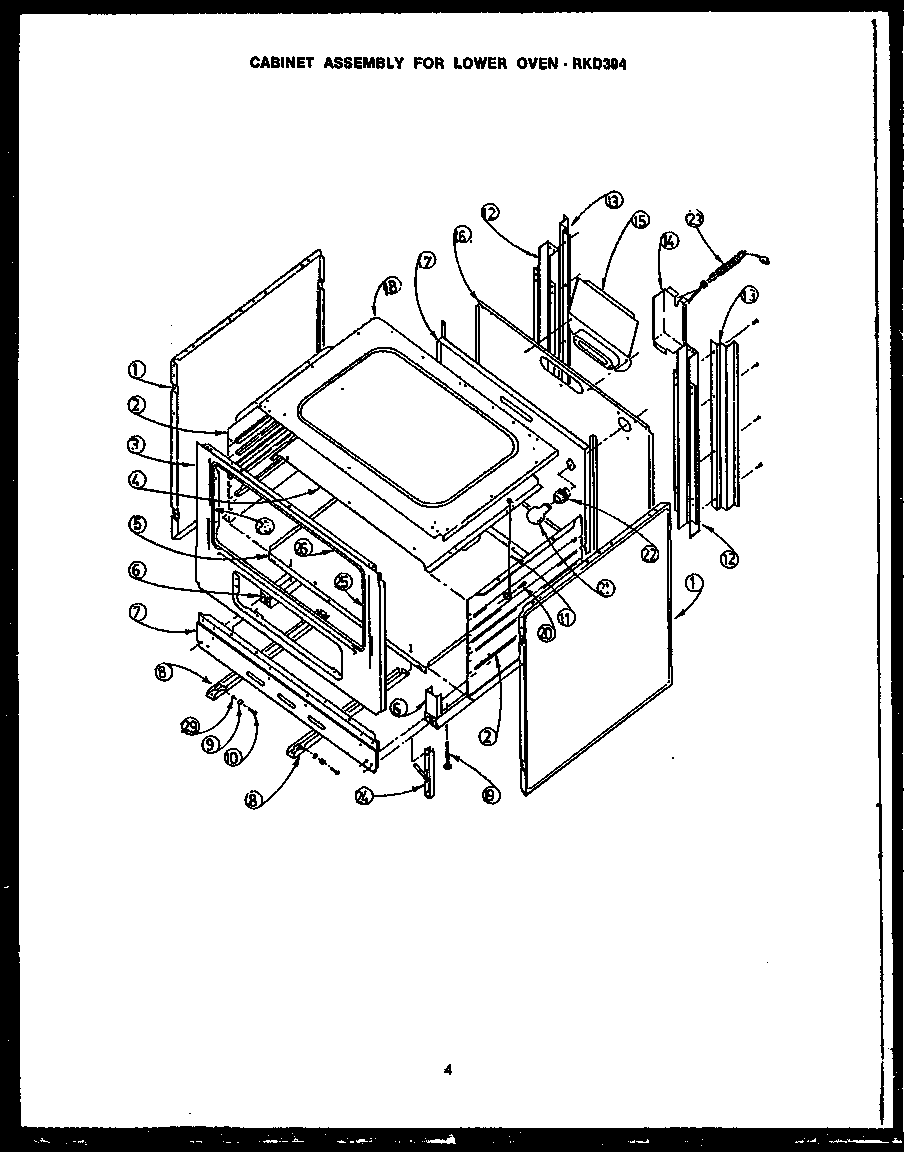

RKD394 01 – CABINET ASSY FOR LOWER OVEN

RKD394 01 – CABINET ASSY FOR LOWER OVEN

Written by

in

RKD394 01 – CABINET ASSY FOR LOWER OVEN

Products

Position	Product
NI	MAY Y0087016
1	MAY 88652A
1	MAY 88652H
1	MAY Y088652W
1	MAY 088652L
1	MAY Y088652C
6	MAY 0088654
7	MAY 88655
8	MAY Y0086912
9	MAY Y0086920
10	MAY Y0086919
11	MAY 0087023
12	MAY 61702
13	MAY 61701
14	MAY 61660
15	MAY 0088718
16	MAY 88656
17	SEE NOTE GROUND WIRE, GREEN
18	MAY 0088661
19	MAY Y0088651
20	MAY 0088779
21	MAY 76744
22	MAY 0088882
23	MAY 0088909
24	MAY Y0086790
25	MAY 888847
26	MAY Y0088848
29	MAY 0086922
