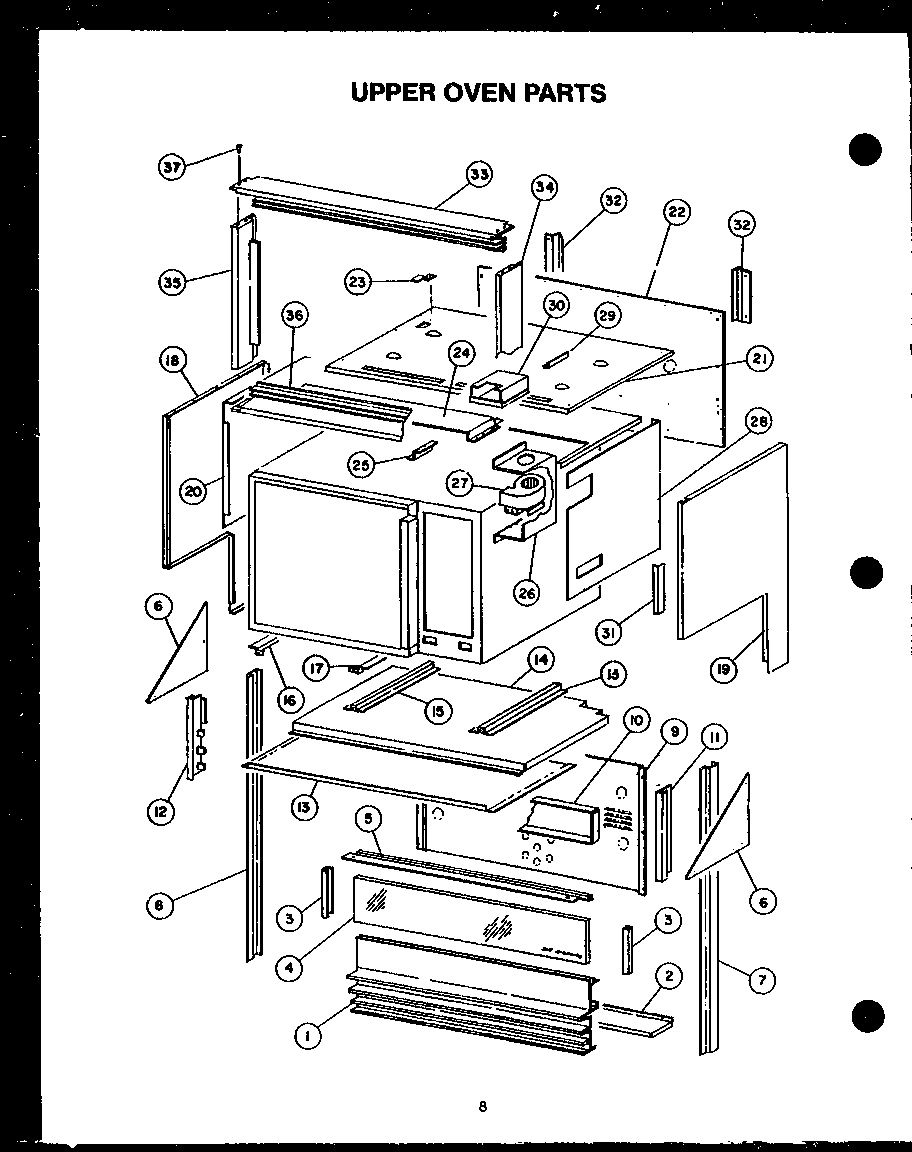

RKT-396 13 – UPPER OVEN PARTS

RKT-396 13 – UPPER OVEN PARTS

Written by

in

RKT-396 13 – UPPER OVEN PARTS

Products

PositionProduct
NIMAY Y0071265
NIMAY Y0305027
NIMAY Y0305026
NIMAY Y2068242050
1MAY 304037W
1MAY 304037L
2MAY 0062423
3MAY Y0303647
4MAY 0303680
5MAY 0062230
6MAY Y0300636
7MAY Y0300414
8MAY 0300413
9MAY 0302252
10MAY 0304537
11MAY Y0303693
12MAY Y0303694
13MAY W10125480
14MAY Y0059894
15MAY Y0059895
16MAY 0059907
17MAY 0059908
18MAY 303644L
18MAY 303644W
19MAY 303643L
19MAY 303643W
20MAY Y0304606
21MAY Y0304514
22MAY Y0062464
23MAY Y0073060
24MAY W10125473
25MAY W10125470
26MAY W10125036
27MAY Y0042289
28MAY Y0304515
29MAY W10125035
30MAY Y0304512
31MAY Y0059770
32SEE NOTE GROUND WIRE, GREEN
33MAY Y0304385
34MAY 0304368
35MAY Y0304369
36MAY Y0304366
37MAY Y0041807
