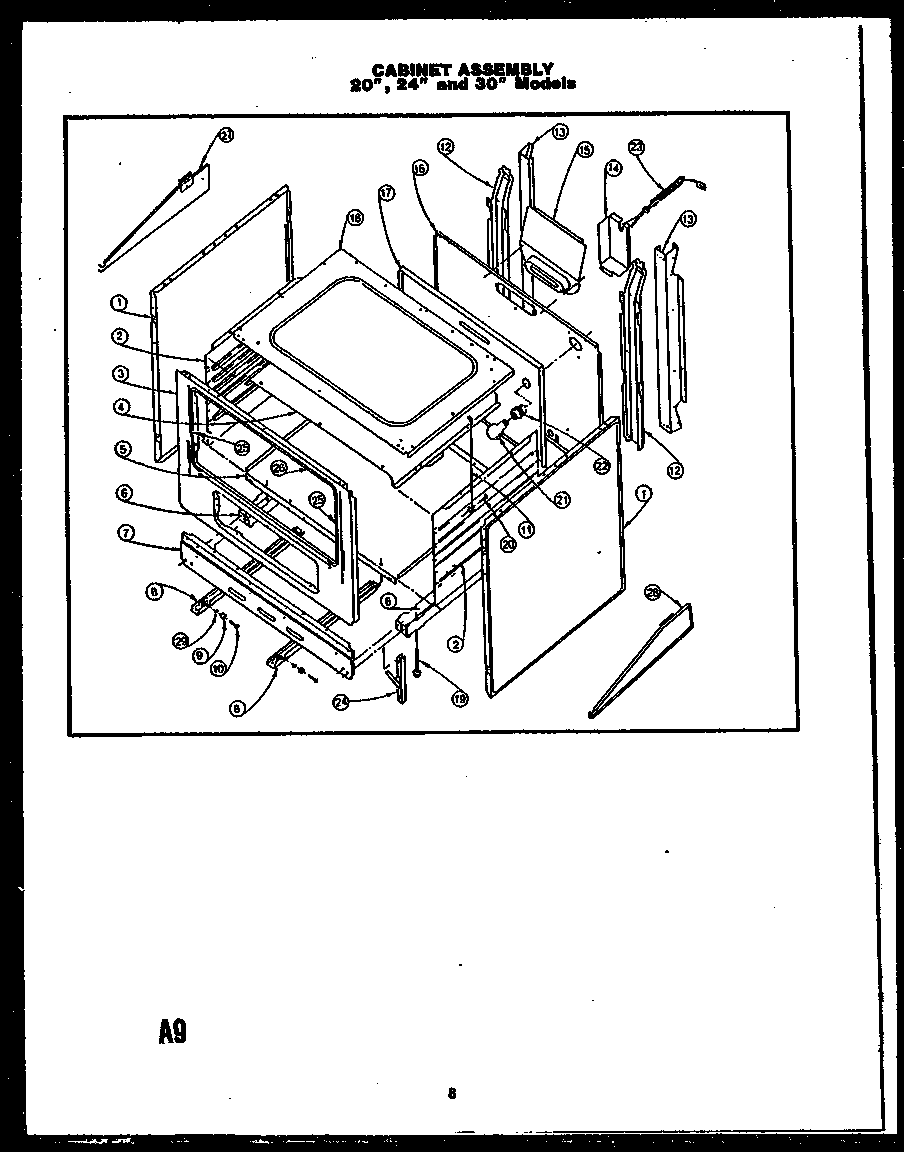

RLD354 02 – CABINET ASSY 20“

RLD354 02 – CABINET ASSY 20“

Written by

in

RLD354 02 – CABINET ASSY 20“

Products

Position	Product
NI	MAY Y0087016
1	MAY Y088652W
1	MAY 88652A
1	MAY 88652H
1	MAY Y088652C
1	MAY 088652L
6	MAY 0088654
7	MAY 88655
8	MAY Y0086912
9	MAY Y0086920
10	MAY Y0086919
11	MAY 0087023
12	MAY 0088657
13	MAY 0088086
13	MAY 0088658
14	MAY 0088662
15	MAY 0088718
15	MAY Y0088643
16	MAY 0087026
16	MAY 88656
17	SEE NOTE GROUND WIRE, GREEN
18	MAY Y0086953
19	MAY 62362
20	MAY 0088779
21	MAY 20478
22	MAY Y0088674
23	MAY 0088884
24	MAY Y0086790
25	MAY Y0088847
26	MAY Y0088848
29	MAY 0086922
