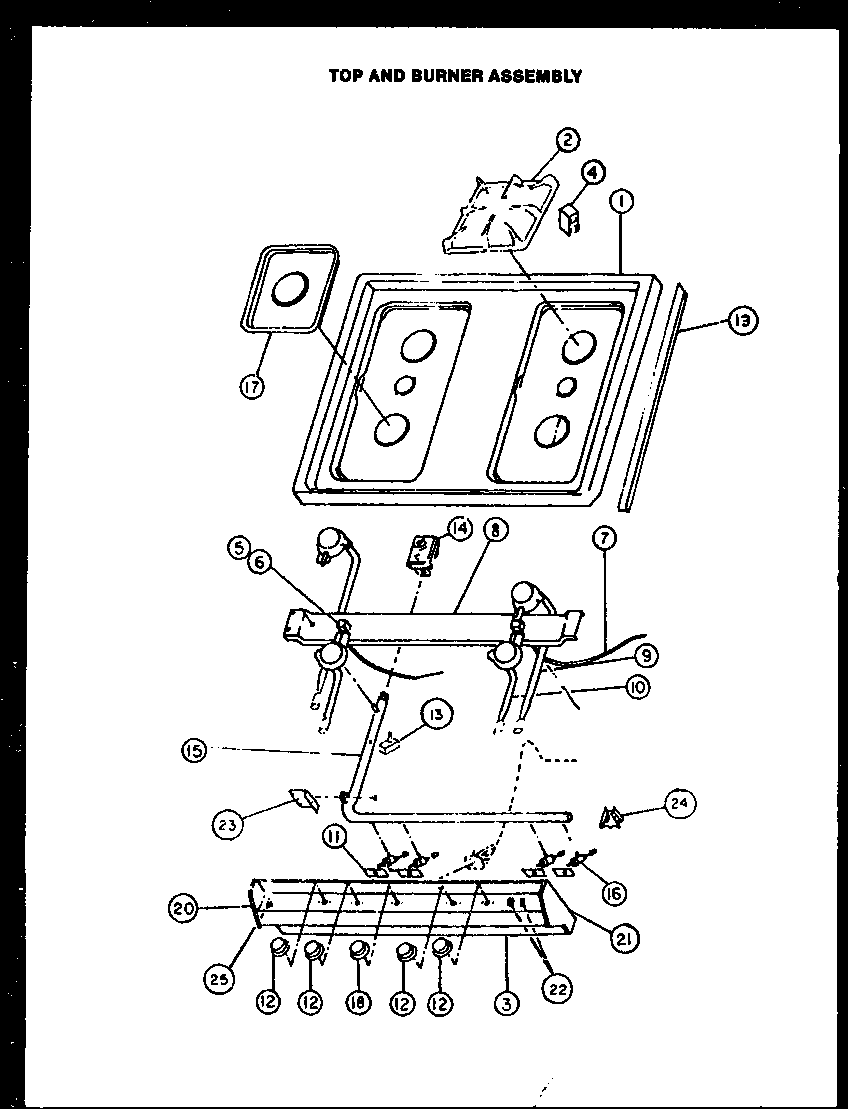

RLT-380 07 – TOP AND BURNER ASSY
Written by
in
RLT-380 07 – TOP AND BURNER ASSY
Products
Position
Product
NI
MAY 56018
1
MAY 310082L
1
MAY 310082W
1
MAY 310082H
2
MAY 60529
3
MAY Y0311851
4
MAY Y0311627
5
SEE NOTE GROUND WIRE, GREEN
6
MAY Y0311843
7
MAY Y0311842
8
MAY Y0086719
9
MAY Y0086715
10
MAY Y0086716
11
MAY Y0088874
12
MAY 0311837
13
MAY Y0088570
14
MAY Y63684
15
MAY 0311832
16
MAY Y0311836
17
WPY0060872 Whirlpool Drip Pan
18
MAY Y0311830
19
MAY 0311853
20
MAY Y0311833
21
MAY Y0311834
22
MAY Y0310167
23
MAY Y0311811
24
MAY 0311810
25
MAY Y0087020
←
