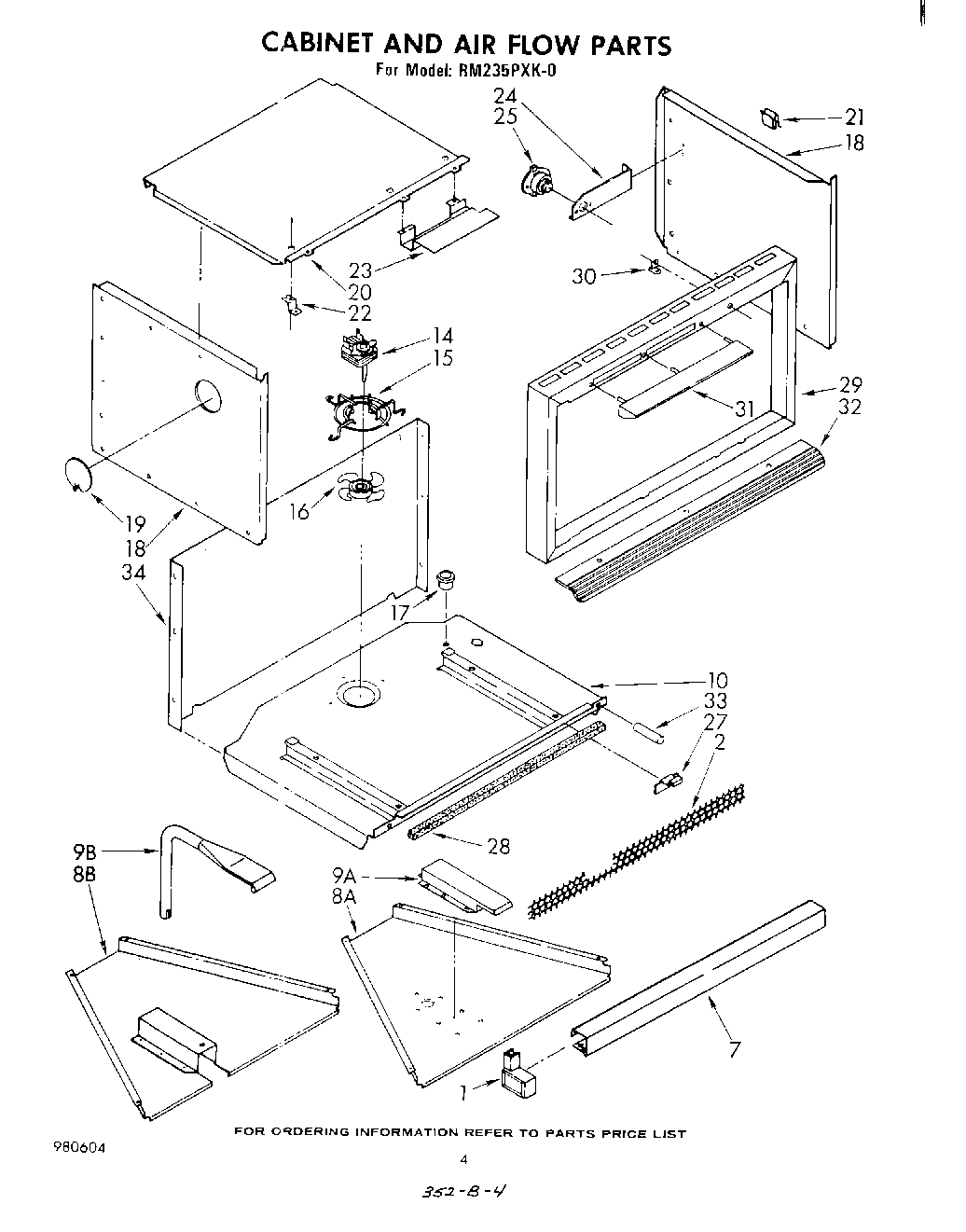

RM235PXK0 03 – CABINET AND AIR FLOW

Products

Position	Product
1	Screw (2)
1	End Cap, L.H.
1	End Cap, R.H.
7	Trim, Front
7	Screw, 10-32 x 1/2
7	Panel, Side L.H. (Screw, 10A x 1/2 (2))
8	Box Air
8	WPL 329829
9	Vent Channel
9	Vent Tube
10	Support Plate
14	Motor, Fan (Alternate)
14	Motor Fan (Alternate)
15	Mount, Fan Motor
15	Nut, Hex 6-32 (2)
16	Blade, Fan
17	Bushing, Wire
18	Side Panel, L.H.
18	Side Panel, R.H.
19	Cover, Light
20	Panel, Top
21	Clip (2)
22	Bracket, Support
23	Probe, Shield
24	Screw
24	Bracket, Heat Sensor
25	Thermostat
27	Screw
27	Bracket, Front Support
28	Seal Foam
29	Frame, Outer
30	Screw, 10A x 1/2 (2) (Black)
30	Bracket, Control Panel Mounting
31	Pushnut, Ziptwist (3)
31	WPL 309499
32	Hood, Lower Vent
32	WP488627 Whirlpool Refrigerator Screw
33	Screw, 10A x 1-5/8 (2)
33	Silicone Rubber Gasket (For Key 26)
34	Cover, Rear
34	WP308685 Whirlpool Microwave Screw
