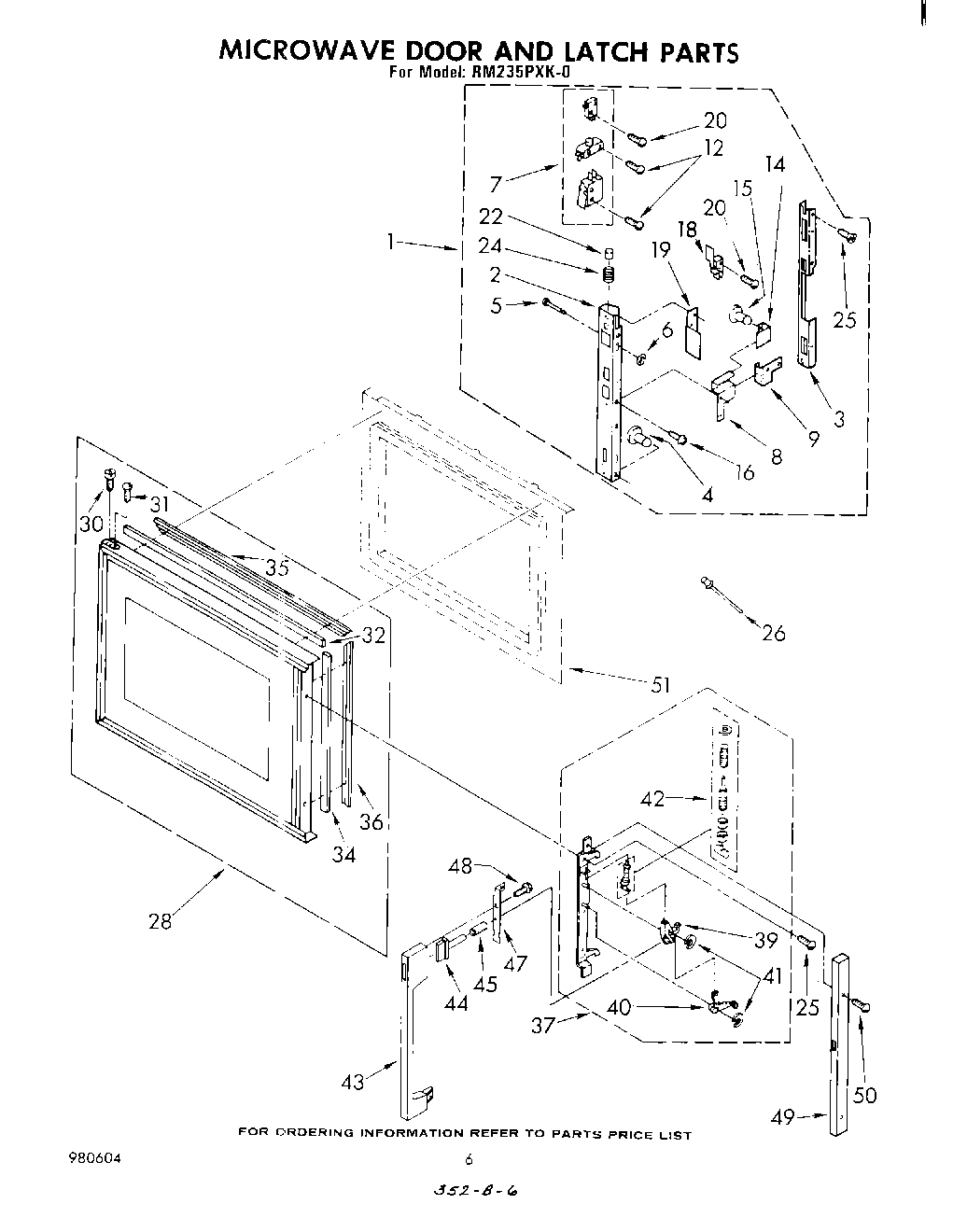

RM235PXK0 04 – MICROWAVE DOOR AND LATCH

Products

Position	Product
1	Interlock Assembly
2	Guide, Channel (Not a Serviceable Part)
3	Slide, Channel (Not a Serviceable Part)
4	Spacer (4)
5	Pin, Roller (2)
6	Ring, Retaining (2)
7	WPW10017410 Whirlpool Fuse
7	Switch Kit, Door (Kit Contains Primary, Monitor & Secondary Switches. All Three (3) Switches Must Be
8	Bracket, Primary Switch
9	Insulator, Switch (Top)
12	Screw
14	Foam Strip 14“ x 3/8“ x 1/2“xxx
15	WPL 310951
16	WPL 310629
18	Switch, Light (Alternate)
18	Switch, Light
19	WPL 310154
20	Screw, 4-40 x 10 (2)
22	WPL 310124
24	Rear Top Burner-Rt. or Lt. (Inc`s. 32 & 33)
25	WPL 309080
26	Rivet, Pop (3)
28	door, complete
30	WPW10068250 Whirlpool Dishwasher Screw
32	Seal, Top & Bottom (2) (Alternate)
32	Seal, Top & Bottom (2) (Alternate)
34	Seal, Sides (Alternate)
34	Seal, Sides (Alternate)
35	Retainer, Top & Bottom Seals (2)
36	Retain, Side Seal (2)
37	Latch, Door
39	Cam
40	WPL 310120
41	WPL 310386
42	plunger, latch
43	Handle, Door
44	Button, Door Handle
45	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
47	Bracket, Door Handle
48	WP489128 Whirlpool Refrigerator Screw
49	End Cap, Door
50	Screw, 8-32 x 5/16 (2)
