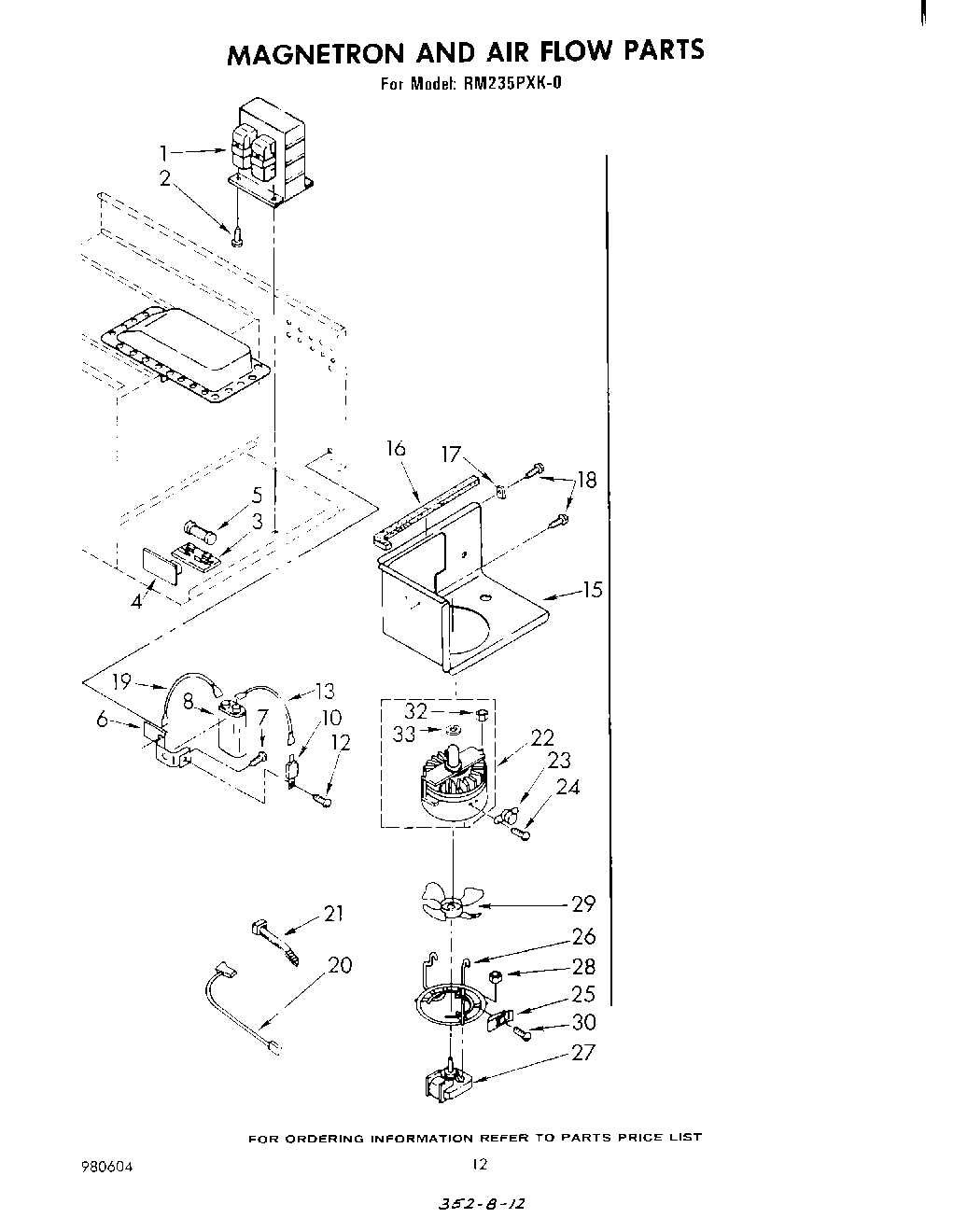

RM235PXK0 07 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Transformer
2Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
3Block, Fuse
4Shield, Fuse
5WPW10017410 Whirlpool Fuse
6Bracket, Capacitor
7Main Chassis (Screw, 10-32 x 1/2)
8Cabinet Side (Right)
8Cabinet Side (Left)
10Rectifier, High Voltage
12WPL 310629
13WPL 311466
15Duct, Cooling Air
16WP854334 Whirlpool Air Conditioner Sealing Strip
17Clip (2)
18WP965173 Whirlpool Dishwasher Screw
19WPL 311467
20Wire, High Voltage (Capacitor)
21WPW10339879 Whirlpool Wire Tie
22Magnetron (Alternate)
22magnetron (alternate)
23Thermostat
24Screw
25fastener, speed nut
26mount, fan motor
27Transmotor
27Transmotor (Alternate)
28Nut
29Blade, Fan
30SCREW
32Flange Nut (4)
33Gasket, Magnetron (Use W/Panasonic Magnetron)
