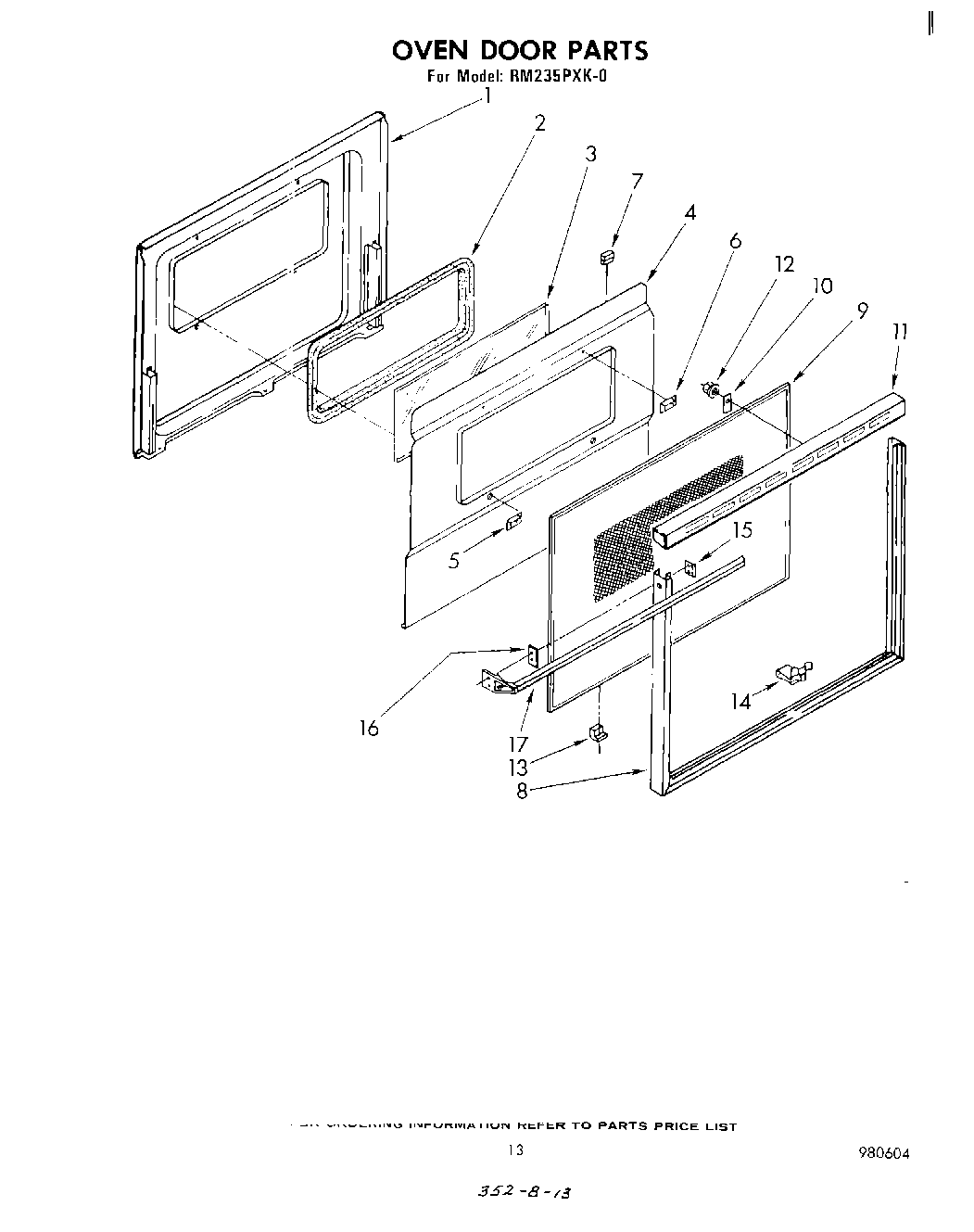

RM235PXK0 08 – OVEN DOOR

Products

Position	Product
1	Clip (2)
1	Liner, Door
1	Screw (3)
2	seal, pano glass
3	glass, inner 30“
4	baffle, insulation
6	WP308685 Whirlpool Microwave Screw
6	spacer, insulation baffle (4)
7	channel, rubber (4)
8	frame, door 30“
9	Glass, Outer
10	hold down, glass (2)
11	Screw, 10A x 1/2 (2) (Black)
11	Top, Door Frame
12	WP90296 Whirlpool Clip
13	Cushion, Oven Door (3)
14	clip, glass (10)
15	screw (3)
16	Spacer, Door Handle (2)
17	WP912618 Whirlpool Dishwasher Screw
17	Handle, Oven Door
