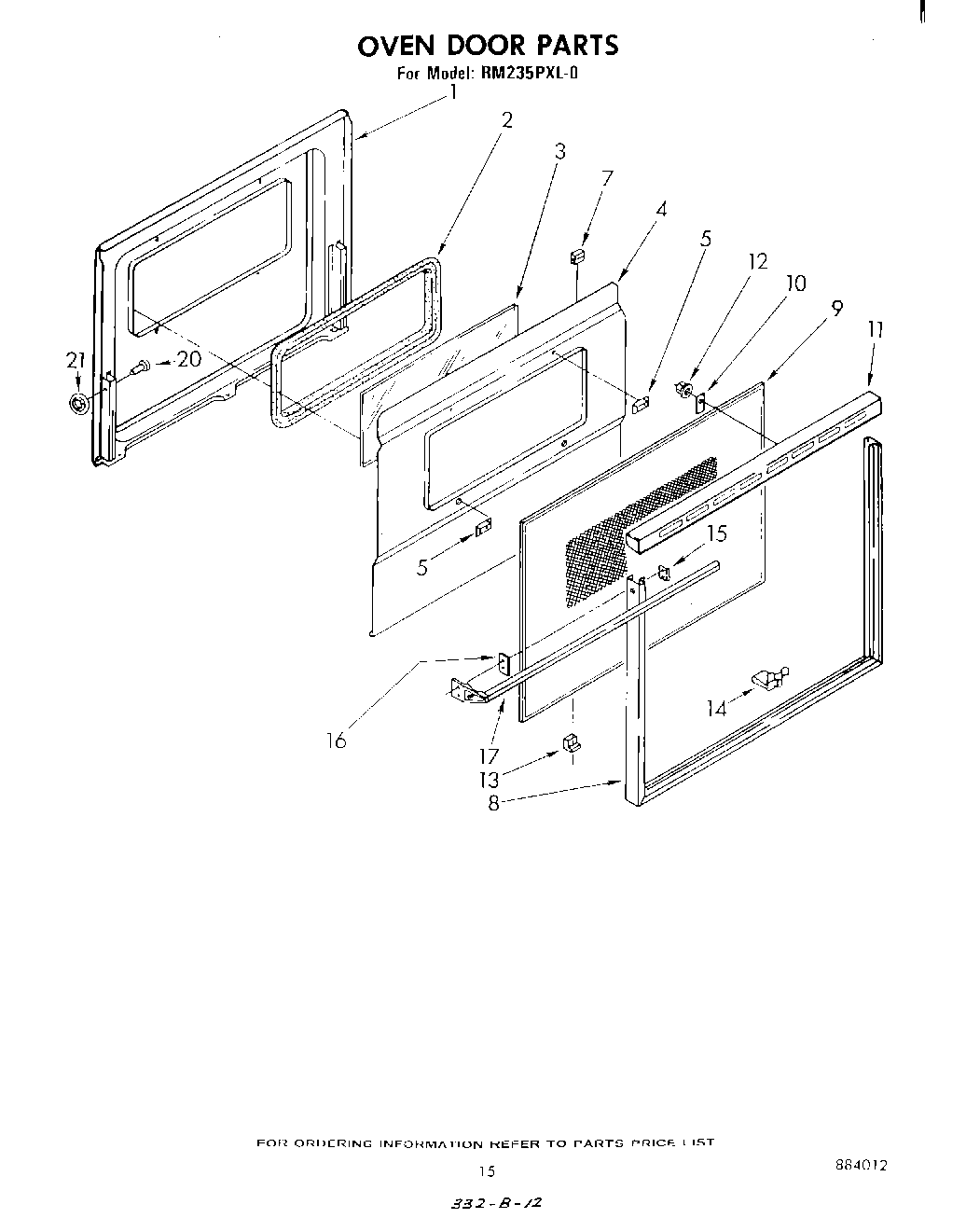

RM235PXL0 09 – OVEN DOOR

Products

Position	Product
1	liner, door
1	WP308685 Whirlpool Microwave Screw
1	Screw (3)
2	seal, pano glass
3	glass, inner 30“
4	baffle, insulation
5	spacer, insulation baffle (4)
7	channel, rubber (4)
8	frame, door 30“
9	Glass, Outer
10	hold down, glass (2)
11	Top, Door Frame
11	Screw, 10A x 1/2 (2) (Black)
12	WP90296 Whirlpool Clip
13	Seal, Foam
14	clip, glass (10)
15	screw (3)
16	Spacer, Door Handle (2)
17	WP912618 Whirlpool Dishwasher Screw
17	Handle, Oven Door
20	pin, wedge (2)
21	pushnut (2)
