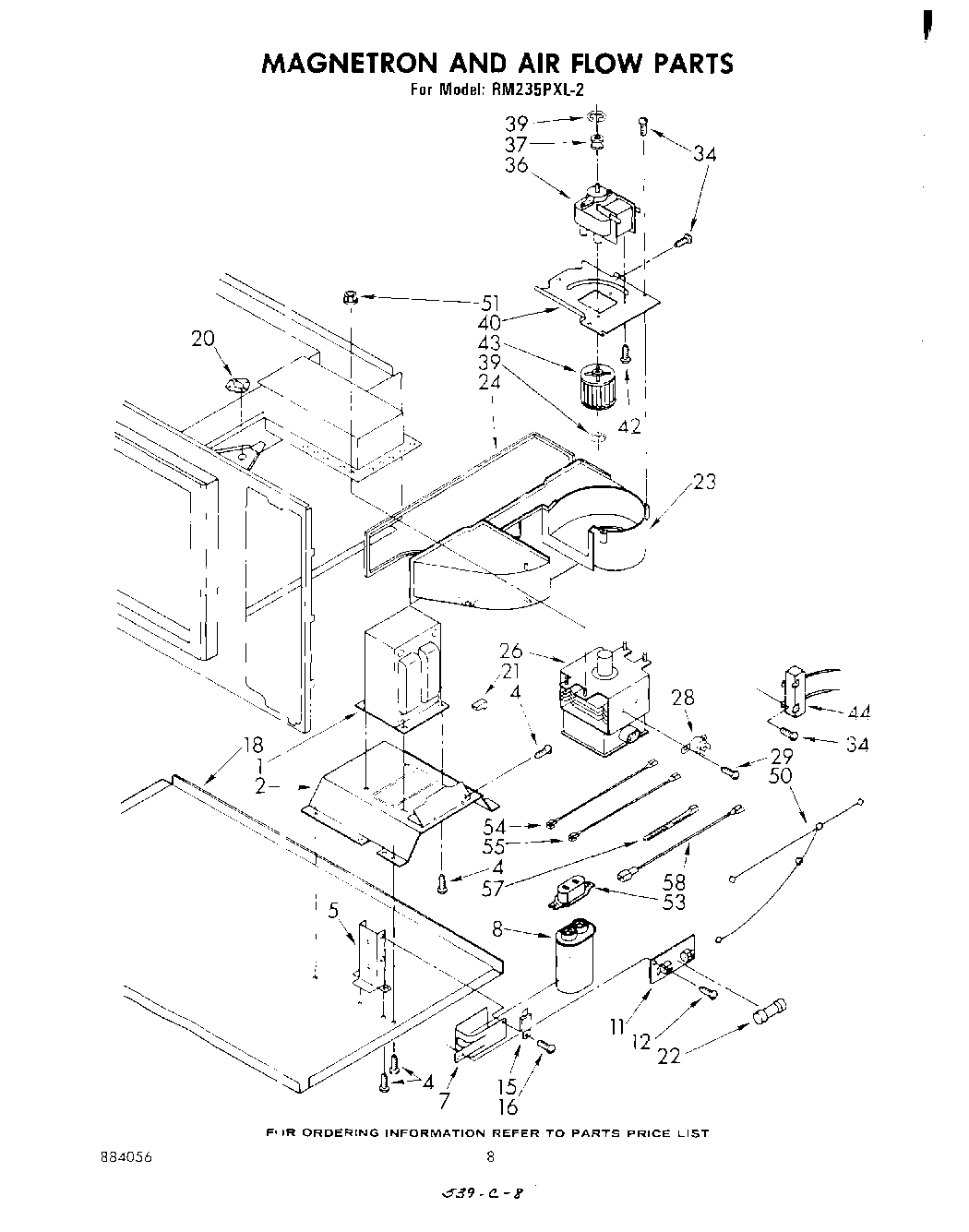

RM235PXL2 05 – MAGNETRON AND AIRFLOW

RM235PXL2 05 – MAGNETRON AND AIRFLOW

Written by

in

RM235PXL2 05 – MAGNETRON AND AIRFLOW

Products

PositionProduct
1Transformer (Alt.)
1Transformer (Alt.)
2Bracket, Transformer
4Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5Bracket, Capacitor
7Strap, Capacitor
8Capacitor (Alt.)
8capacitor (alt.)
11Screw (2)
12WP489069 Whirlpool Compactor Screw
15Rectifier, High Voltage
16screw
18Base, Chassis (Not Serviceable)
20Screw
20Thermostat
21Housing Receptacle
22WPW10017410 Whirlpool Fuse
23Air Duct (Horizontal)
24SEAL
26Magnetron (Alt.)
26Magnetron (Alt.)
26Magnetron (Alt.)
28Thermostat
29Screw
36Transformer (Alternate)
36Transformer (Alternate)
37Pulley, Motor
39“E“ Ring
40Bracket, Motor
42WP486579 Whirlpool Air Conditioner Screw
43Wheel, Blower
44Reed Relay (Alt.)
44Reed Relay (Alt.)
50Screw, 11-16 x 1/2 Double Load Space Thread (5)
50Screw
50Cable, Support
50Clip, Harness
51Flange Nut (4)
53Cover, Capacitor
54Jumper, High Voltage (Black 5-1/2“)
55Jumper, High Voltage, Red (7-7/8“)
57WPW10339879 Whirlpool Wire Tie
58High Voltage Lead, Gray 6-3/4“ (2)
