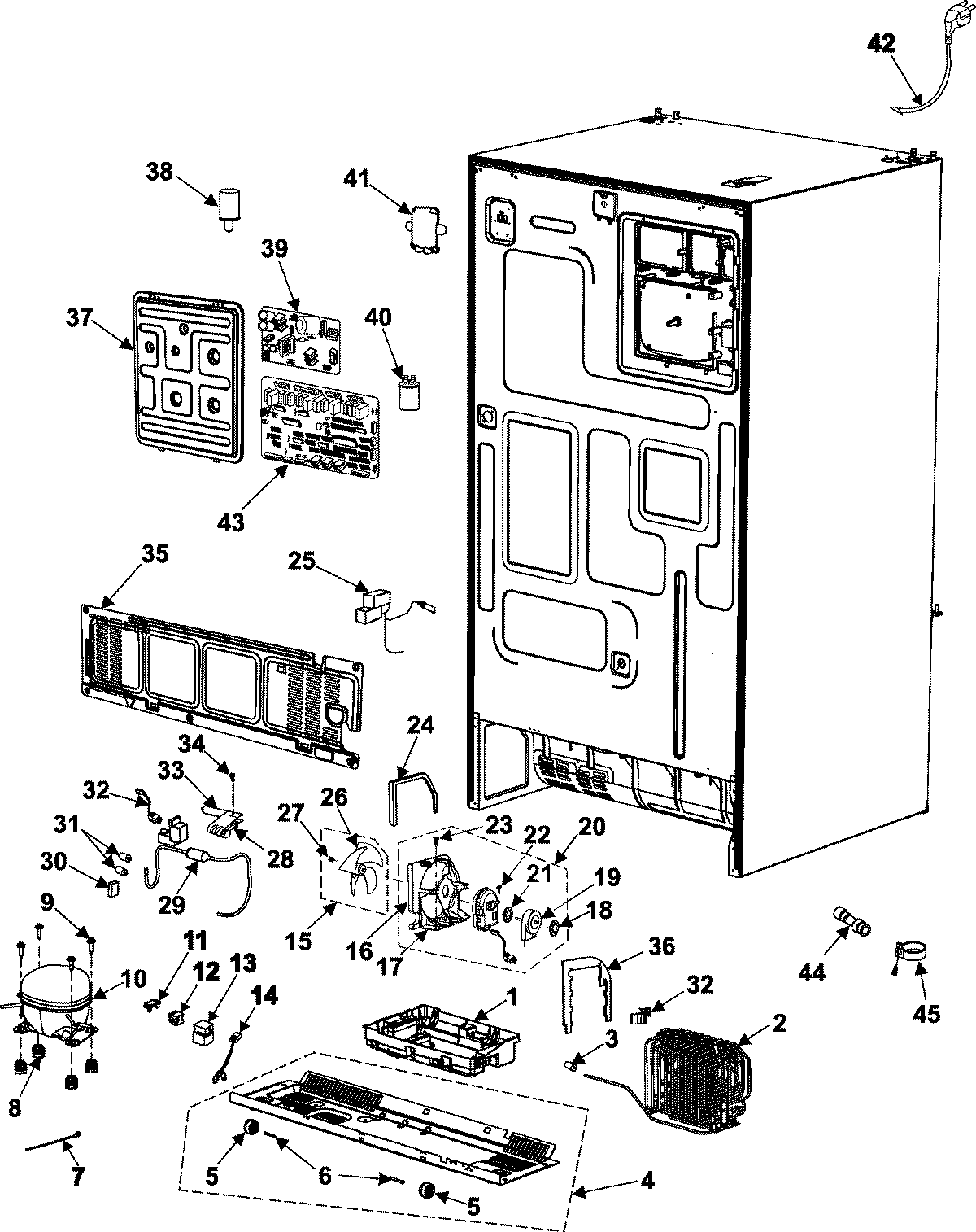

RM255LABP 10 – MACHINE COMPARTMENT-COMPRESSOR

Products

Position	Product
1	MAY 6009-001252
1	MAY DA97-03146A
2	MAY DA63-40128A
2	MAY DA97-03137A
3	MAY DA63-40171B
4	MAY DA97-02064A
6	MAY DA60-90146A
7	MAY DA39-20389E
8	MAY DA63-02908A
9	MAY DA60-20008A
10	MAY W10126766
10	MAY DA96-00036B
11	MAY DA35-10013Q
12	MAY DA34-10003S
13	MAY DA63-01866A
14	MAY DA39-00084D
15	DA31-00010D Samsung Refrigerator Fan Blade
16	MAY DA61-02355A
17	MAY DA61-02349A
18	MAY DA63-01808A
19	DA31-00146B REF CONDENSER FAN MOTOR
20	MAY DA97-03145A
21	MAY DA63-01146A
22	MAY DA63-40167A
23	MAY 6003-000003
25	MAY DA31-00112A
25	MAY DA61-02351A
25	MAY DA97-03125A
25	MAY DK31-00005B
27	MAY DA61-20128A
28	SEE NOTE GROUND WIRE, GREEN
29	MAY DA97-03433A
29	MAY DA61-02587A
30	MAY DA72-60040W
31	MAY DA63-40171D
32	MAY DA63-02907A
33	MAY DK71-00025C
34	MAY 6002-000213
35	MAY DA97-01947C
35	MAY DA62-00719M
36	MAY DA62-01034A
37	MAY DA97-03307A
38	MAY DA27-00009B
39	MAY DA41-00320A
40	MAY 2501-001045
41	MAY DA63-00586A
42	MAY DA39-10165E
43	MAY DA41-00318A
44	MAY DA62-20111C
45	MAY DA65-20110B
