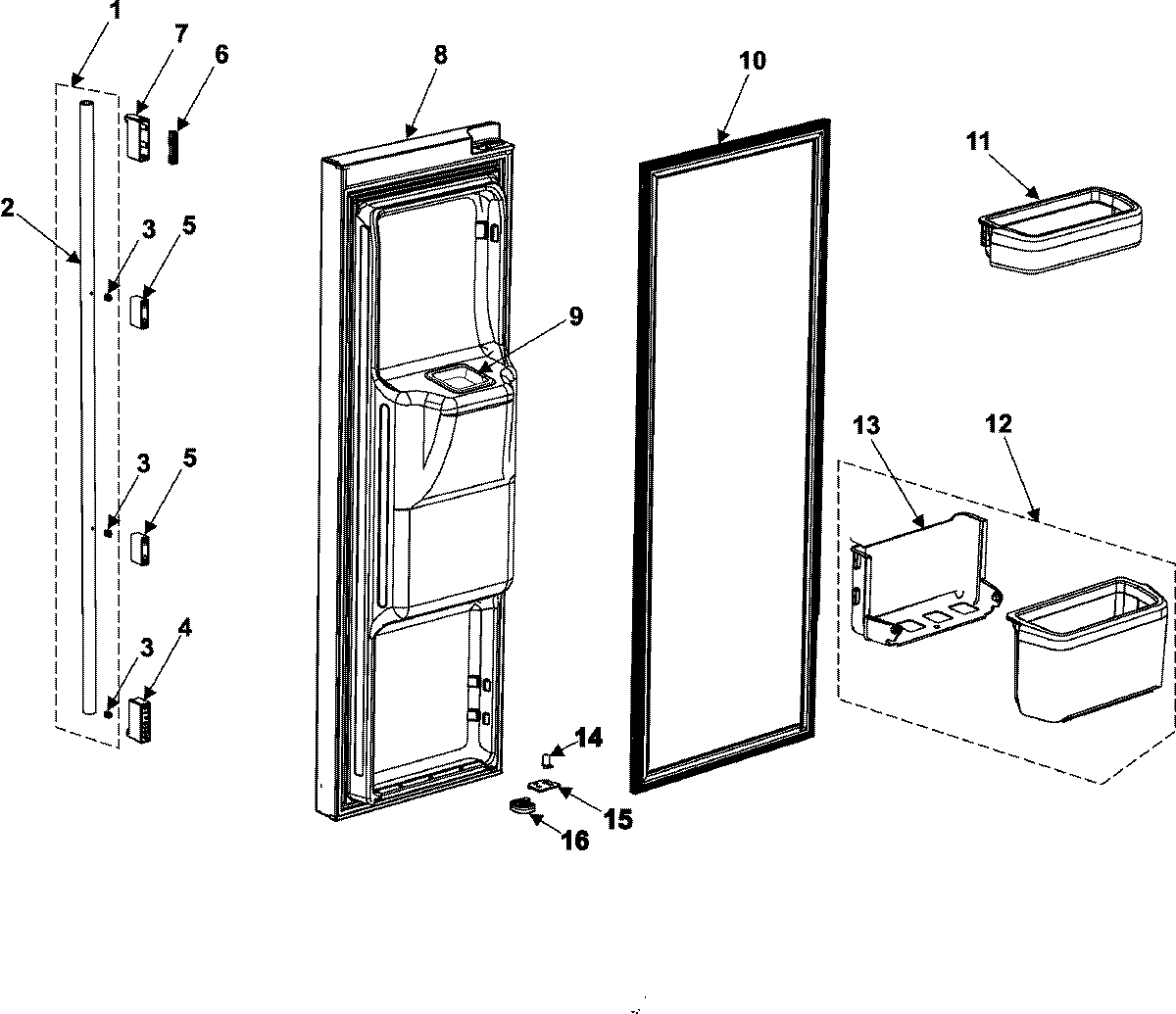

RM255LASH 06 – FREEZER DOOR

RM255LASH 06 – FREEZER DOOR

Written by

in

RM255LASH 06 – FREEZER DOOR

Products

PositionProduct
1MAY DA97-03123B
2MAY DA64-01588D
3MAY DA63-00789A
4MAY DA67-01267A
5MAY DA61-00264T
6MAY DA61-00831A
7MAY DA67-00773F
8MAY DA63-02906A
8MAY DA91-02102B
9MAY DA67-01268A
10MAY DA97-01800U
11MAY DA97-03099A
12MAY DA97-03141A
14SEE NOTE GROUND WIRE, GREEN
15MAY DA61-02373A
16MAY DA61-02383A
