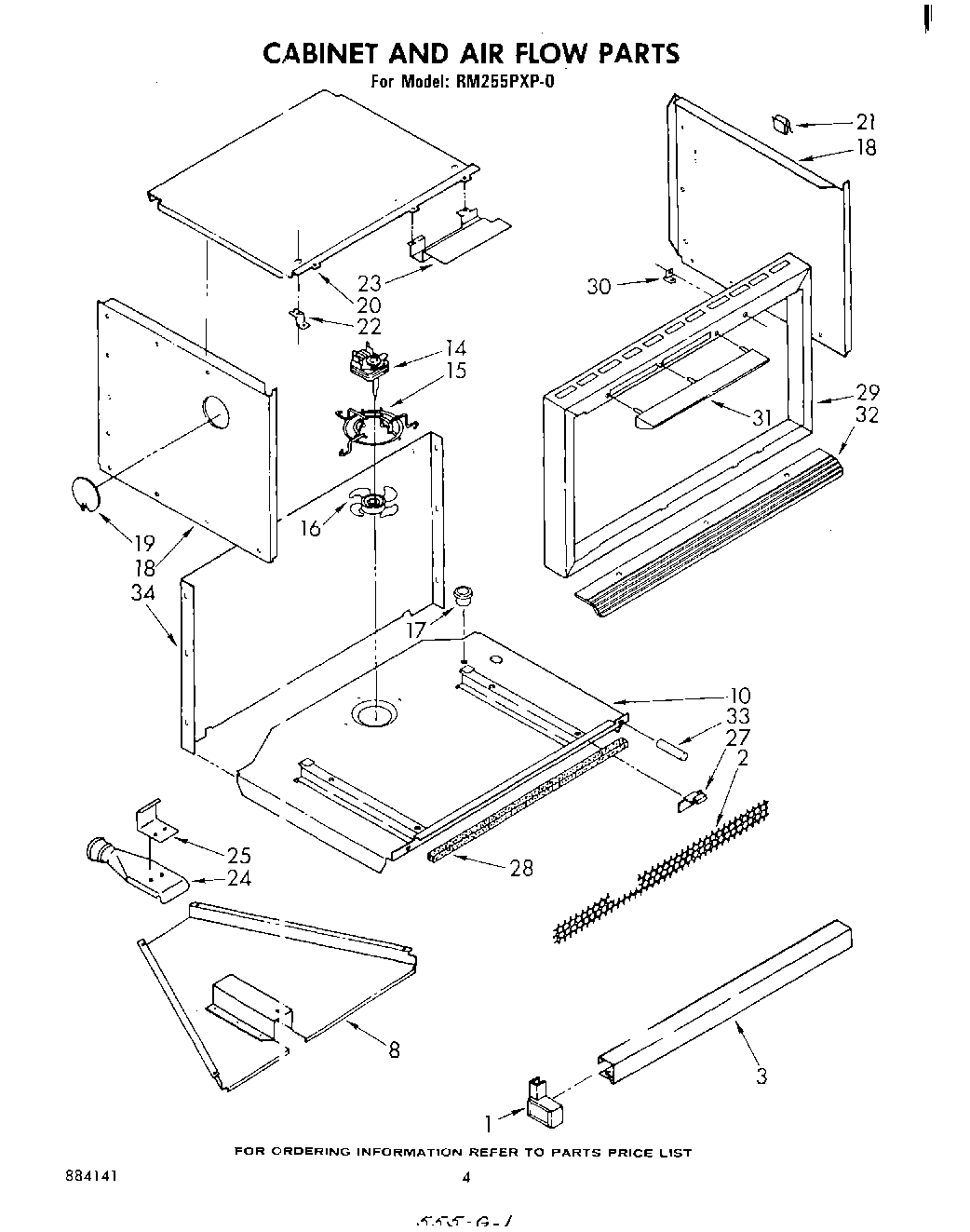

RM255PXP0 03 – CABINET AND AIRFLOW

Products

Position	Product
1	End Cap, R.H.
1	End Cap, L.H.
1	Panel, Side L.H. (Screw, 10A x 1/2 (2))
2	Trim, Oven Vent
3	Screw
3	Screw, 10-32 x 1/2
3	Trim, Front
8	WPL 329829
10	Support Plate
14	Nut, Hex 6-32 (2)
14	Motor, Fan (Alternate)
14	Motor Fan (Alternate)
14	Motor Fan
15	Mount, Fan Motor
16	Blade, Fan
17	Bushing, Wire
18	Side Panel, R.H.
18	Side Panel, L.H.
19	Cover, Light
20	Panel, Top
20	Clip (2)
21	Clip
22	Bracket, Support
23	Probe, Shield
24	Vent Tube
25	Screw,
25	Support, Vent Tube
27	Screw
27	Bracket, Front Support
28	Seal Foam
29	Frame, Outer
30	Bracket, Control Panel Mounting
30	Screw, 10A x 1/2 (2) (Black)
31	WPL 309499
31	Pushnut, Ziptwist (3)
32	Hood, Lower Vent
32	WP488627 Whirlpool Refrigerator Screw
33	Silicone Rubber Gasket (For Key 26)
33	Screw, 10A x 1-5/8 (2)
34	WP308685 Whirlpool Microwave Screw
34	Cover, Rear
