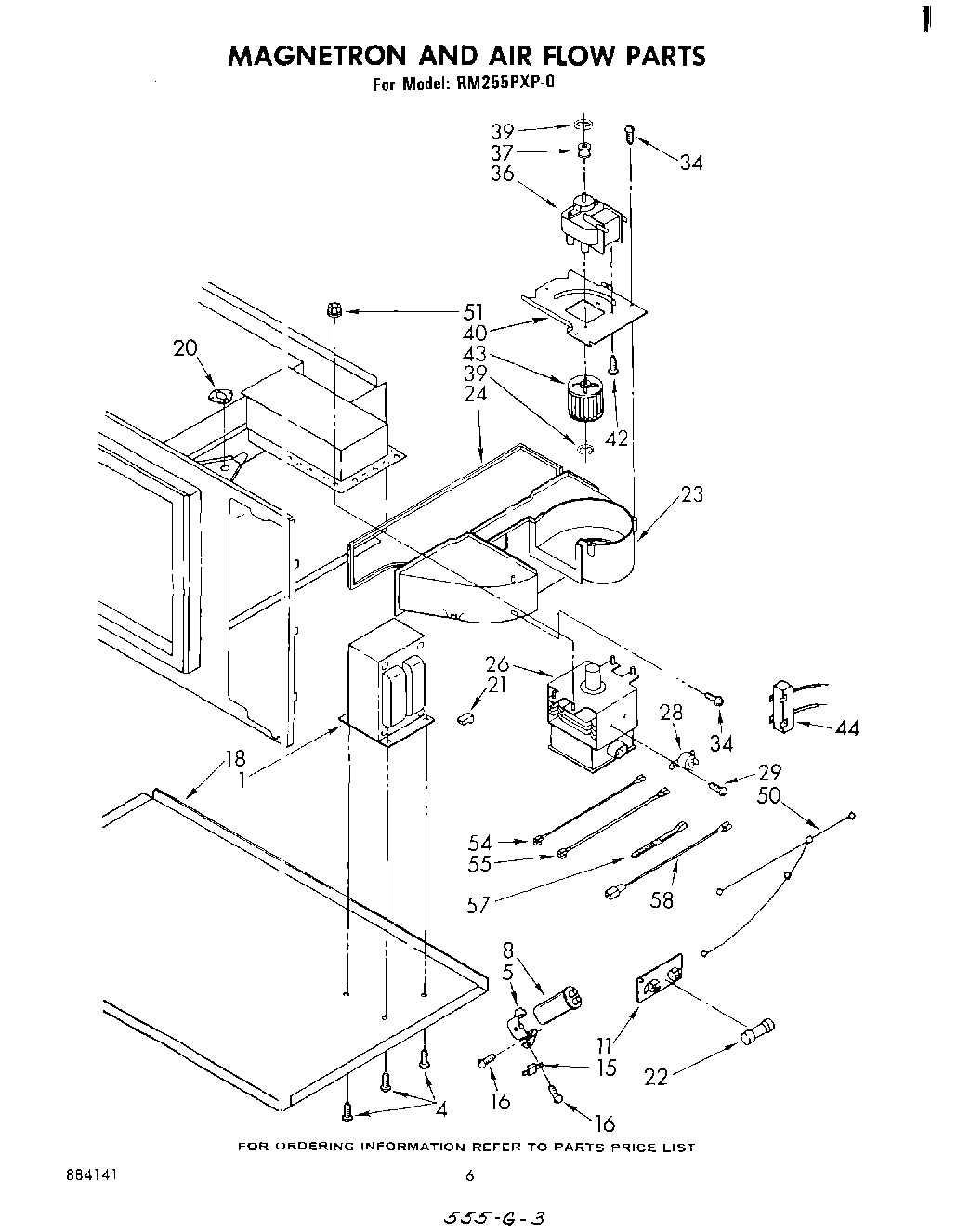

RM255PXP0 04 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Transformer (Alt.)
1	Transformer (Alt.)
1	Transformer
4	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5	Bracket, Capacitor
8	capacitor (alt.)
8	Capacitor
8	Capacitor (Alt.)
11	Block, Fuse
15	Rectifier, High Voltage
18	Base, Chassis (Not Serviceable)
20	screw
20	Thermostat
21	Housing Receptacle
22	WPW10017410 Whirlpool Fuse
23	Air Duct (Horizontal)
24	SEAL
26	Magnetron (Alt.)
26	Magnetron
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
28	Thermal Protector (Alt.)
28	Thermal Protector (Alt.)
28	Thermal Protector
29	Screw, 6A x 3/8 (2)
36	Transmotor
36	Transformer (Alternate)
36	Transformer (Alternate)
37	Pulley, Motor
39	``E`` Ring
40	Bracket, Motor
42	WP486579 Whirlpool Air Conditioner Screw
43	Wheel, Blower
44	Screw 6-32 (6)
44	Clip, Harness
44	SCREW
44	Screw
44	Screw, 11-16 x 1/2 Double Load Space Thread (5)
44	Reed Relay (Alt.)
44	Reed Relay (Alt.)
44	Reed Relay
50	Cable, Support
51	Flange Nut (4)
54	Jumper, High Voltage (Black 6-5/16``)
55	Jumper, High Voltage Red (6-5/16``)
57	WPW10339879 Whirlpool Wire Tie
58	High Voltage Lead, Gray 6-3/4`` (2)
