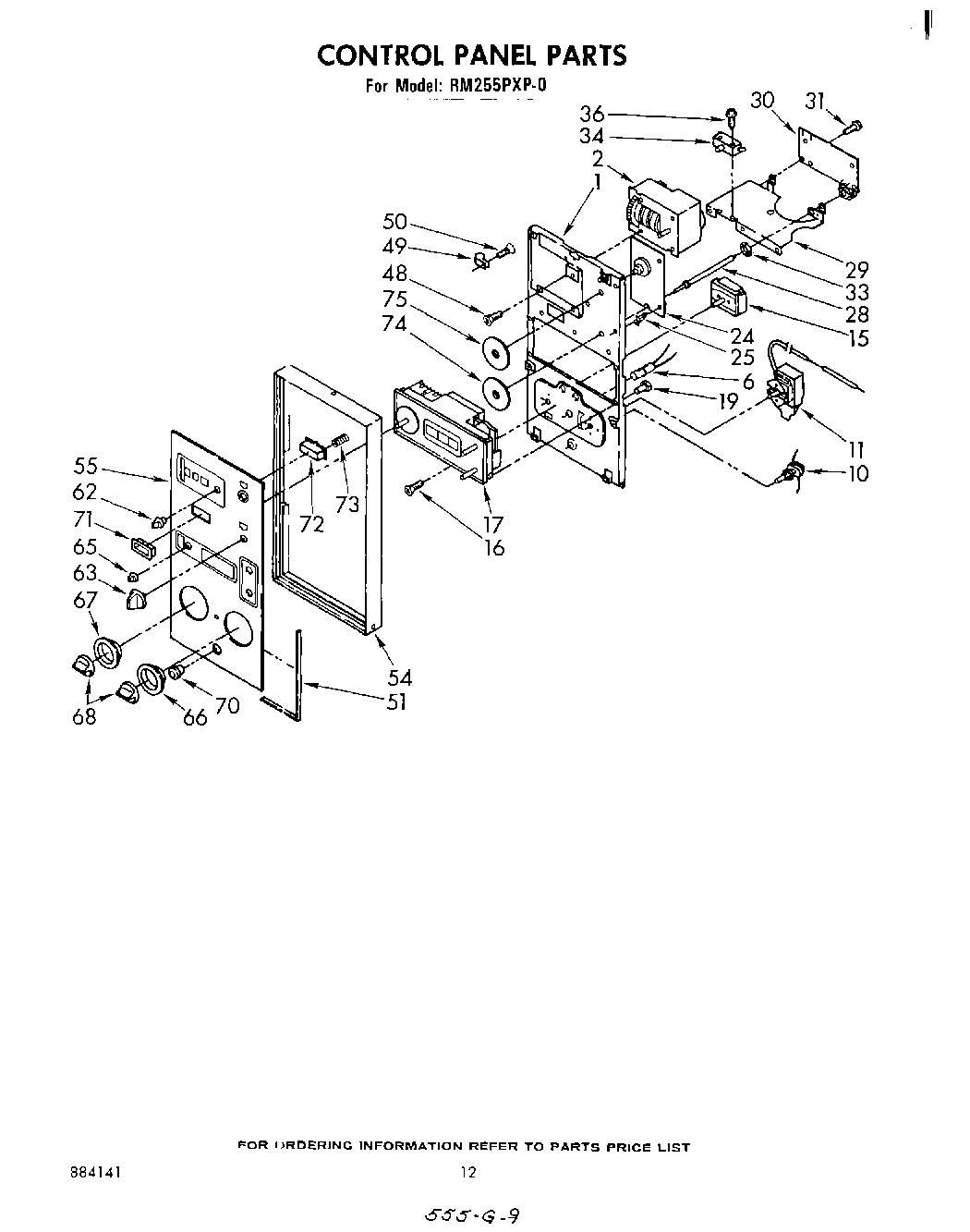

RM255PXP0 07 – CONTROL PANEL

Products

Position	Product
	Screw (2)
1	Screw
1	Bracket, Control Mounting
2	WP965173 Whirlpool Dishwasher Screw
2	Timer, Digital
2	panel, top (screw, 10a x 3/8 (3))
6	Indicator Light 250V (3)
10	Support-Storage Drawer (Lt. or Rt.)
10	Washer, Internal Lock
11	Thermostat
11	Thermostat (Lower Oven) (Alternate)
11	Thermostat (Lower Oven) (Alternate)
15	Selector Switch (4 Position)
16	Screw, 8-32 x 3/16 (2)
17	Timer, Digital (Included No.14)
19	Nut, Aluminum (4)
24	P.C. Board (Temp Control)
25	WPL 313087
28	Shaft, Potentiometer
29	Bracket, P.C. Board
30	Oven Thermostat
31	WPL 309080
33	Palnut
34	Switch, Push-To-Start
36	Screw
49	WP308605 Whirlpool Refrigerator Clamp
50	screw
51	Seal, Foam (2)
54	Screw, 8-18BT x .88 (2)
54	Frame, Control Panel
55	Panel, Control
62	Knob, Digital
63	Knob, Assembly (2)
65	Spring (3)
65	WP3169181 Whirlpool Knob
66	Escutcheon, Thermostat
67	Screw,
67	WP311069 Whirlpool Oven Dial
68	WP3150371 Whirlpool Control Knob
70	Bezel Switch (1)
71	Burner Box Bottom
72	Button, Start
73	Spring (2)
74	Skirt, Dial
75	Skirt, Dial
