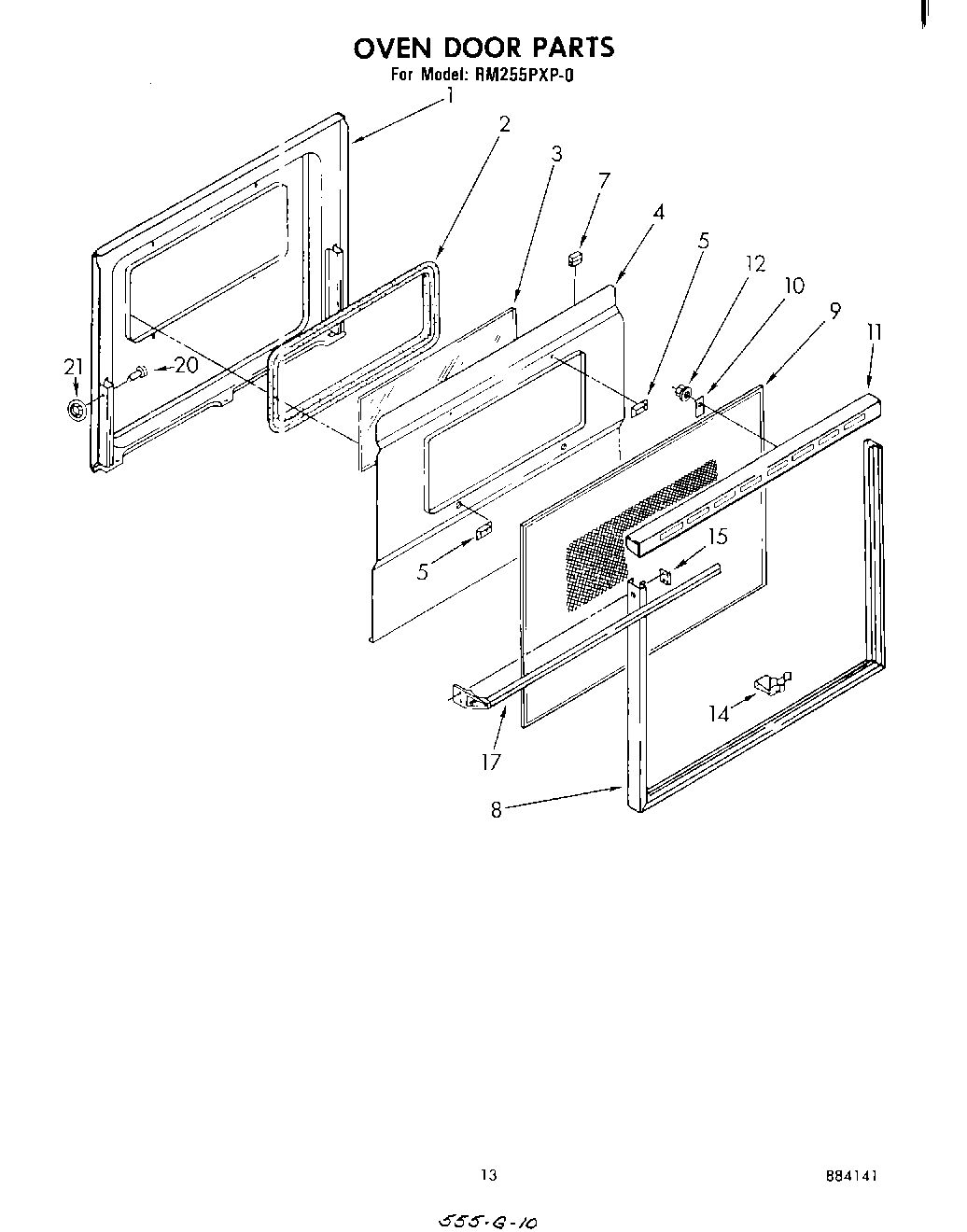

RM255PXP0 08 – OVEN DOOR

Products

Position	Product
1	liner, door
1	Screw (3)
2	seal, pano glass
3	glass, inner 30“
4	baffle, insulation
5	spacer, insulation baffle (4)
7	Channel, Rubber (4)
8	frame, door 30“
9	Glass, Outer
10	hold down, glass (2)
11	Screw, 10A x 1/2 (2) (Black)
11	Top, Door Frame
12	WP90296 Whirlpool Clip
14	clip, glass (10)
15	screw (3)
17	WP912618 Whirlpool Dishwasher Screw
17	Handle, Oven Door
20	pin, wedge (2)
21	pushnut (2)
