RM255PXP0 10 – LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT311436
	Cookbook
	Use & Care Guide
	Use & Care Guide (Microwave)
	Tech Sheet
	List, Repair Parts

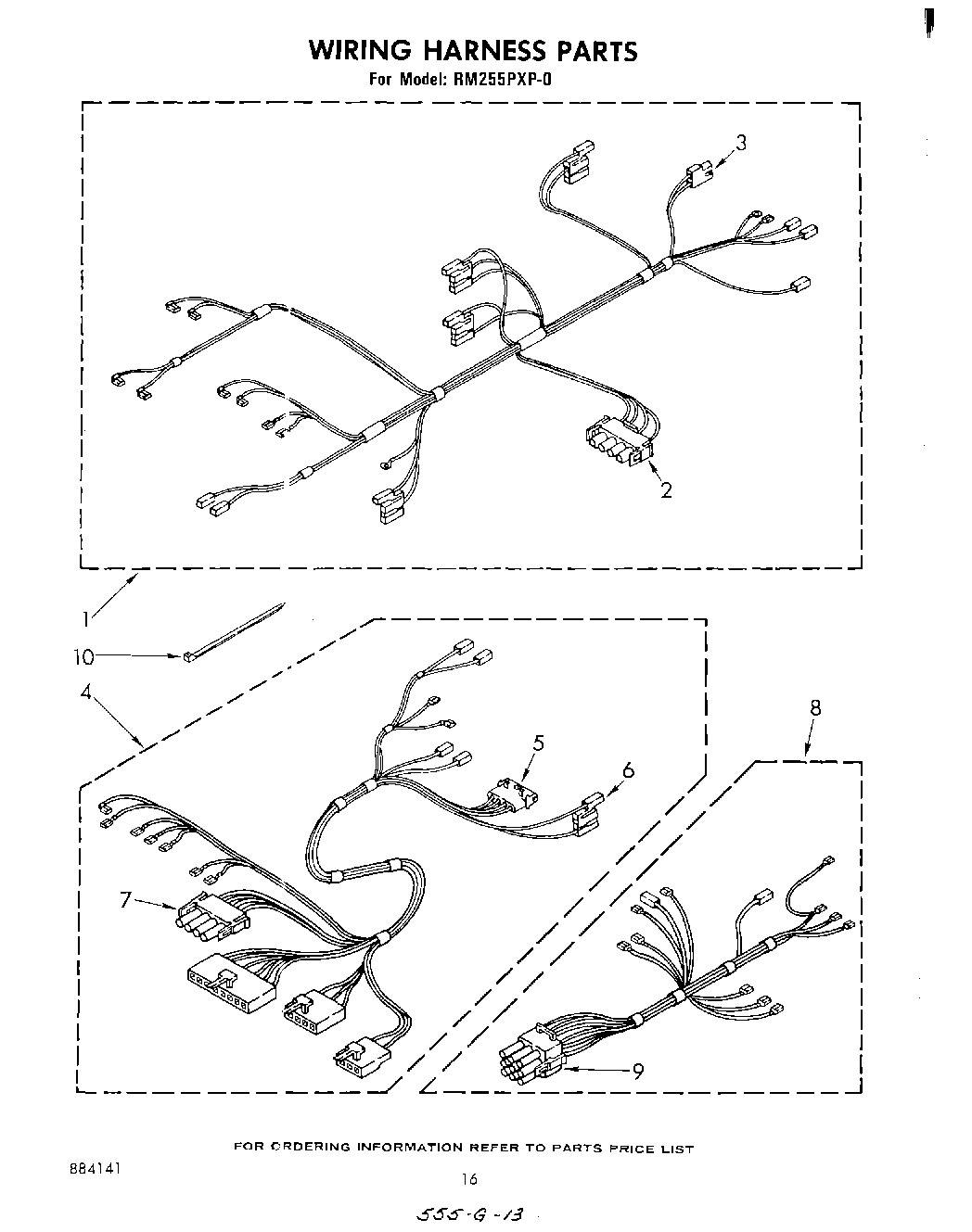

	WPL LIT313358
1	Harness, Wiring (Main)
1	Screw, 80 x 5/16
2	Disconnect Block (4 Terminal)
3	Receptacle, Latching (2-Way) (Uses Terminal 94614)
4	Harness, Wiring (Control)
5	Disconnect Block, Female
6	Connector (Door Switch)
7	plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
8	Harness, Wiring (Select/Therm)
9	Plug, Male
10	Wire (14 Ga. 150 c Blue)
10	242831 Whirlpool Oven Wire
10	WP482338 Whirlpool Refrigerator Adhesive
10	WPW10339879 Whirlpool Wire Tie
10	18 Ga. 80~c Rating (Red)
10	Wire, 25`` Roll (White 14 GA.)
10	Wire, 25` Roll (Red 14 Ga.)
10	Wire, 25` Roll (Black 14 Ga.)
10	WPW10208653 Whirlpool Insulation
10	WPL 799832
10	Wire (14 Ga. 150 c Brown)
10	Browning Tray (Micro)
10	Wire (14 Ga. 200 c Brown)
10	1
10	Wire (12 Ga. 150 c Black)
10	Rotisserie Kit
10	Grease
10	Wire (14 Ga. 150 c Yellow)
10	WP75614 Whirlpool Connector
10	Wire (14 Ga. 150 c Orange)
10	Wire (14 Ga. 150 c Green)
10	WPL 591014
