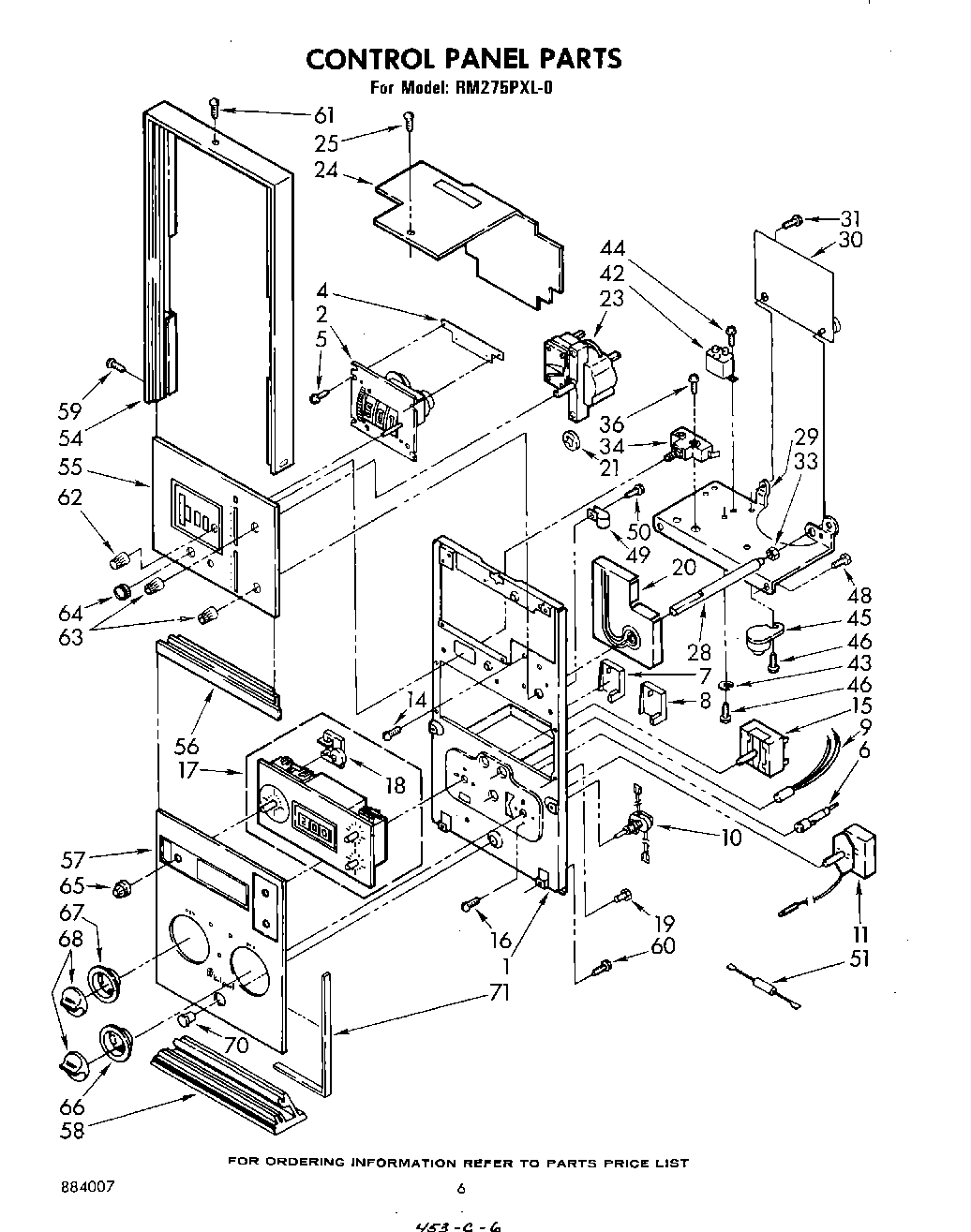

RM275PXL0 04 – CONTROL PANEL

Products

Position	Product
1	Bracket, Control Mounting
2	Timer, Digital (Microwave)
4	panel, top (screw, 10a x 3/8 (3))
4	WPL 311224
6	Indicator Light
7	Switch, Broil
8	WPL 311585
9	Light, Indicator 250V (6)
10	Support-Storage Drawer (Lt. or Rt.)
11	Thermostat (Lower Oven)
14	screw, 6-32 x 1/4 (2)
15	Selector Switch
16	Screw, 8-32 x 3/16 (2)
17	Timer, Digital (Includes Illus. 29)
18	Motor, Timer
19	Nut, Aluminum (4)
20	Indicator, Information Control
21	Clip, Push-On (3)
23	Indicator, Temperature
24	Shield Assembly
28	Shaft, Potentiometer
29	Bracket, P.C. Board
30	Oven Thermostat
31	WPL 309080
33	Palnut
36	Screw
42	Relay, Latching (Alternate)
43	Lockwasher
45	WPL 310351
46	Screw
49	WP308605 Whirlpool Refrigerator Clamp
50	WP965173 Whirlpool Dishwasher Screw
51	Resistor & Terminal Assembly
54	Frame, Control Panel
55	Panel, Control (Upper)
56	Splice, Panel
57	Control Panel, Glass
58	Cap, Control Panel
59	NAMEPLATE
60	WP486754 Whirlpool Compactor Screw
61	Screw
62	Knob, Digital
63	Knob, Assembly (2)
64	SWITCH, PUSH-TO-START SWITCH, PUSH-TO-START
65	knob, timer
66	Escutcheon, Thermostat
67	Screw,
67	WP311068 Whirlpool Dial Knob Black
68	WP3150371 Whirlpool Control Knob
70	bezel, switch (2)
71	Support-Top Burner
