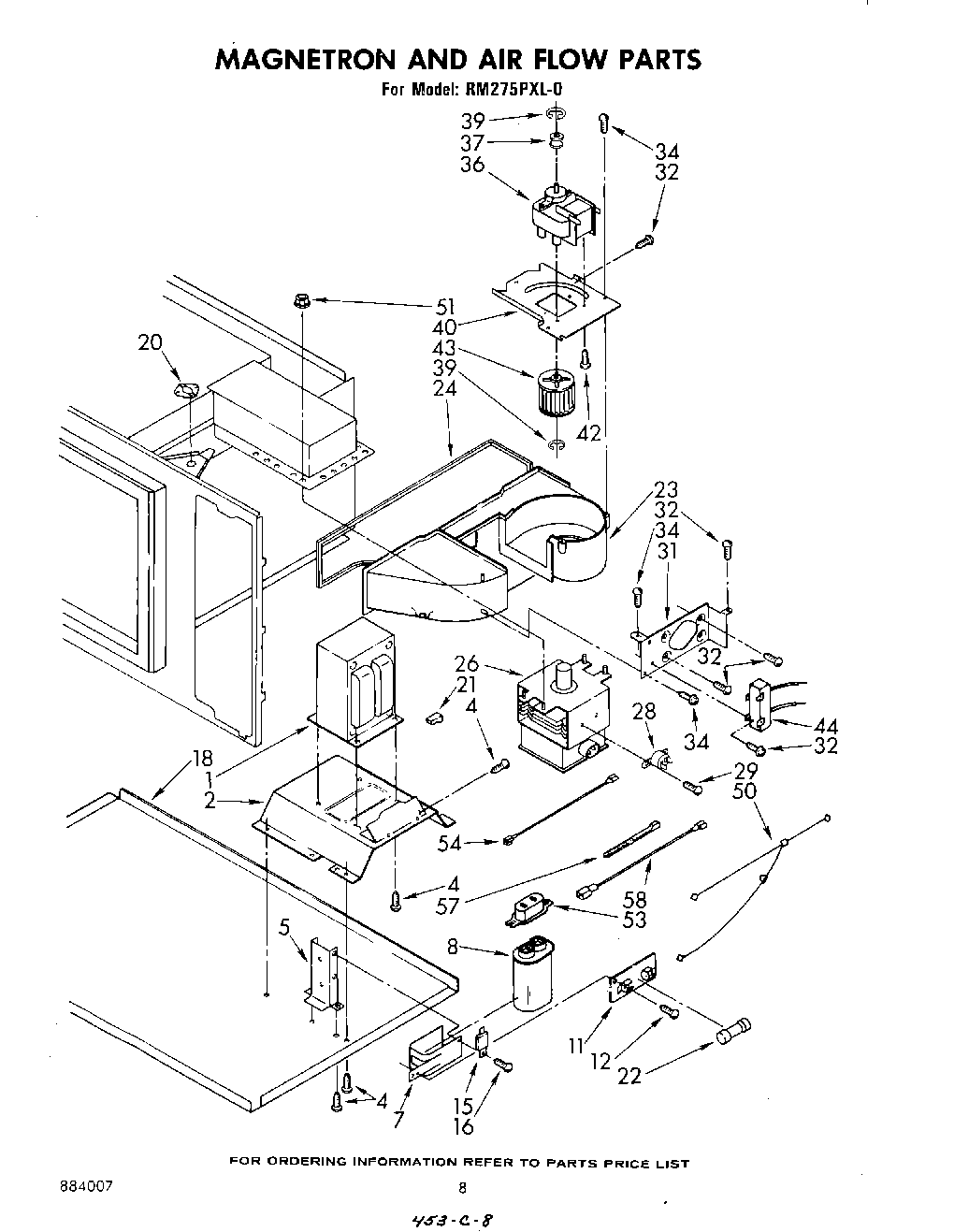

RM275PXL0 05 – MAGNETRON AND AIRFLOW

Products

Position	Product
1	Transformer
2	Bracket, Transformer
4	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5	Bracket, Capacitor
7	Strap, Capacitor
8	Capacitor (Alternate)
8	Capacitor (Alternate)
11	Screw (2)
12	WP489069 Whirlpool Compactor Screw
15	Rectifier, High Voltage
16	WP489128 Whirlpool Refrigerator Screw
18	Base, Chassis (Not Serviceable)
20	Screw
20	Thermostat
21	Housing, Receptical
22	WPW10017410 Whirlpool Fuse
23	Air Duct (Horizontal)
24	SEAL
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
28	Thermostat
29	Screw
31	Mounting Brace, Duct
32	WP90767 Whirlpool Screw
34	Screw, 11-16 x 1/2 Double Load Space Thread (5)
36	Transformer (Alternate)
36	Transformer (Alternate)
37	Pulley, Motor
39	``E`` Ring
40	Bracket, Motor
42	WP486579 Whirlpool Air Conditioner Screw
43	Wheel, Blower
44	Reed Relay (Alternate)
44	Reed Relay (Alternate)
50	Cable, Support
51	Flange Nut (4)
53	Cover, Capacitor
54	Jumper, High Voltage Red 6-3/4`` (2)
57	WPW10339879 Whirlpool Wire Tie
58	High Voltage Lead, Gray 6-3/4`` (2)
