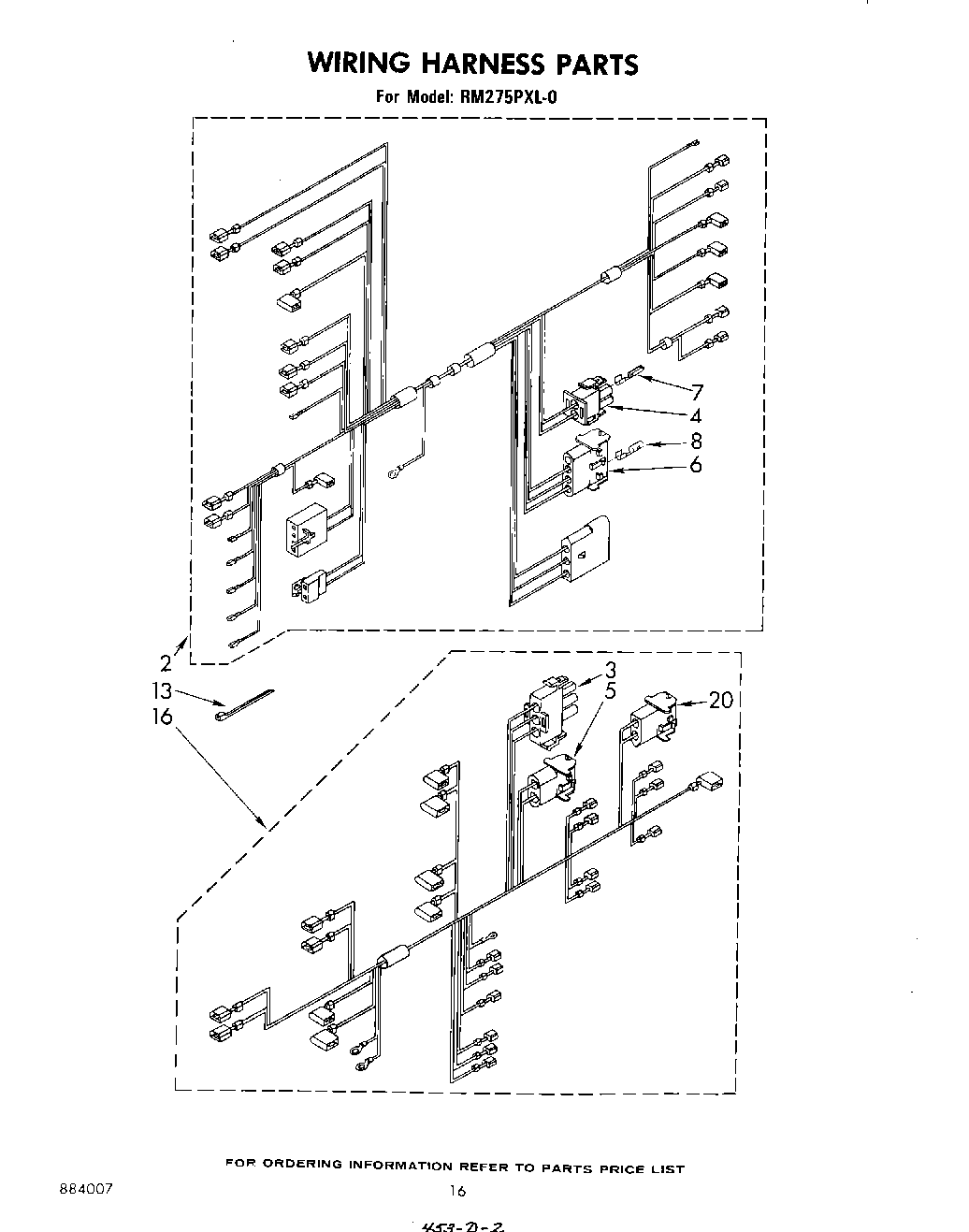

RM275PXL0 10 – WIRING HARNESS , LITERATURE AND OPTIONAL

RM275PXL0 10 – WIRING HARNESS , LITERATURE AND OPTIONAL

Written by

in

RM275PXL0 10 – WIRING HARNESS , LITERATURE AND OPTIONAL

Products

PositionProduct
Almond (Uncut)
799344 Whirlpool Refrigerator Paint
Golden Harvest (Uncut)
Enamel, Black (1 Qt. Uncut)
2Harness, Wiring Control
3Disconnect Block (4 Terminal)
4plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
5cap, terminal (uses 310222 or 310223 pin terminal)
6Disconnect Block, Female
7Harness, Wiring (Connector (11))
8Harness, Wiring (Connector (6))
13WPW10339879 Whirlpool Wire Tie
16Harness, Interlock
20Grease
20Spacer-Oven Door Glass (Lt. or Rt.)
20WPL 591014
20WP75614 Whirlpool Connector
20WPL 308500
20Rotisserie Kit
20WPL 799351
20Leveler (Thinner) (2oz.)
20261900 Whirlpool Microwave Spray
20Touch-Up, Oven
20Tech Sheet
20Use & Care Guide
20Installation Instructions
20Rack, Meat (Micro)
20Cookbook
20WPL 309600
20Browning Tray (Micro)
20WPL 884007
201
20Wire (14 Ga. 200 c Brown)
20Wire, 25` Roll (Black 14 Ga.)
20WPW10208653 Whirlpool Insulation
20WPL 799832
20511873 Whirlpool Refrigerator Paint
20350942 Whirlpool Spray Paint
20Receptacle, Latching (2-Way) (Uses Terminal 94614)
20Golden Harvest
2072110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
20WP72107 Whirlpool Touchup
2072017 Whirlpool Appliance Touch-Up Paint White
20350956 Whirlpool Spray Assembly
20Wire, 25` Roll (Red 14 Ga.)
20Wire, 25“ Roll (White 14 GA.)
20285006 Whirlpool Spray
2018 Ga. 80~c Rating (Red)
20Wire (12 Ga. 150 c Black)
20Wire (14 Ga. 150 c Yellow)
20Wire (14 Ga. 150 c Orange)
20Wire (14 Ga. 150 c Green)
20Wire (14 Ga. 150 c Brown)
20Wire (14 Ga. 150 c Blue)
20WP261869 Whirlpool Microwave Paint
20242831 Whirlpool Oven Wire
20WP482338 Whirlpool Refrigerator Adhesive
2072032 Whirlpool Touch Up Paint Black
20350930 Whirlpool White Spray Paint
