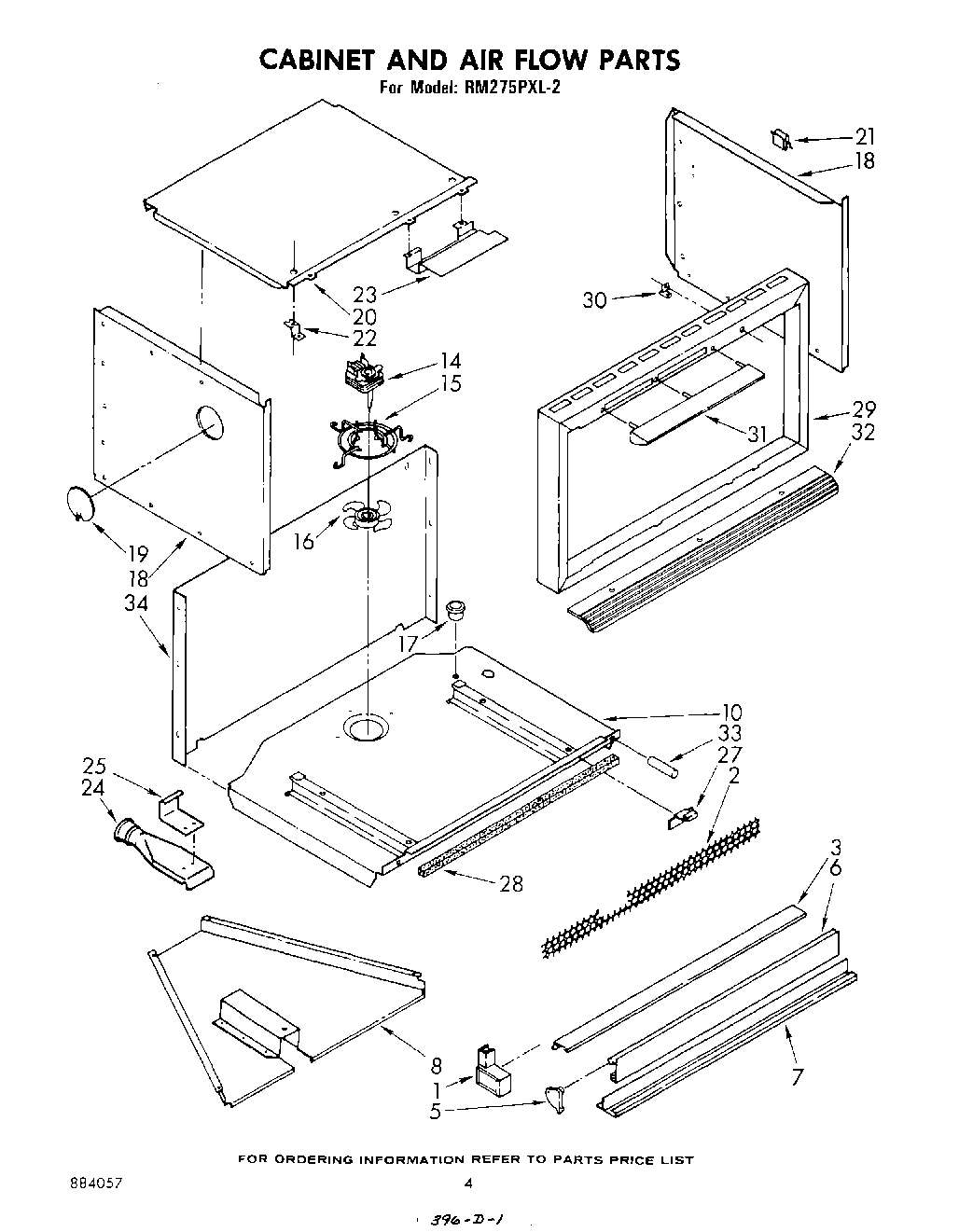

RM275PXL2 03 – CABINET AND AIR FLOW

Products

Position	Product
1	Screw (2)
1	End Cap, L.H.
1	End Cap, R.H.
2	Trim, Oven Vent
3	Trim, Top
3	Screw
5	End Trim, Vent (Right Side)
5	End Trim, Vent (Left Side)
6	Door, Vent
7	Trim, Bottom
7	Panel, Side L.H. (Screw, 10A x 1/2 (2))
7	Screw, 10-32 x 1/2
8	WPL 329829
10	Support Plate
14	Motor, Fan (Alternate)
14	Motor Fan (Alternate)
15	Nut, Hex 6-32 (2)
15	Mount, Fan Motor
16	Blade, Fan
17	Bushing, Wire
18	Side Panel, R.H.
18	Side Panel, L.H.
19	Cover, Light
20	Panel, Top
21	Clip (2)
22	Bracket, Support
23	Probe, Shield
24	Vent Tube
25	Support, Vent Tube
25	Screw,
27	Bracket, Front Support
27	Screw
28	Seal Foam
29	Frame, Outer
30	Screw, 10A x 1/2 (2) (Black)
30	Bracket, Control Panel Mounting
31	WPL 309499
31	Pushnut, Ziptwist (3)
32	Hood, Lower Vent
32	WP488627 Whirlpool Refrigerator Screw
33	Silicone Rubber Gasket (For Key 26)
33	Screw, 10A x 1-5/8 (2)
34	Cover, Rear
34	WP308685 Whirlpool Microwave Screw
