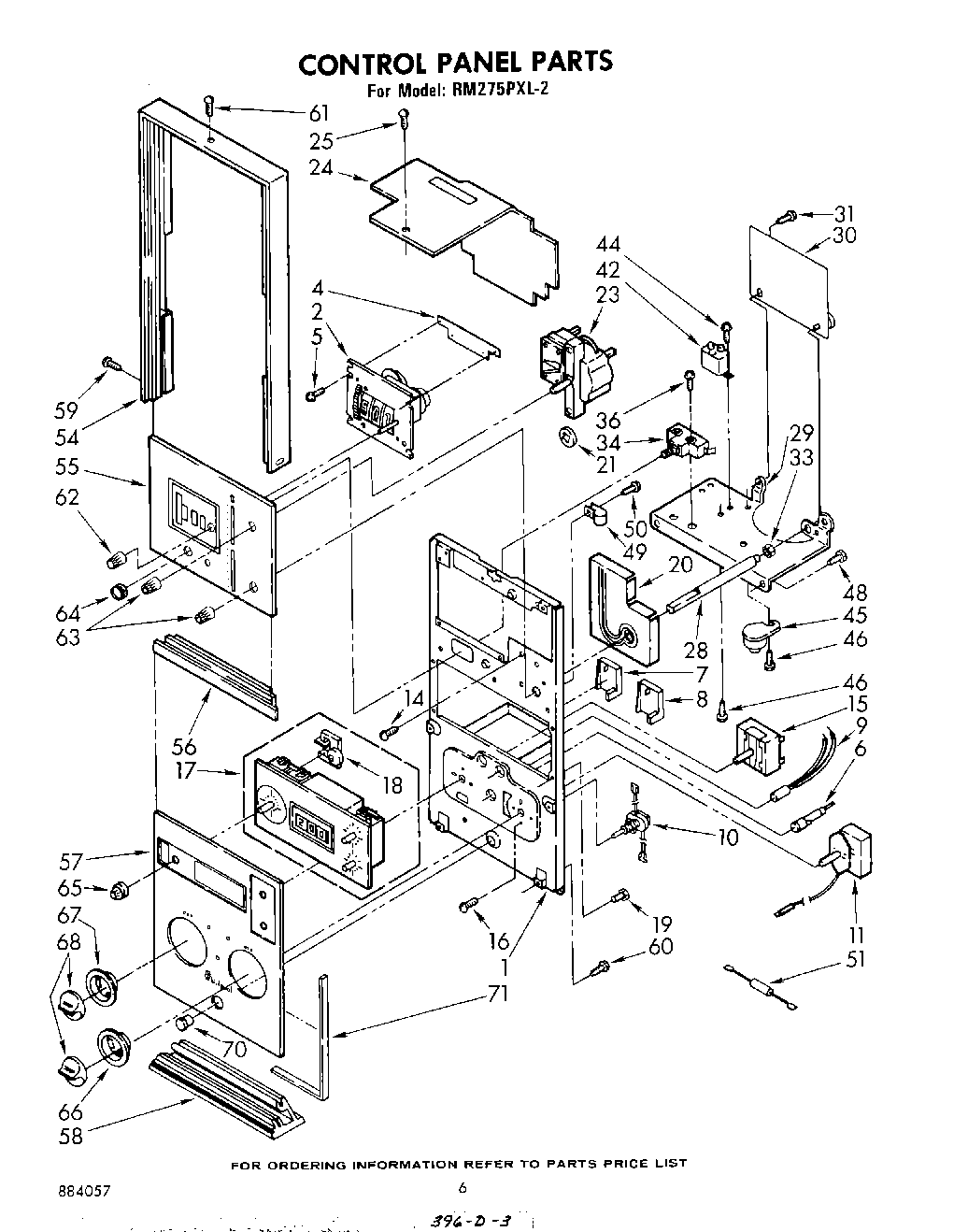

RM275PXL2 04 – CONTROL PANELadmin2025-04-26T12:07:29+00:00RM275PXL2 04 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Bracket, Control Mounting |
| 2 | Timer, Digital (Microwave) |
| 4 | WPL 311224 |
| 4 | panel, top (screw, 10a x 3/8 (3)) |
| 6 | Indicator Light |
| 7 | Switch, Broil |
| 8 | WPL 311585 |
| 9 | Light, Indicator 250V (6) |
| 10 | Support-Storage Drawer (Lt. or Rt.) |
| 11 | Thermostat (Lower Oven) |
| 14 | screw, 6-32 x 1/4 (2) |
| 15 | Selector Switch |
| 16 | Screw, 8-32 x 3/16 (2) |
| 17 | Timer, Digital (Includes Illus. 29) |
| 18 | Motor, Timer |
| 19 | Nut, Aluminum (4) |
| 20 | Indicator, Information Control |
| 21 | Clip, Push-On (3) |
| 23 | Indicator, Temperature |
| 24 | Shield Assembly |
| 28 | Shaft, Potentiometer |
| 29 | Bracket, P.C. Board |
| 30 | Oven Thermostat |
| 31 | WPL 309080 |
| 33 | Palnut |
| 36 | Screw |
| 42 | Relay, Latching (Alternate) |
| 44 | WP90767 Whirlpool Screw |
| 45 | WPL 310351 |
| 46 | Screw |
| 49 | WP308605 Whirlpool Refrigerator Clamp |
| 50 | WP965173 Whirlpool Dishwasher Screw |
| 51 | Resistor & Terminal Assembly |
| 54 | Frame, Control Panel |
| 55 | Panel, Control (Upper) |
| 56 | Splice Panel |
| 57 | Control Panel, Glass |
| 58 | Bottom Cap, Control Panel |
| 59 | NAMEPLATE |
| 60 | WP486754 Whirlpool Compactor Screw |
| 61 | Screw |
| 62 | Knob, Digital |
| 63 | WP688805 Whirlpool Spring Clip |
| 63 | Knob, Assembly (2) |
| 64 | SWITCH, PUSH-TO-START SWITCH, PUSH-TO-START |
| 65 | WPL 312808 |
| 66 | Escutcheon, Thermostat |
| 67 | Screw, |
| 67 | WP311068 Whirlpool Dial Knob Black |
| 68 | WP3150371 Whirlpool Control Knob |
| 70 | bezel, switch (2) |
| 71 | Support-Top Burner |
