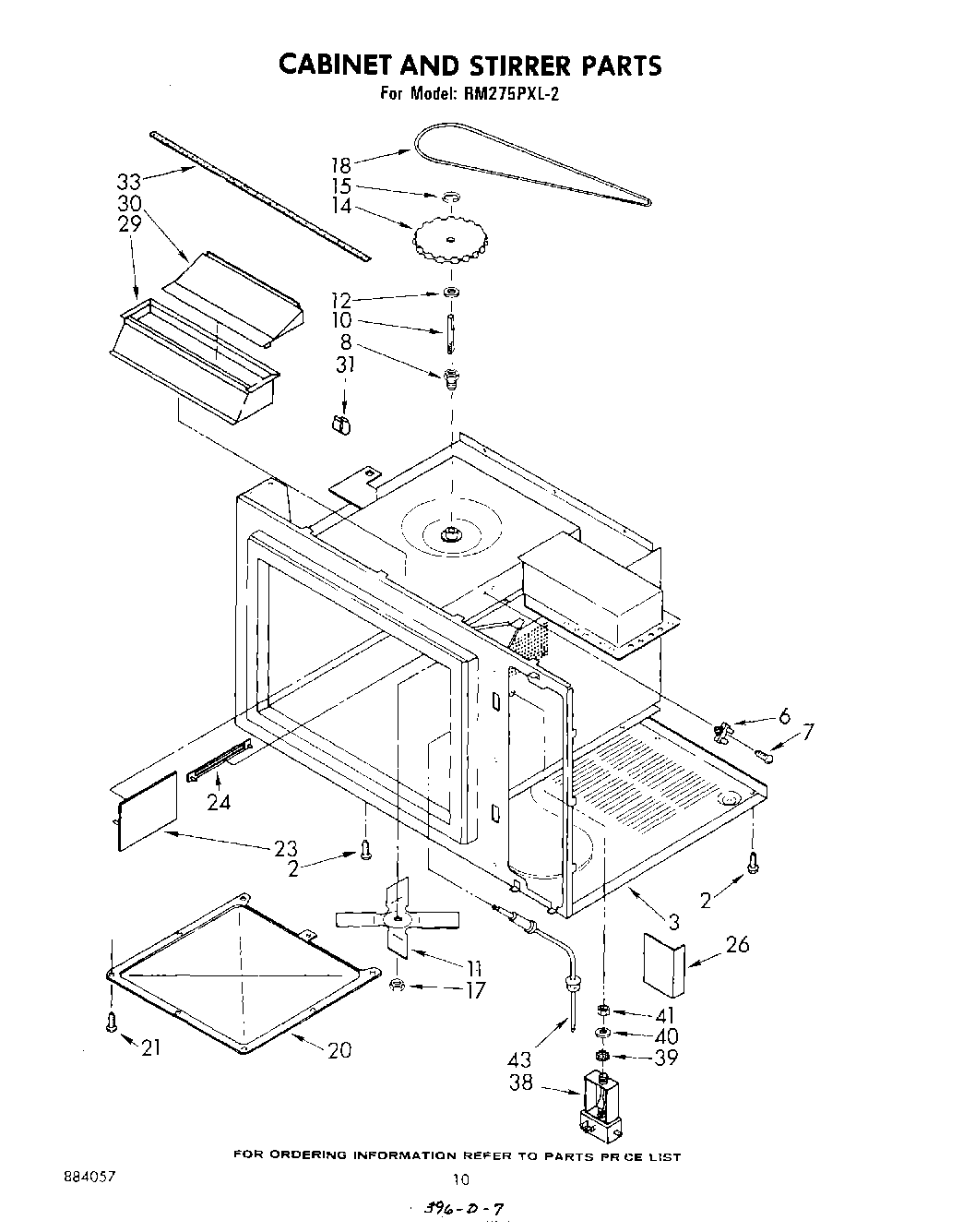

RM275PXL2 06 – CABINET AND STIRRER

Products

Position	Product
2	WP308685 Whirlpool Microwave Screw
3	Base, Cabinet (Not Serviceable)
6	Fuse, Thermal
7	screw
8	Bushing, Stirrer
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
14	Pulley, Stirrer Blade
15	``E`` Ring
17	WP487939 Whirlpool Refrigerator Nut
18	Belt, Drive
20	Cover, Stirrer
21	Fastener (2)
23	Shield, Exhaust Probe
24	Cover, Rivet
26	Shield, Exhaust
29	Baffle, Air Exhaust
30	Air Deflector
31	Clip, Air Cover (3)
33	Seal, Light
38	Jack, Probe
39	Lockwasher
40	Washer
41	Nut
43	Temperature Probe & Plug
