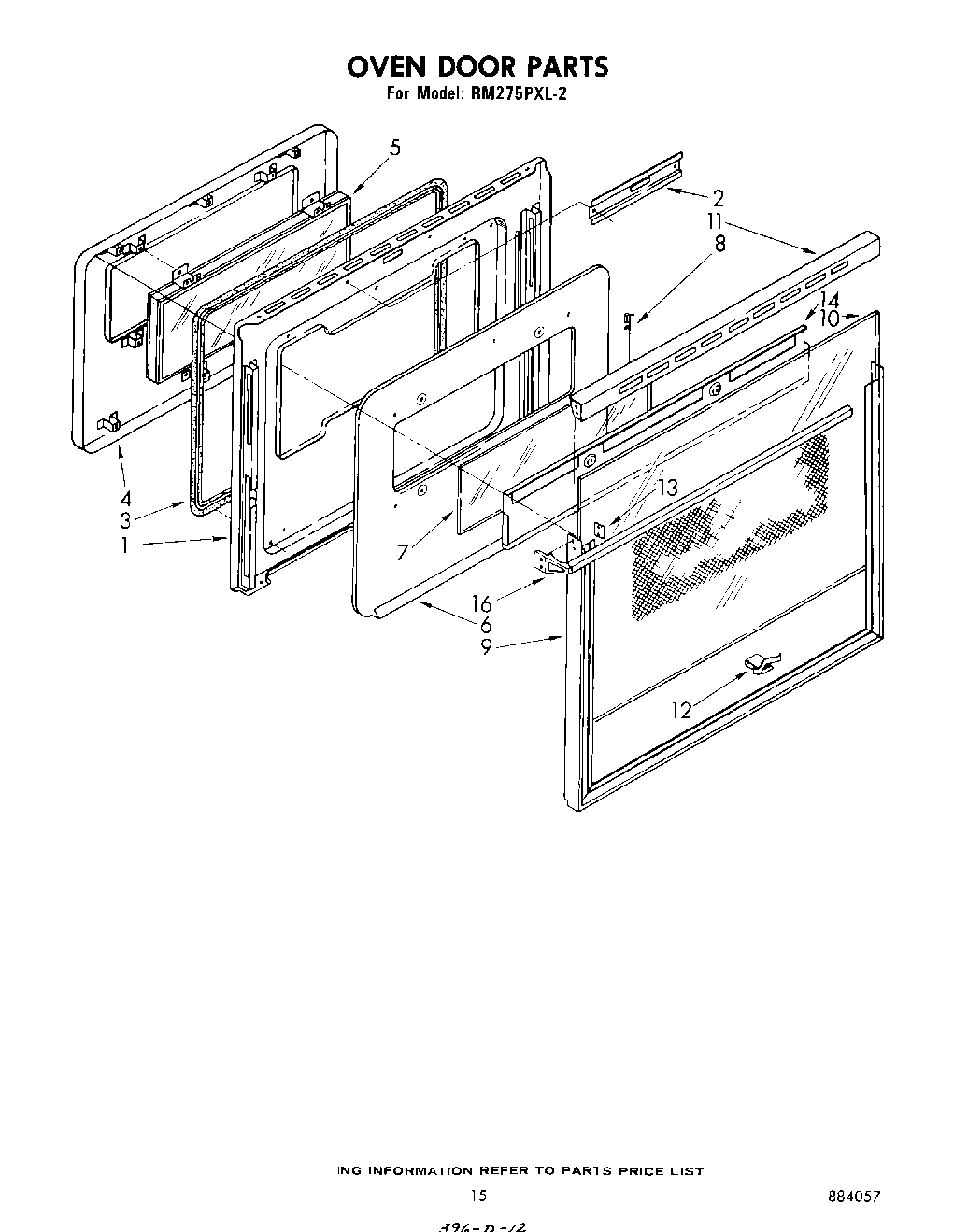

RM275PXL2 09 – OVEN DOOR

Products

Position	Product
1	Screw (3)
1	Liner, Door
2	Screw (2)
2	Channel, Latch
3	Seal, Fiberglass
4	Panel, Inner
5	Window Package
6	Retainer, Insulation
6	WP308685 Whirlpool Microwave Screw
7	Glass (6.81“ x 18.31“)
8	Retainer, Glass (2)
9	frame, door 30“
10	Glass, Outer
11	Top, Door Frame
11	Screw, 10A x 1/2 (2) (Black)
12	clip, glass (10)
13	screw (3)
14	WP90296 Whirlpool Clip
14	Baffle, Heat
16	WP912618 Whirlpool Dishwasher Screw
16	Handle, Oven Door
