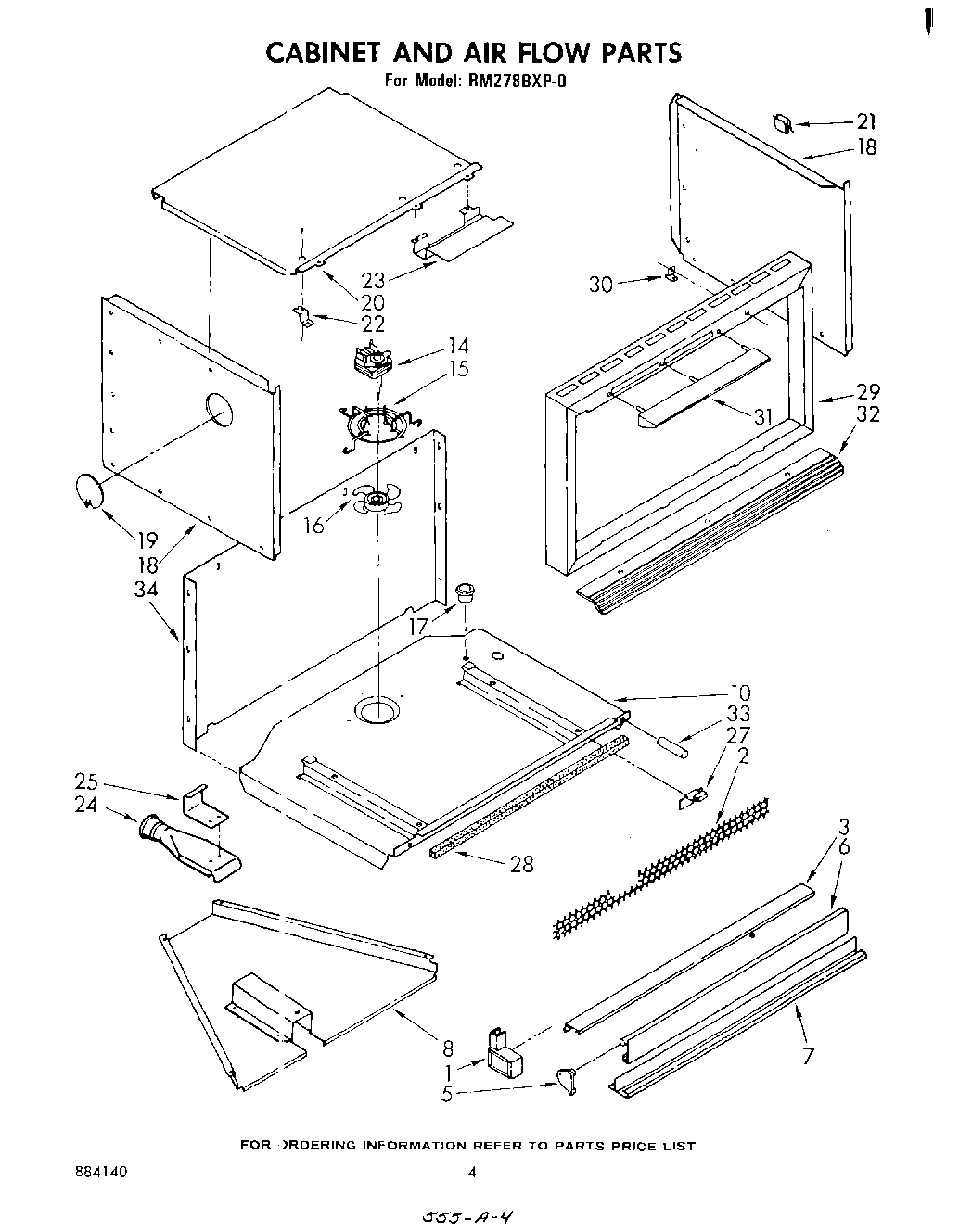

RM278BXP0 03 – CABINET AND AIRFLOWadmin2025-04-26T12:08:42+00:00RM278BXP0 03 – CABINET AND AIRFLOW
Products
| Position | Product |
|---|
| 1 | End Cap, L.H. |
| 1 | End Cap, R.H. |
| 2 | Trim, Oven Vent |
| 3 | Screw |
| 3 | Trim, Top |
| 5 | End Trim, Vent (Right Side) |
| 5 | End Trim, Vent (Left Side) |
| 6 | Door, Vent |
| 7 | Trim, Bottom |
| 7 | Panel, Side L.H. (Screw, 10A x 1/2 (2)) |
| 7 | Screw, 10-32 x 1/2 |
| 8 | WPL 329829 |
| 10 | Support Plate |
| 14 | Motor Fan (Alternate) |
| 14 | Motor, Fan (Alternate) |
| 14 | Motor Fan |
| 14 | Nut, Hex 6-32 (2) |
| 15 | Mount, Fan Motor |
| 16 | Blade, Fan |
| 17 | Bushing, Wire |
| 18 | Side Panel, R.H. |
| 18 | Side Panel, L.H. |
| 19 | Cover, Light |
| 20 | Panel, Top |
| 21 | Clip (2) |
| 21 | Clip |
| 22 | Bracket, Support |
| 23 | Probe, Shield |
| 24 | Vent Tube |
| 25 | Support, Vent Tube |
| 25 | Screw, |
| 25 | WP308685 Whirlpool Microwave Screw |
| 27 | Bracket, Front Support |
| 28 | Seal Foam |
| 29 | Frame, Outer |
| 30 | Screw, 10A x 1/2 (2) (Black) |
| 30 | Bracket, Control Panel Mounting |
| 31 | WPL 309499 |
| 31 | Pushnut, Ziptwist (3) |
| 32 | WP488627 Whirlpool Refrigerator Screw |
| 32 | Hood, Lower Vent |
| 33 | Screw, 10A x 1-5/8 (2) |
| 33 | Silicone Rubber Gasket (For Key 26) |
| 34 | Cover, Rear |
