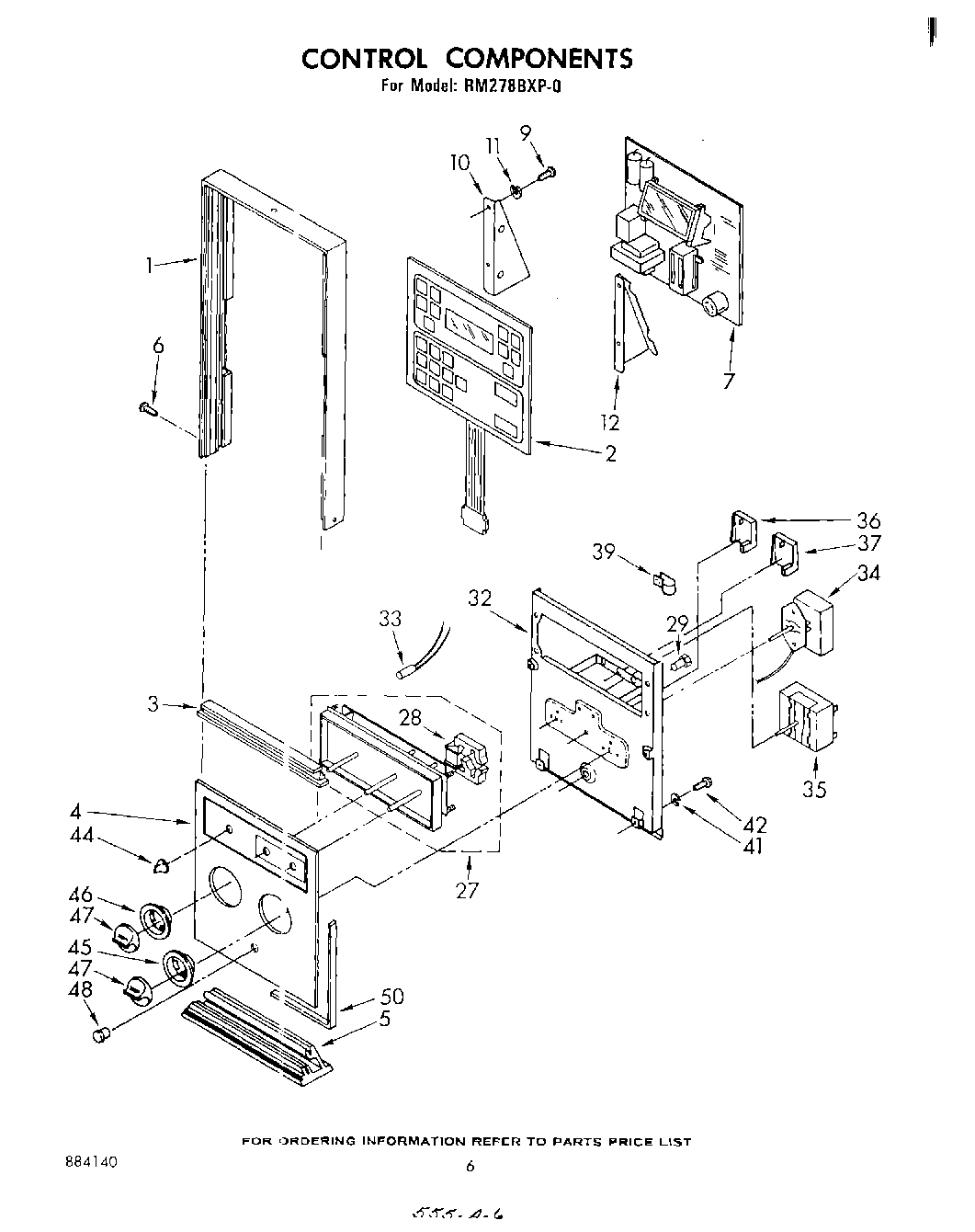

RM278BXP0 04 – CONTROL

Products

Position	Product
1	Frame, Control Panel
2	Membrane, Switch
3	Splice Panel
4	Control Panel, Glass
5	Bottom Cap, Control Panel
6	NAMEPLATE
7	Board, Power Control
10	Bracket, P.C. Board
12	Bracket, P.C. Board
27	Timer
28	Motor, Timer
29	Nut, Aluminum (4)
32	SCREW
32	Screw
32	Bracket, Control Mounting
33	Indicator Light 250V (3)
34	Thermostat, Oven (Lower)
34	screw, 6-32 x 1/4 (2)
35	Selector Switch
35	Screw, 8-32 x 3/16 (2)
36	Switch, Broil
37	WPL 311585
39	WP965173 Whirlpool Dishwasher Screw
39	screw
39	WP308605 Whirlpool Refrigerator Clamp
41	Lockwasher
42	WP313808 Whirlpool Screw
44	WP3169181 Whirlpool Knob
44	Spring (3)
45	Escutcheon, Thermostat
46	Screw,
46	WP311068 Whirlpool Dial Knob Black
47	WP3150371 Whirlpool Control Knob
48	Bezel Switch (1)
50	Support-Top Burner
