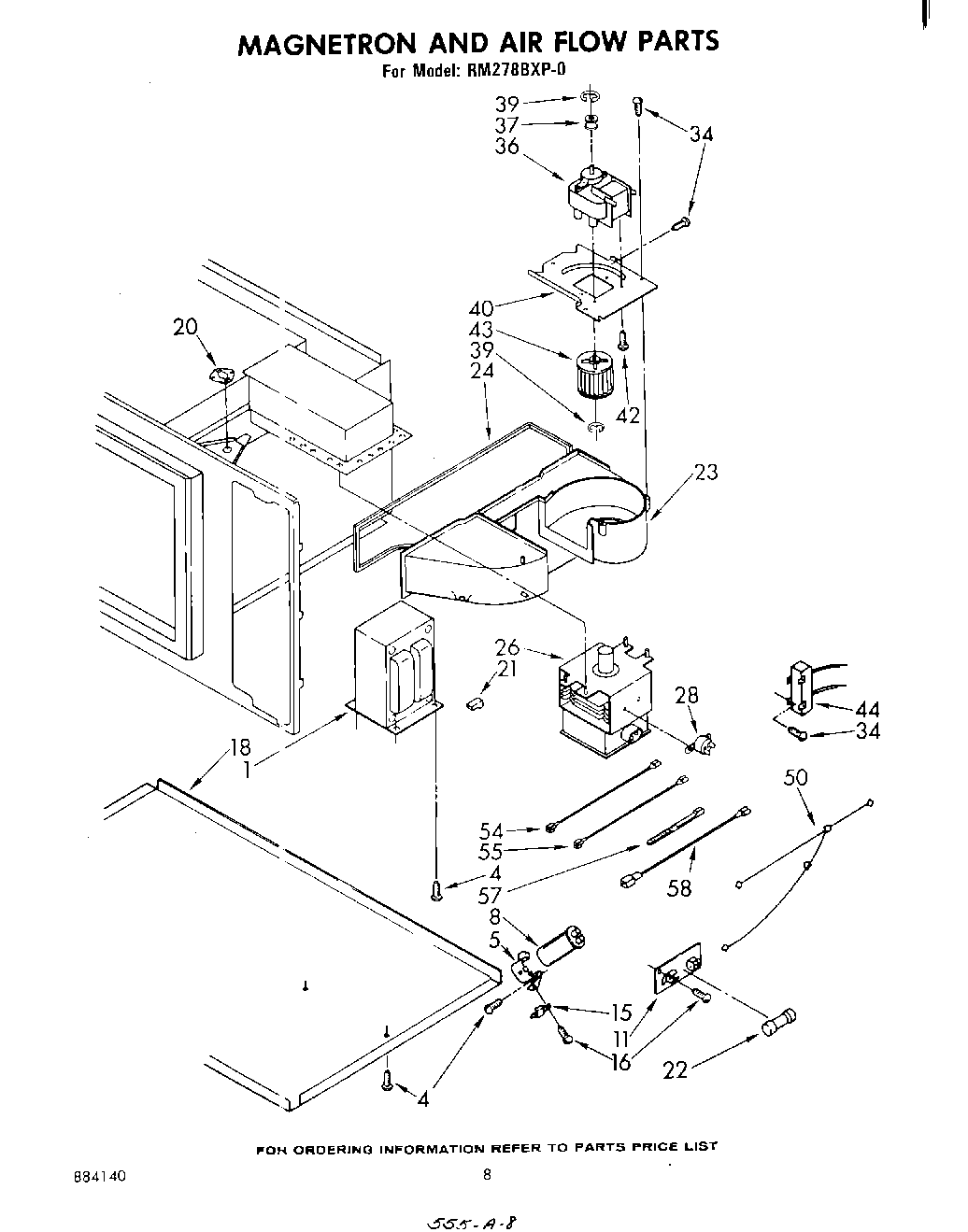

RM278BXP0 05 – MAGNETRON AND AIRFLOW

Products

Position	Product
1	Transformer (Alt.)
1	Transformer
1	Transformer (Alt.)
4	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5	Bracket, Capacitor
8	Capacitor
8	Capacitor (Alt.)
8	capacitor (alt.)
11	Block, Fuse
15	Rectifier, High Voltage
18	Base, Chassis (Not Serviceable)
20	Thermostat
20	screw
21	Housing Receptacle
22	WPW10017410 Whirlpool Fuse
23	Air Duct (Horizontal)
24	SEAL
26	Magnetron (Alt.)
26	Magnetron
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
26	Magnetron (Alt.)
28	Thermal Protector (Alt.)
28	Thermal Protector (Alt.)
28	Thermal Protector
36	Motor
36	Motor (Alt.)
36	Motor (Alt.)
37	Pulley, Motor
39	“E“ Ring
40	Bracket, Motor
42	WP486579 Whirlpool Air Conditioner Screw
43	Wheel, Blower
44	Reed Relay
44	SCREW
44	Screw, 11-16 x 1/2 Double Load Space Thread (5)
44	Screw
44	Reed Relay (Alt.)
44	Clip, Harness
44	Reed Relay (Alt.)
50	Cable, Support
54	Jumper, High Voltage (Black 6-5/16“)
55	Jumper, High Voltage Red (6-5/16“)
57	WPW10339879 Whirlpool Wire Tie
58	High Voltage Lead, Gray 6-3/4“ (2)
