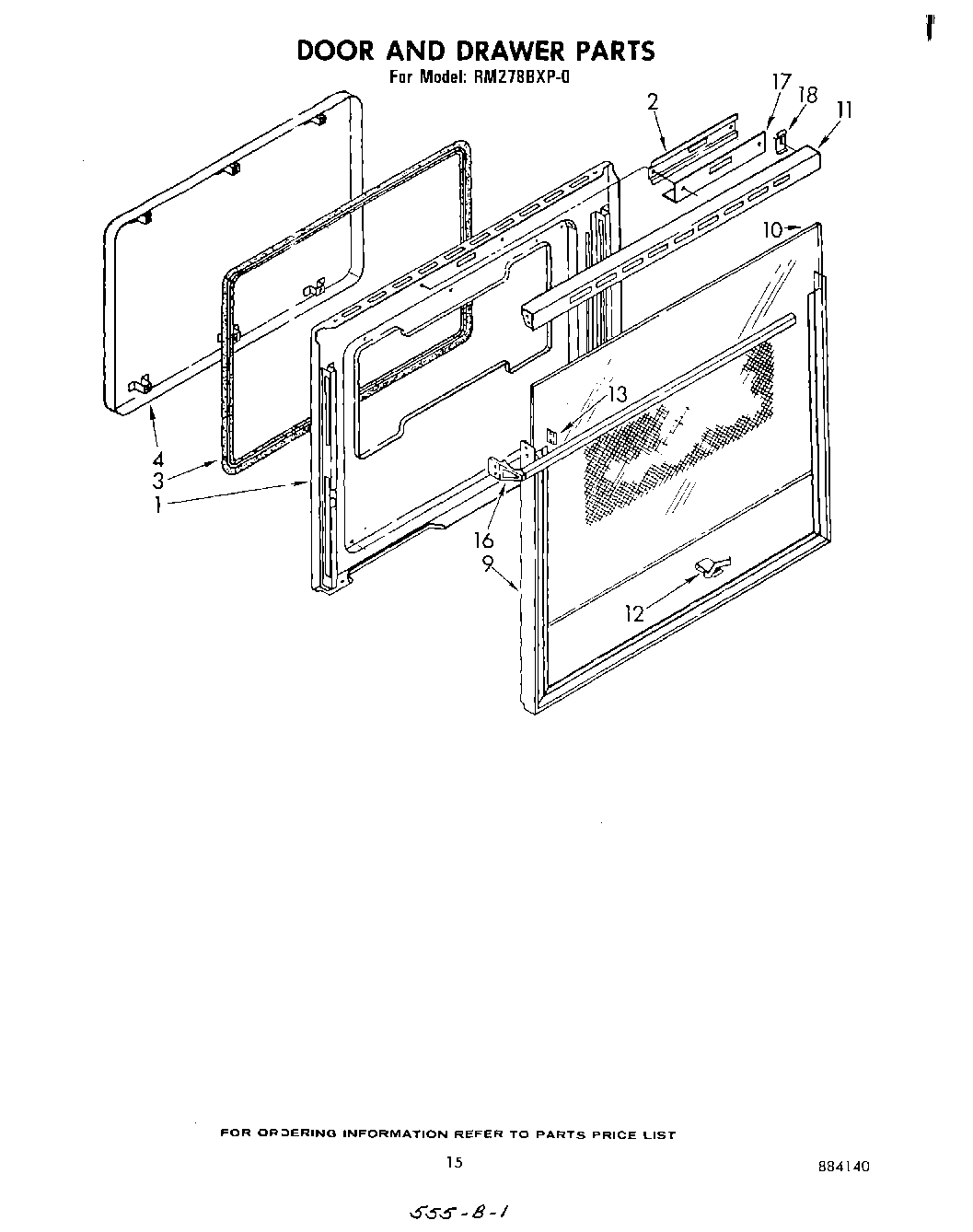

RM278BXP0 09 – DOOR AND DRAWERadmin2025-04-26T12:07:43+00:00RM278BXP0 09 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Screw (3) |
| 1 | Liner, Door |
| 2 | Channel, Latch |
| 2 | Screw (2) |
| 3 | Seal, Fiberglass |
| 4 | Panel, Inner |
| 9 | frame, door 30`` |
| 10 | Glass, Outer |
| 11 | Screw, 10A x 1/2 (2) (Black) |
| 11 | Top, Door Frame |
| 12 | clip, glass (10) |
| 13 | screw (3) |
| 13 | WP90296 Whirlpool Clip |
| 16 | WP912618 Whirlpool Dishwasher Screw |
| 16 | Handle, Oven Door |
| 17 | Shield, Insulation |
| 18 | hold down, glass (2) |
