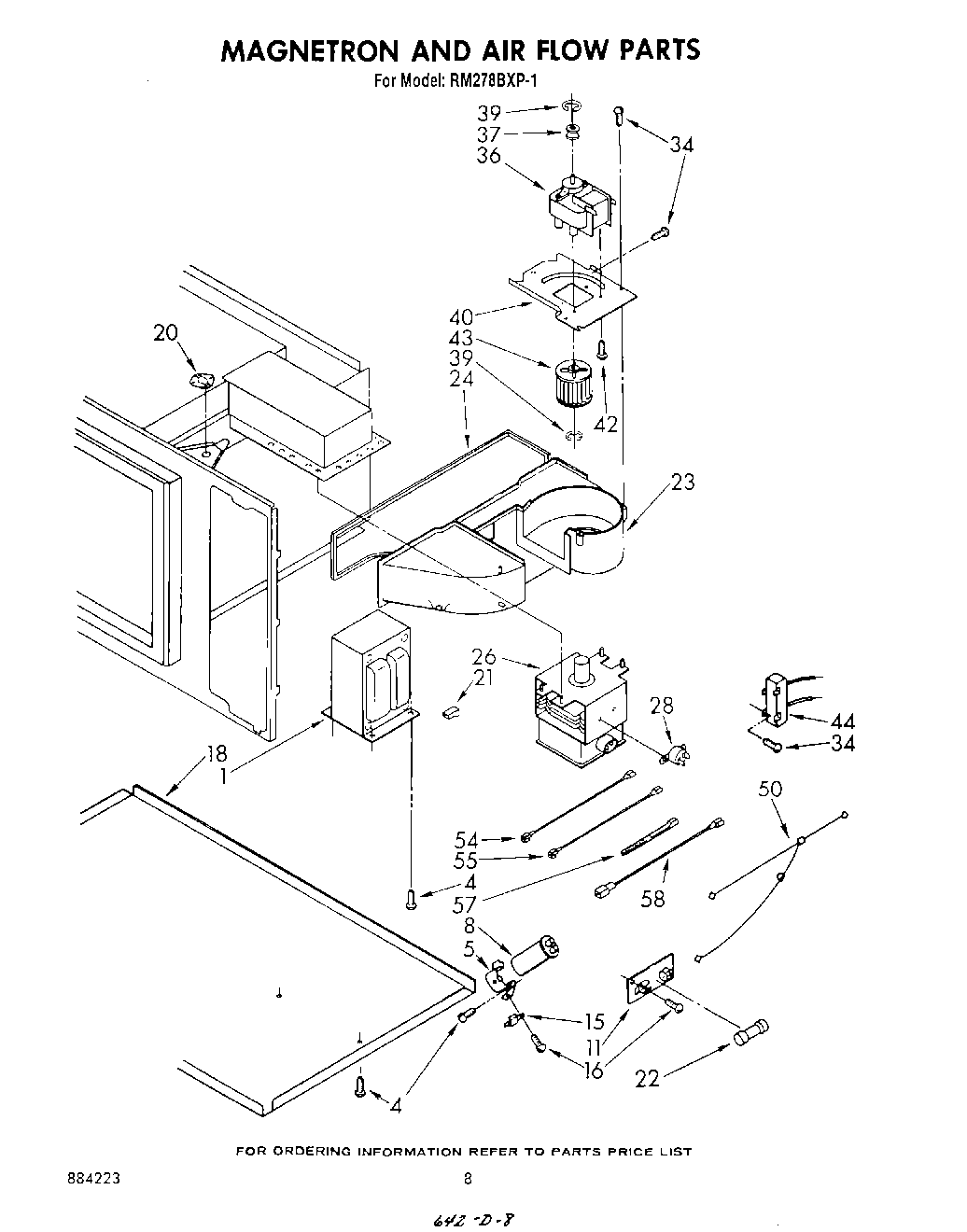

RM278BXP1 05 – MAGNETRON AND AIR FLOW

RM278BXP1 05 – MAGNETRON AND AIR FLOW

Written by

in

RM278BXP1 05 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Transformer
1Transformer (Alt.)
1Transformer (Alt.)
4Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5Bracket, Capacitor
8capacitor (alt.)
8Capacitor
8Capacitor (Alt.)
11Block, Fuse
15rectifier, high voltage
15rectifier, high voltage (alt.)
18Base, Chassis (Not Serviceable)
20screw
20Thermostat
21Housing Receptacle
22WPW10017410 Whirlpool Fuse
23Air Duct (Horizontal)
24SEAL
26Magnetron (Alt.)
26Magnetron
26Magnetron (Alt.)
26Magnetron (Alt.)
26Magnetron (Alt.)
26Magnetron (Alt.)
28Thermal Protector (Alt.)
28Thermal Protector
28Thermal Protector (Alt.)
36Motor
36Motor (Alt.)
36Motor (Alt.)
37Pulley, Motor
39“E“ Ring
40Bracket, Motor
42WP486579 Whirlpool Air Conditioner Screw
43Wheel, Blower
44Screw
44SCREW
44Clip, Harness
44Reed Relay
44Reed Relay (Alt.)
44Reed Relay (Alt.)
44Screw, 11-16 x 1/2 Double Load Space Thread (5)
50Cable, Support
54Jumper, High Voltage (Black 6-5/16“)
55Jumper, High Voltage Red (6-5/16“)
57WPW10339879 Whirlpool Wire Tie
58High Voltage Lead, Gray 6-3/4“ (2)
