RM278BXP1 10 – WIRING HARNESS , LITERATURE AND OPTIONAL

Products

PositionProduct
Cook
WPL LIT312880
WPL LIT313358
WPL LIT312874
WPL LIT313724
WPL LIT3147631
WPL LIT884223

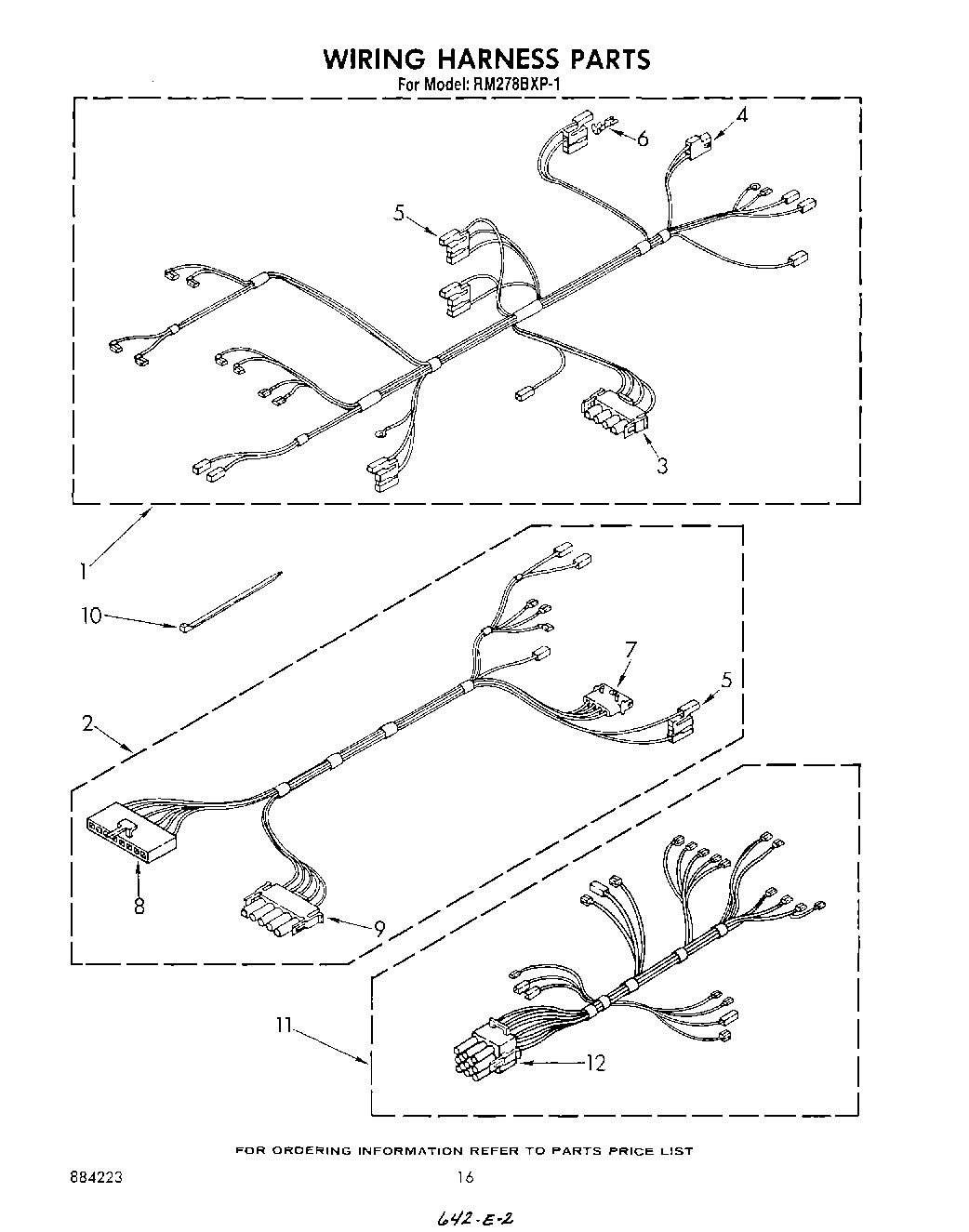

1Harness, Wiring (Main)
1Screw, 80 x 5/16
2Harness, Wiring (Control)
3Disconnect Block (4 Terminal)
4Receptacle, Latching (2-Way) (Uses Terminal 94614)
5Housing, Plug
6WP248562 Whirlpool Terminal
7Disconnect Block, Female
8Connector Housing
9WPL 311574
10WPW10339879 Whirlpool Wire Tie
11Harness, Select./Therm
12Touch-Up, Oven
121
12WPL 591014
12Rotisserie Kit
12Leveler (Thinner) (2oz.)
12Grease
12261900 Whirlpool Microwave Spray
12Plug, Male
12Golden Harvest
12WP75614 Whirlpool Connector
12Browning Tray (Micro)
12Rack, Meat (Micro)
12Wire (14 Ga. 200 c Brown)
1218 Ga. 80~c Rating (Red)
12WPW10208653 Whirlpool Insulation
12WPL 799832
12Enamel, Black (1 Qt. Uncut)
12511873 Whirlpool Refrigerator Paint
12350942 Whirlpool Spray Paint
12Golden Harvest (Uncut)
1272110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
12Almond (Uncut)
12WP72107 Whirlpool Touchup
12799344 Whirlpool Refrigerator Paint
1272017 Whirlpool Appliance Touch-Up Paint White
12350956 Whirlpool Spray Assembly
12Wire, 25` Roll (Black 14 Ga.)
12Wire, 25` Roll (Red 14 Ga.)
12Wire (12 Ga. 150 c Black)
12Wire (14 Ga. 150 c Yellow)
12Wire (14 Ga. 150 c Orange)
12Wire (14 Ga. 150 c Green)
12Wire (14 Ga. 150 c Brown)
12Wire (14 Ga. 150 c Blue)
12WP261869 Whirlpool Microwave Paint
12242831 Whirlpool Oven Wire
12WP482338 Whirlpool Refrigerator Adhesive
1272032 Whirlpool Touch Up Paint Black
12285006 Whirlpool Spray
12Wire, 25“ Roll (White 14 GA.)
12350930 Whirlpool White Spray Paint
