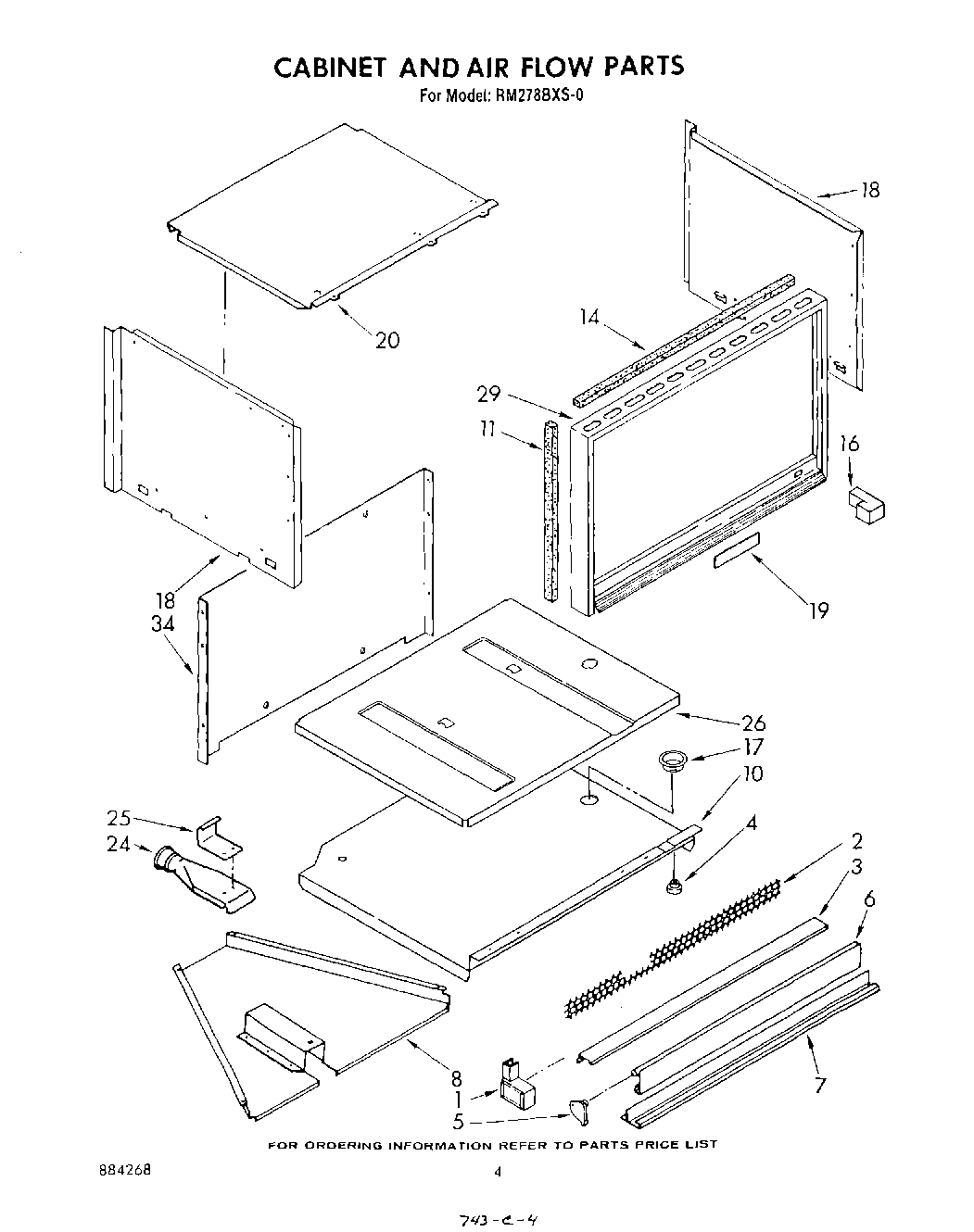

RM278BXS0 03 – CABINET AND AIRFLOW

Products

Position	Product
1	End Cap, R.H.
1	End Cap, L.H.
2	Trim, Oven Vent
3	Trim, Top
3	Screw
4	Snap Bushing
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Door, Vent
7	Trim, Bottom
7	Panel, Side L.H. (Screw, 10A x 1/2 (2))
7	Screw, 10-32 x 1/2
8	Box Air
10	Support Plate
11	WPL 3147595
14	WPL 3147596
16	Seal, Foam (2)
17	Bushing, Snap
18	Side Panel, L.H.
18	Side Panel, R.H.
19	Adhesive
20	Screw, 8-18 x 1/2 (8)
20	Panel, Top
24	Vent Tube
25	Support, Vent Tube
25	Screw,
25	WP488729 Whirlpool Refrigerator Door Screw
26	Panel, Support
29	Frame, Outer
34	Cover, Rear
