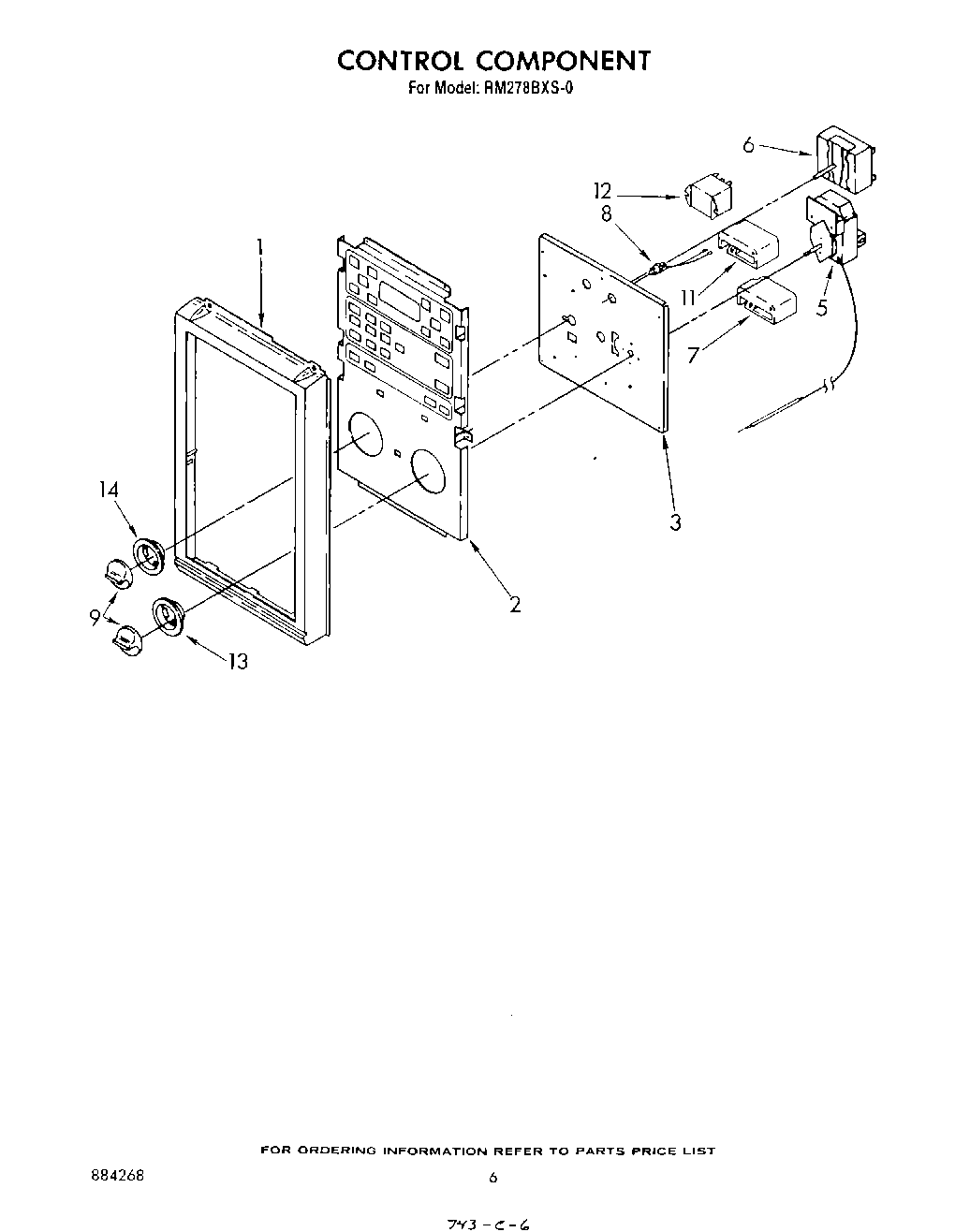

RM278BXS0 04 – CONTROL COMPONENTadmin2025-04-26T12:08:07+00:00RM278BXS0 04 – CONTROL COMPONENT
Products
| Position | Product |
|---|
| Screw |
| 1 | Frame, Control Panel |
| 2 | Module, Control |
| 2 | Module, Control |
| 2 | Module, Control |
| 3 | Bracket, Control (Mounting) |
| 5 | Thermostat |
| 5 | WP313808 Whirlpool Screw |
| 6 | Screw, 8-32 x 3/16 (2) |
| 6 | Switch, Selector |
| 7 | WPL 314211 |
| 8 | Light, Indicator (4) |
| 9 | WP3150371 Whirlpool Control Knob |
| 11 | WPL 314215 |
| 11 | Sw |
| 12 | Relay, Vent (24V, Clear) |
| 12 | Screw |
| 13 | Escutcheon, Thermostat |
| 14 | WP311068 Whirlpool Dial Knob Black |
| 14 | Screw, |
