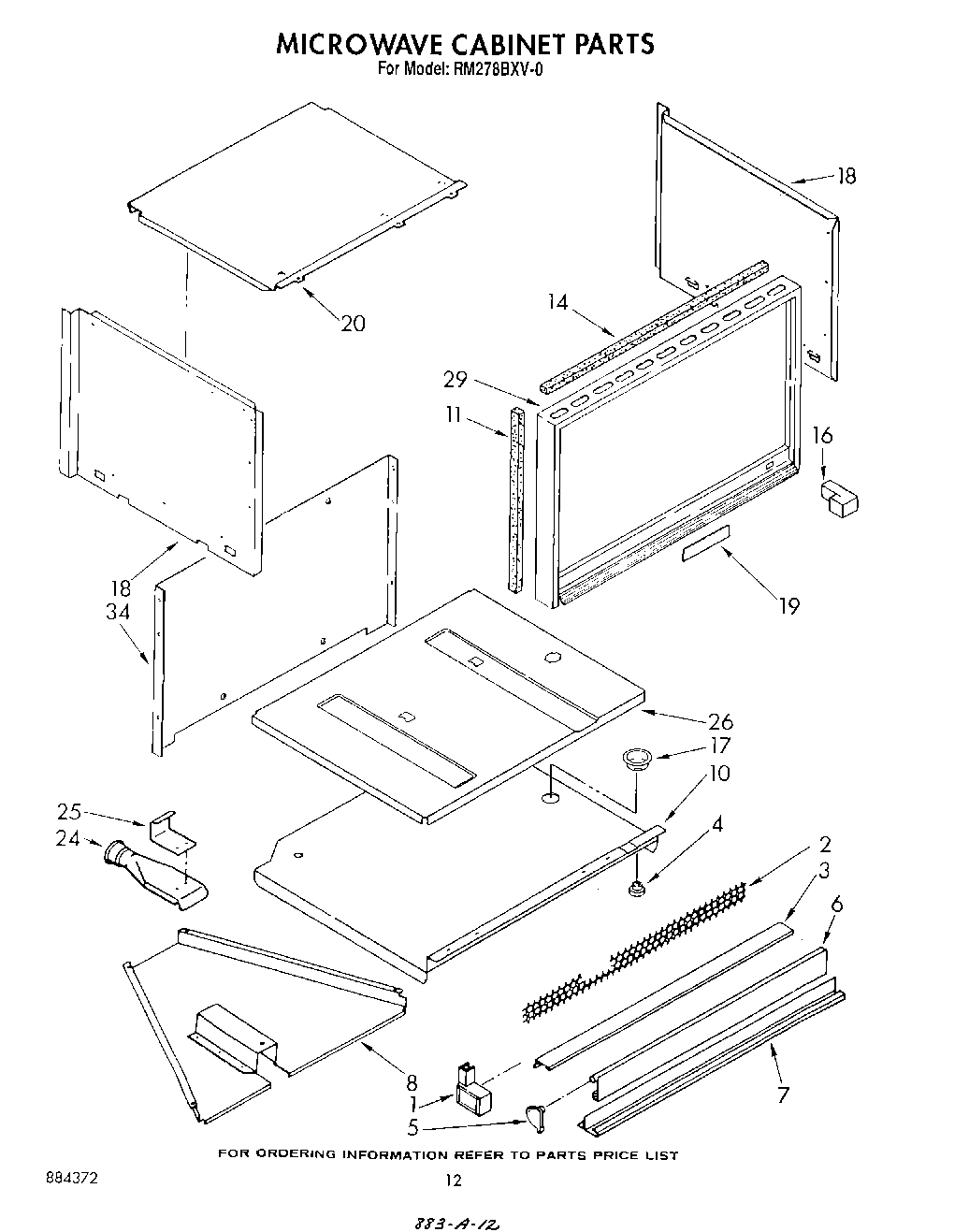

RM278BXV0 08 – MICROWAVE CABINETadmin2025-04-26T12:08:05+00:00RM278BXV0 08 – MICROWAVE CABINET
Products
| Position | Product |
|---|
| 1 | End Cap, R.H. |
| 1 | End Cap, L.H. |
| 2 | Trim, Oven Vent |
| 3 | Trim, Top |
| 3 | Screw |
| 4 | Snap Bushing |
| 5 | End Trim, Vent (Right Side) |
| 5 | End Trim, Vent (Left Side) |
| 6 | Door, Vent |
| 7 | Trim, Bottom |
| 7 | Screw, 10-32 x 1/2 |
| 7 | Panel, Side L.H. (Screw, 10A x 1/2 (2)) |
| 8 | Box Air |
| 10 | Support Plate |
| 11 | WPL 3147595 |
| 14 | WPL 3147596 |
| 16 | Seal, Foam (2) |
| 17 | Bushing, Snap |
| 18 | Side Panel, R.H. |
| 18 | Side Panel, L.H. |
| 19 | Adhesive |
| 20 | Panel, Top |
| 20 | Screw, 8-18 x 1/2 (8) |
| 24 | Vent Tube |
| 25 | Support, Vent Tube |
| 25 | WP488729 Whirlpool Refrigerator Door Screw |
| 25 | Screw, |
| 26 | Panel, Support |
| 29 | Frame, Outer |
| 34 | Cover, Rear |
