RM278BXV1 02 – OVEN CHASSIS

RM278BXV1 02 – OVEN CHASSIS

Written by

in

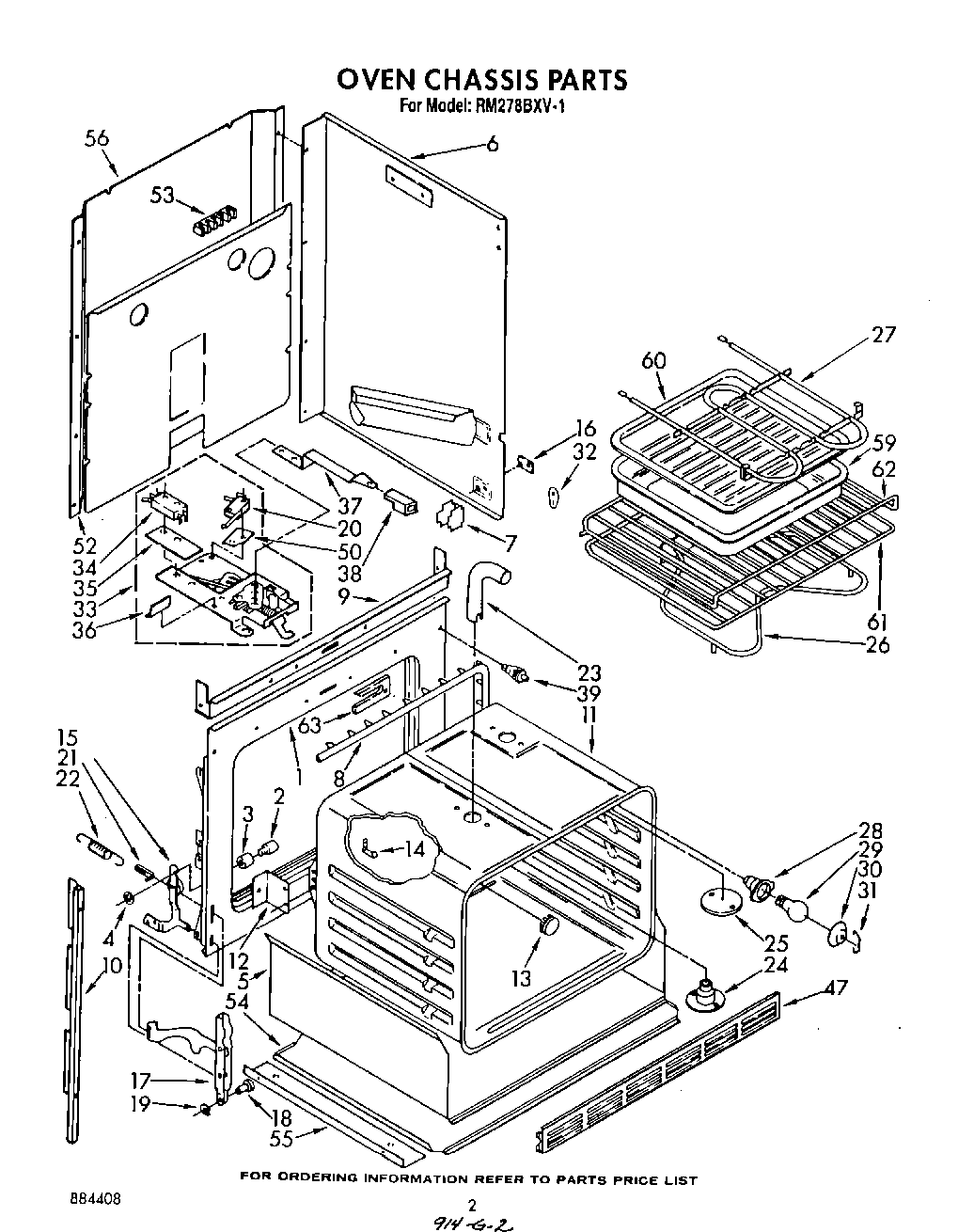

RM278BXV1 02 – OVEN CHASSIS

Products

Position	Product
	WPL LIT313358
	WPL LIT884408
	WPL LIT3147571
	WPL LIT311985
	WPL LIT312900
	WPL LIT312902
	WPL LIT3147287
	Screw (10-12 x .875)
	WP488729 Whirlpool Refrigerator Door Screw
	WPL LIT3149025
	WPL LIT3147573
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Left Side)
6	Side Wrapper (Right Side)
7	Support, Side Wrapper (4)
8	WP313808 Whirlpool Screw
8	Seal, Door
9	Baffle, Top Insulation
10	Side Trim (Left Side)
10	Side Trim (Right Side)
11	Oven (30“ Pyro)
12	SCREW
12	Bracket, Oven Mounting (2)
13	Plug Button
14	98005642 Whirlpool Clip
15	Hinge Ear, R.H.
15	Hinge Ear, L.H.
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	Screw (2)
20	Switch, Lock
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	Spring, Oven Door (2)
23	Tube, Vent
24	Eliminator, Smoke
25	WPL 310662
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	Socket, Oven Light (Alt.)
28	Socket, Oven Light
28	Socket, Oven Light (Alt.)
29	RANGE ONLY 40W 120V APPL BULB
30	Cover, Light
31	Retainer, Light
32	WPL 311982
33	Screw (3)
33	Latch Assembly
34	Screw
34	Safety Switch
35	Insulator, Switch
36	Shield, Latch
36	Screw
37	Screw
37	Latch, Handle
38	Screw, 80 x 5/16
38	Knob, Latch Handle
39	Switch, Door
47	Grill, Bottom (Screw (3))
47	Grill, Bottom
50	WPL 3147864
52	Panel, Back (2)
53	WPL 3147001
53	WP8203546 Whirlpool Terminal Block
53	WP112432 Whirlpool Nut Assembly
54	WPL 310458
55	Angle, Support (2)
56	Cover, Rear
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	WPL 308173
62	WPL 308172
63	WPL 310433
63	WPL 3149328
63	WPL 309080
63	WPL 310434
63	Shield, Air
